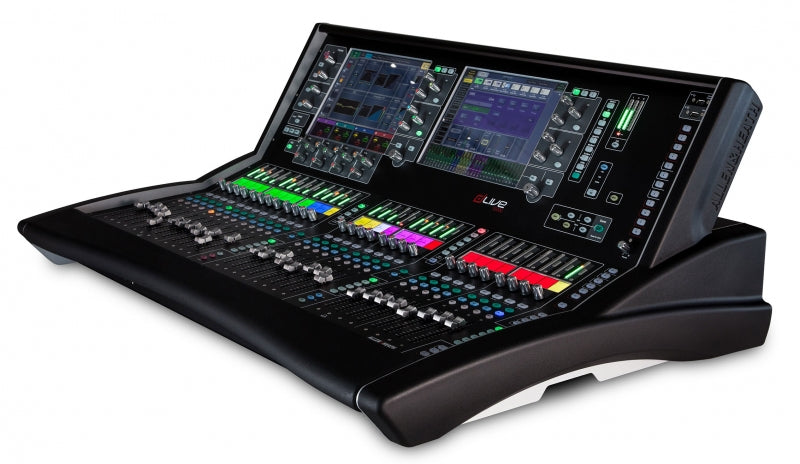

Allen & Heath dLive S5000 Surface

It features 28 faders over 6 layers, dual 12 capacitive touchscreens and the innovative Harmony UI for the fastest workflow in the industry.

Created for professional touring, broadcast and prestige installations, dLive S Class has earned its reputation for audio quality and robustness in the most complex and high-profile applications.

• 28 Faders with 6 Layers: Provides access to 168 assignable fader strips for comprehensive control over inputs and mixes

• Dual 12" Capacitive Touchscreens: Offers intuitive touch control with familiar gestures like pinch, swipe, drag, and drop, enhancing workflow efficiency

• Harmony User Interface: Integrates the touchscreens with physical controls, allowing seamless interaction between screen and hardware for a cohesive mixing experience

• 26 Assignable SoftKeys: Enables customization of frequently used functions for quick access during live performances or recording sessions

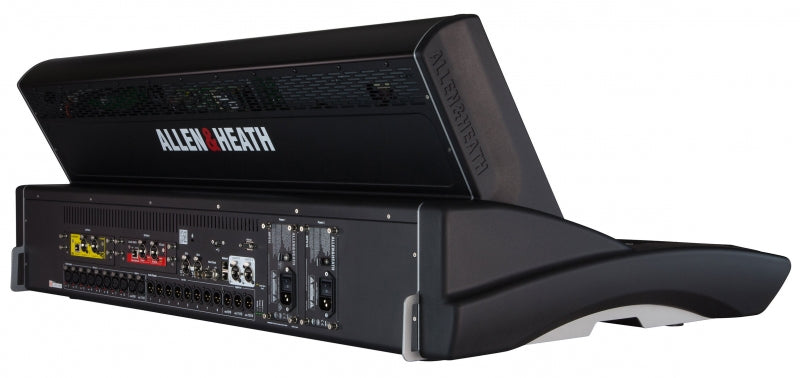

• Built-in Audio I/O: Includes 8 XLR mic/line inputs, 8 XLR line outputs, 2 AES3 digital stereo inputs, and 3 AES3 digital stereo outputs, providing versatile connectivity options

• Dual Redundant GigaACE Gigabit Link: Ensures reliable connection to the MixRack with redundancy for increased system stability

• Redundant DX Link for I/O Expansion: Allows integration with additional I/O modules, expanding the system's input and output capabilities

• Dual I/O Ports: Each supports 128 channels at 96kHz, facilitating integration with various audio networking protocols and systems

• Comprehensive Metering and Daylight Visibility: Features clear visual feedback and high-visibility displays suitable for outdoor use

• Dual Redundant, Hot-Swappable Power Supply: Offers uninterrupted operation with the ability to replace power supplies without downtime

• 20 motorized faders with 6 layers, offering 120 assignable fader strips.

• 12-inch capacitive touchscreen with gesture support for intuitive operation.

• 8 XLR mic/line inputs, 8 XLR outputs, 2 stereo AES3 inputs, and 3 stereo AES3 outputs.

• Dual redundant GigaACE link to MixRack, 2 I/O ports, DX link, and Wordclock I/O.

• Supports redundant, hot-swappable power supplies; rugged chassis design for durability.
