Allen & Heath GR-4

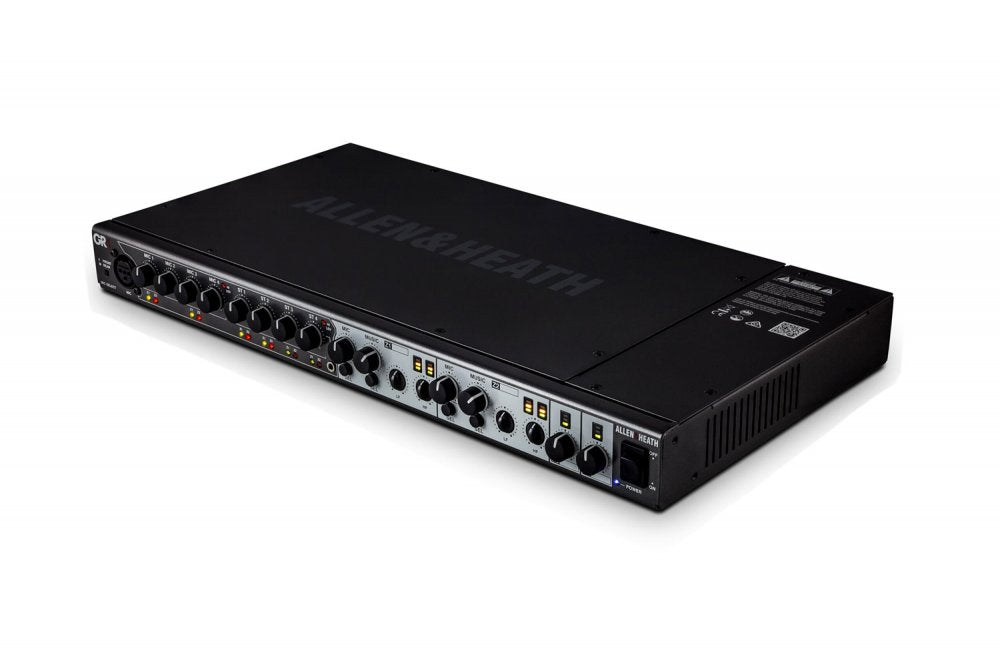

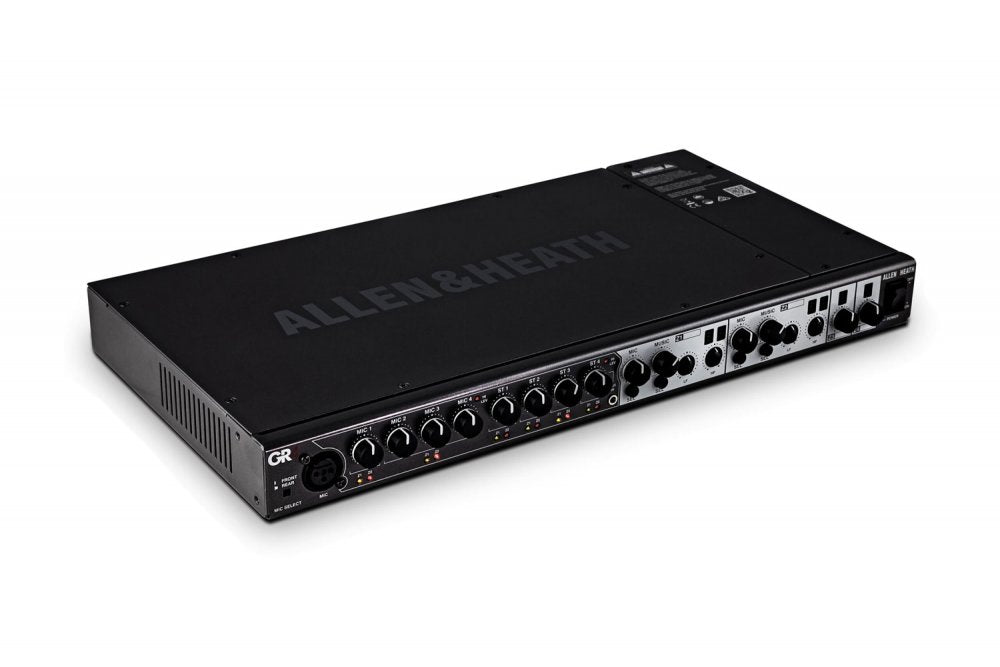

The Allen & Heath GR4 is a compact and versatile 1U zone mixer tailored for managing background music and paging in environments such as restaurants, retail stores, and hospitality venues. Designed with both installers and end-users in mind, it offers intuitive control while supporting professional audio routing needs.

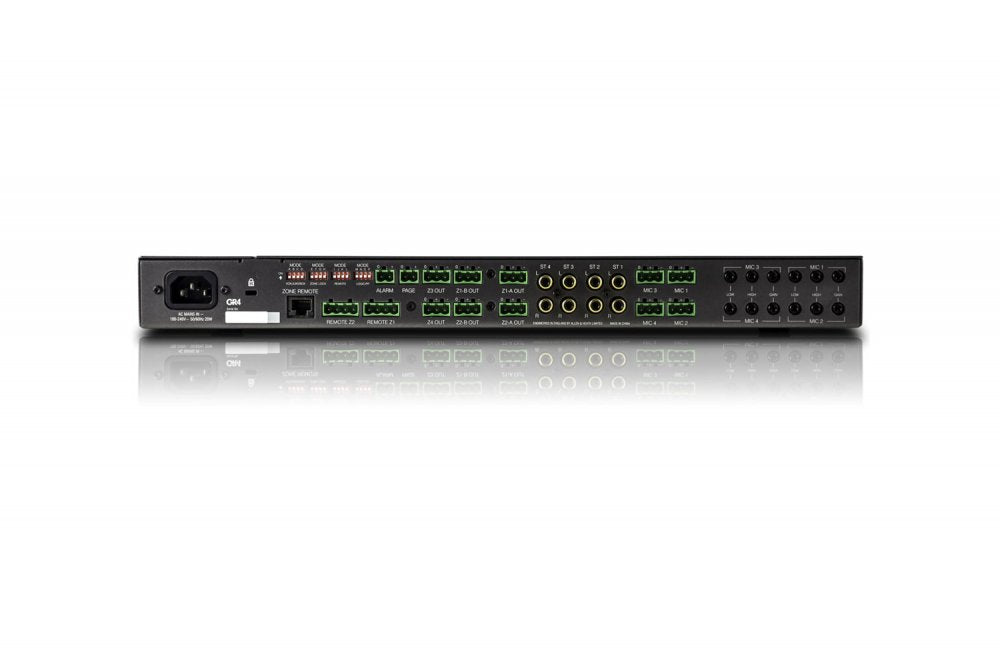

The GR4 features four mic inputs and four stereo line inputs, with a convenient front-panel XLR option for MIC 1 and a 3.5mm jack for quickly connecting portable devices. Output is handled via two stereo (or mono) zone outputs, plus two additional mono outputs, all on Phoenix connectors. This flexibility allows for independent or combined audio routing across up to four zones.

With paging and emergency input contacts, the GR4 integrates seamlessly with third-party paging and fire alarm systems. It supports multiple operational modes-such as primary/secondary mic prioritization, emergency override, and jukebox priority line input-for enhanced control in real-world scenarios.

Remote operation is easily enabled via compatible PL-14 wall plates or third-party analog controls. The PL-14 allows zone-specific or unified control over volume and source selection, with optional infrared remote functionality via the PL-5 for wireless convenience. All of this is housed in a robust unit suitable for both rack-mount and desktop use, making the GR4 an ideal hub for multi-zone audio management.

• Flexible Mic & Line Inputs: Four rear mic inputs with optional front XLR for Mic 1, plus four stereo line inputs and a front 3.5mm jack for portable devices.

• Multiple Zone Outputs: Two stereo or mono rear outputs, plus two additional mono zones with selectable source routing.

• Paging & Alarm Integration: Supports paging systems and fire alarms via dedicated contact inputs on rear Phoenix connectors.

• Remote Control Ready: Compatible with PL-14 wall controller and 3rd party analog remotes via Phoenix or RJ45 connection.

• Customizable Modes: Includes modes for primary/secondary mic priority, emergency override, and jukebox input priority.

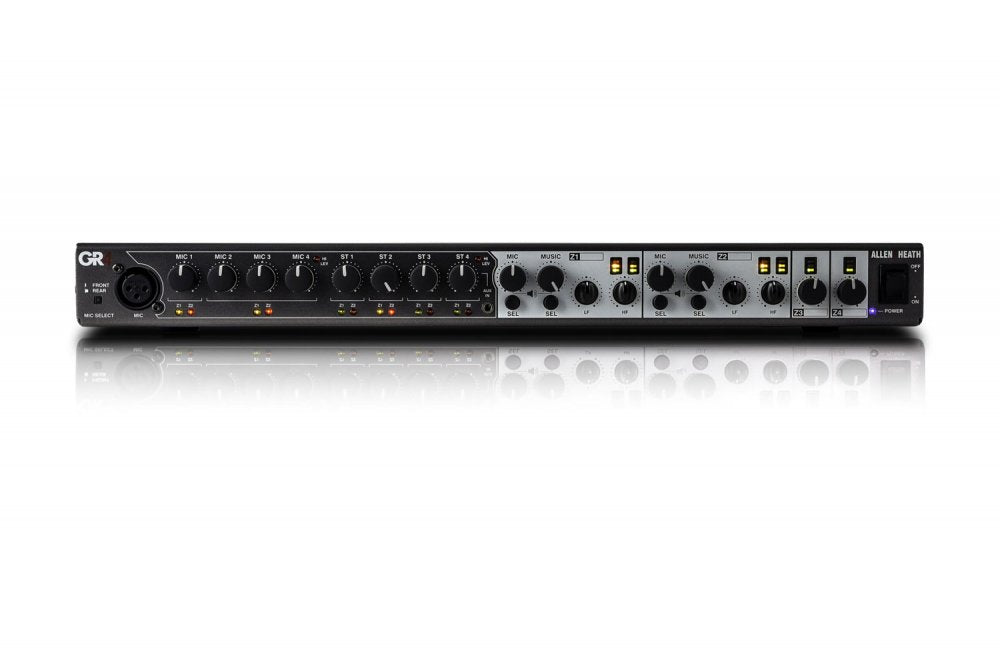

• Simple Front-Panel Access: Easy access to portable audio input and mic connection directly from the front of the unit.

• Rack or Desktop Mounting: 1U design suitable for installed or portable systems in bars, retail, hospitality, and more.

GENERAL SPECIFICATIONS:

INPUTS:

• 4x mic inputs (rear panel Phoenix connectors)

• MIC1 selectable to front panel XLR (optional)

• 4x stereo line inputs (rear panel phono RCA connectors)

• 1x front panel 3.5mm stereo mini-jack (overrides Input 4)

OUTPUTS:

• 2x stereo zone outputs (rear panel Phoenix connectors)

• Stereo outputs are jumper-selectable to mono

• 2x additional mono zone outputs available (mix output selectable via internal jumpers)

PAGING & ALARM INTEGRATION:

• Paging contact input (rear Phoenix connector)

• Alarm contact input (rear Phoenix connector)

• Emergency mode mutes all inputs except MIC1 on alarm closure

CONFIGURATION MODES:

• Primary + Secondary Mic hierarchy for paging/announcement systems

• Emergency mode for 3rd-party alarm system integration

• Jukebox mode for priority line input (e.g., sports or announcements)

REMOTE CONTROL COMPATIBILITY:

• Compatible with PL-14 intelligent wall plate controller (RJ45 connection)

• Up to 2x PL-14 controllers supported

• Also compatible with PL-5 IR handheld remote for wireless control

• Rear Phoenix connectors allow for use of custom/third-party analog remote controls

PHYSICAL & MOUNTING:

• 1U 19" rack-mountable or desktop installation

• Front panel accessible 3.5mm aux input and MIC1 (when enabled)

APPLICATIONS:

• Background music and paging systems in restaurants, retail, hospitality, and commercial spaces

• Suitable for integration with emergency/fire systems and multiple zone routing setups
