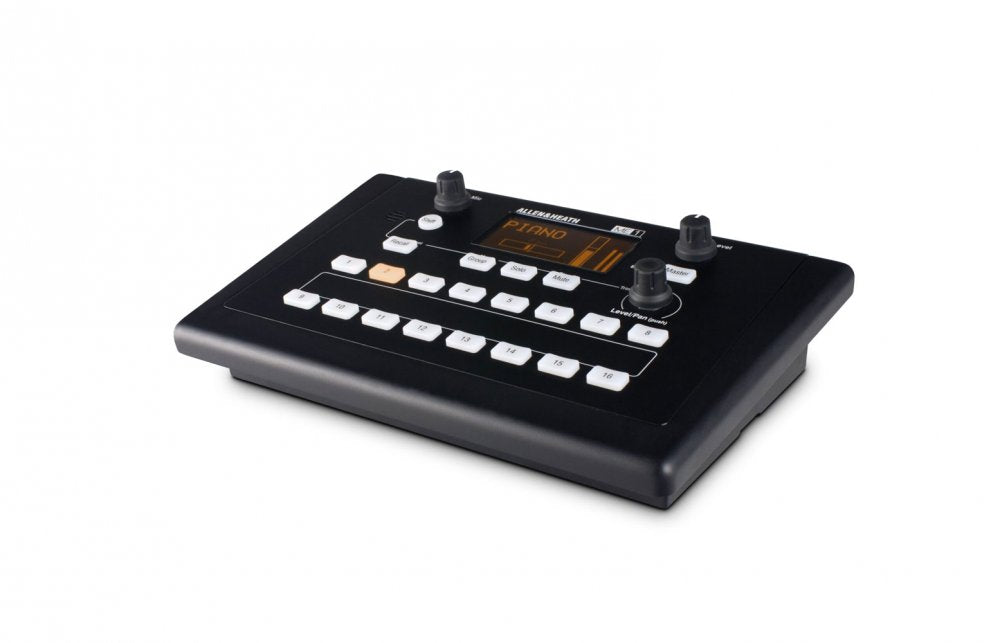

Allen & Heath ME-1

Each performer can be given a tailored setup that works perfectly for them, whether they crave maximum control over the fine details of their mix or just want the minimum of keys to press. Operation is intuitive and elegant, with simple controls, clear visual feedback and custom naming for instant familiarity.

ME-1 is the cornerstone of the ME Personal Mixing System and is ready to use with the Allen & Heath dLive, iLive, GLD and Qu series digital mixers. ME-1 is complemented by the ME-U hub, which opens up the benefits of ME to users of other professional digital mixers via Dante, EtherSound or MADI. ME-1 also has an Aviom compatibility mode for use with Aviom Pro16 systems.

• Fully customisable

• Intuitive operation

• Compact, smart design

• 40 sources from GLD, Qu, dLive or iLive

• Compatible with MADI, Dante, Waves SG or EtherSound via ME-U hub

• Daisy chain or use standard PoE Ethernet hubs

• 16 assignable keys to suit application

• Inputs: Receives up to 40 audio sources via a single Cat5 cable; stereo 3.5mm auxiliary input for local sources

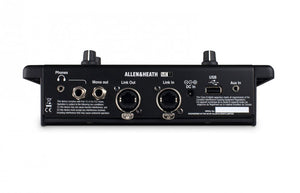

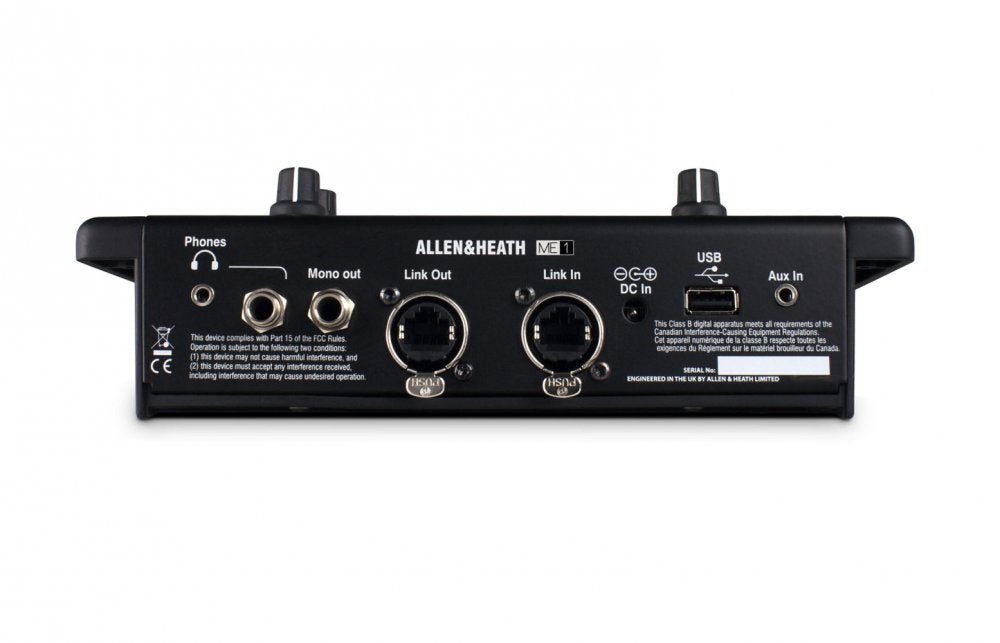

• Outputs: Stereo outputs on 1/4" and 3.5mm jacks for headphones or line out; balanced mono TRS line output

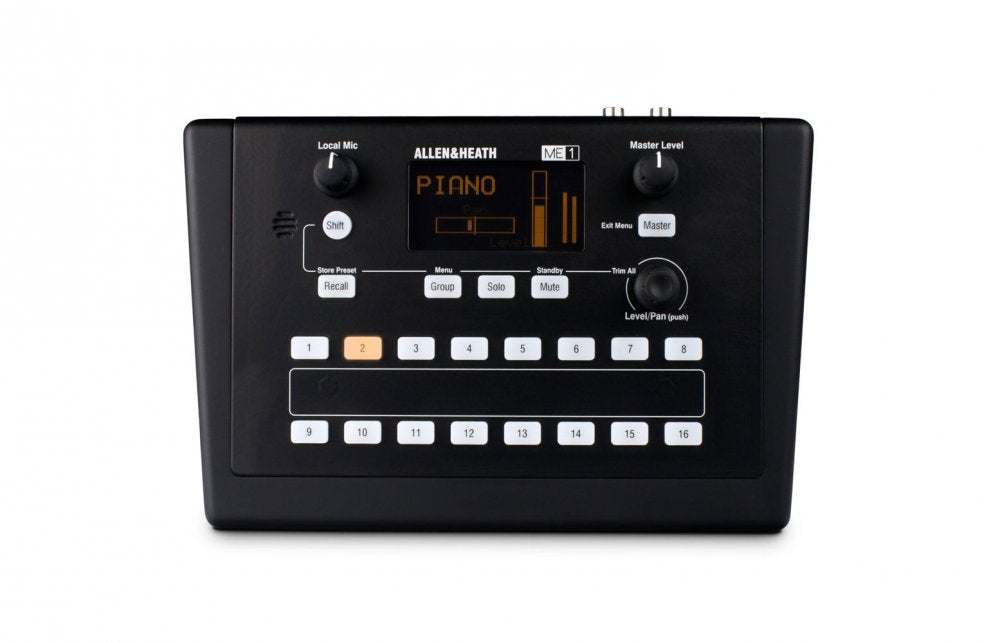

• User Interface: 16 assignable backlit keys for quick access; dimmable OLED screen displaying channel information; single rotary encoder for navigation and adjustments

• Audio Processing: Individual level and pan control for each source; master 3-band EQ and limiter; built-in ambient microphone with level control

• Power Options: Powered via external 12V DC adapter or Power over Ethernet (PoE) compliant with IEEE 802.3af

• Dimensions: Width: 230 mm (9 inches); Depth: 160 mm (6.3 inches); Height: 70 mm (2.7 inches); Weight: 1.1 kg (2.4 lbs)
