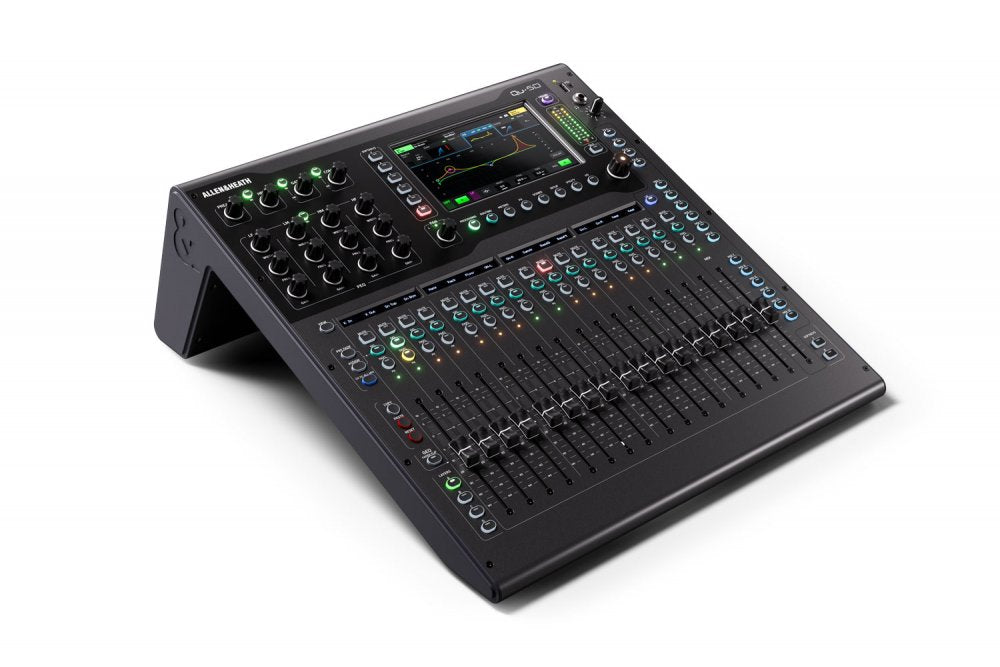

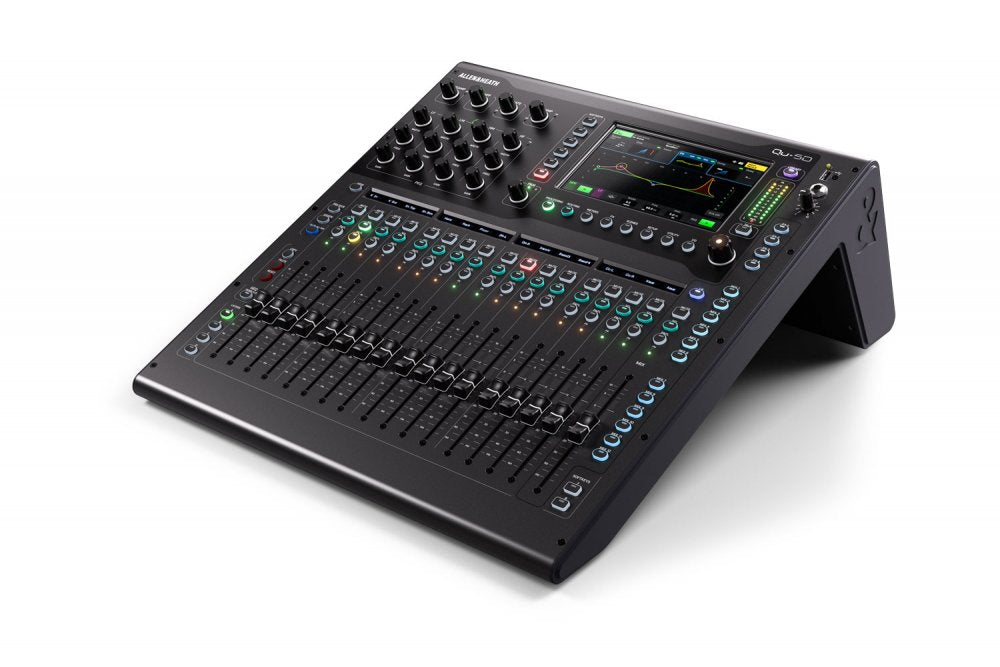

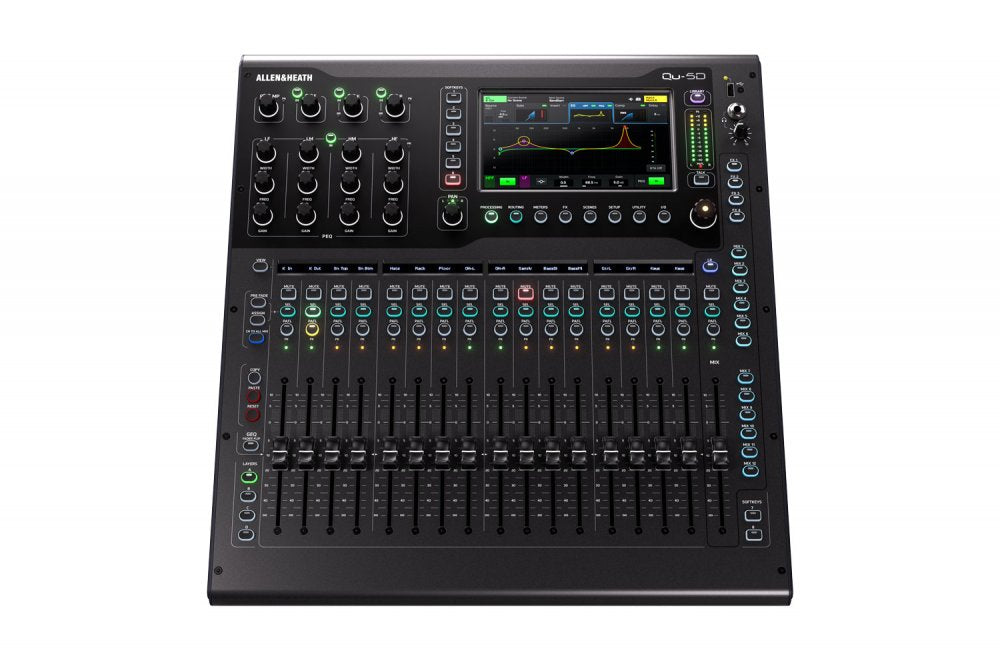

Allen & Heath QU-5D

The Allen & Heath Qu-5D takes the trusted design of the Qu-5 and supercharges it with integrated Dante connectivity, making it an ideal choice for professional audio installations and live sound environments that require seamless integration into Dante-enabled networks. It retains the full power of the 96kHz XCVI core and the compact, rack-mountable 19" form factor while expanding its flexibility through a built-in 16-16 Dante interface operating at both 48kHz and 96kHz.

Qu-5D is engineered for effortless control and pristine sound, featuring 17 motorized faders, a 7" capacitive touchscreen, and four fully customizable fader layers. Its 16 mic/line inputs, 12 XLR outputs, and extended I/O options including AES3 and stereo TRS provide ample connectivity for diverse applications. The mixer includes advanced DSP features like DEEP Processing, Automatic Mic Mixing, Feedback and Gain Assistants, and six stereo FX engines with dedicated returns. With its powerful 32x32 USB-C audio interface, SD card multitrack recording, and Dante integration, the Qu-5D is a future-ready solution for modern digital audio workflows.

• Dante-Enabled for Network Integration: Includes a built-in 16-16 Dante interface at 48kHz or 96kHz for seamless integration into digital audio networks and larger system setups.

• Premium 96kHz Audio Engine: Powered by a high-performance XCVI core with upgraded mic preamps and 96kHz AD/DA converters for crystal-clear sound.

• Flexible and Customisable Mixing: 38 input channels, 24 outputs, and 4 fully configurable channel strip layers to create personalized workflows.

• Motorised Faders & Full Display: 17 motorised 100mm faders with each channel showing name, level, and type for quick visual reference.

• Enhanced Workflow Tools: Includes Gain Assistant and Feedback Assistant for fast and accurate setup. Automatic Mic Mixing (AMM) is also built-in.

• Multitrack Recording Options: Record and playback via USB-C (32-32), SD card (up to 32-32 at 48kHz), or stereo USB-A-perfect for any live or studio scenario.

• Comprehensive Connectivity: Features 16 XLR/jack combo inputs, 2 stereo line ins, 12 XLR outs, talkback mic input, AES3 digital out, and headphone output.

• Built-in FX and DEEP Processing: 6 internal FX engines with dedicated returns and support for DEEP Processing plug-ins from Allen & Heath's dLive system.

• Control On-the-Go: 7" touchscreen, 8 SoftKeys, footswitch support, and remote control apps for Windows, macOS, iOS, and Android.

• Ready for Rack Mounting: Compact 19" form factor with optional rack kit for installations or portable rigs.

GENERAL SPECIFICATIONS:

• compact digital mixer with integrated Dante networking

• 38 input channels to mix

• 32 mono inputs (linkable)

• 3 stereo inputs

• 24 output channels

• 96kHz XCVI processing core

• DEEP processing ready for advanced channel strip models

• 7 inch capacitive touchscreen

• 17 motorised 100mm faders

• 4 customisable fader layers

• 8 assignable SoftKeys

• configurable footswitch input (single or dual)

• updated workflow with improved channel displays and navigation

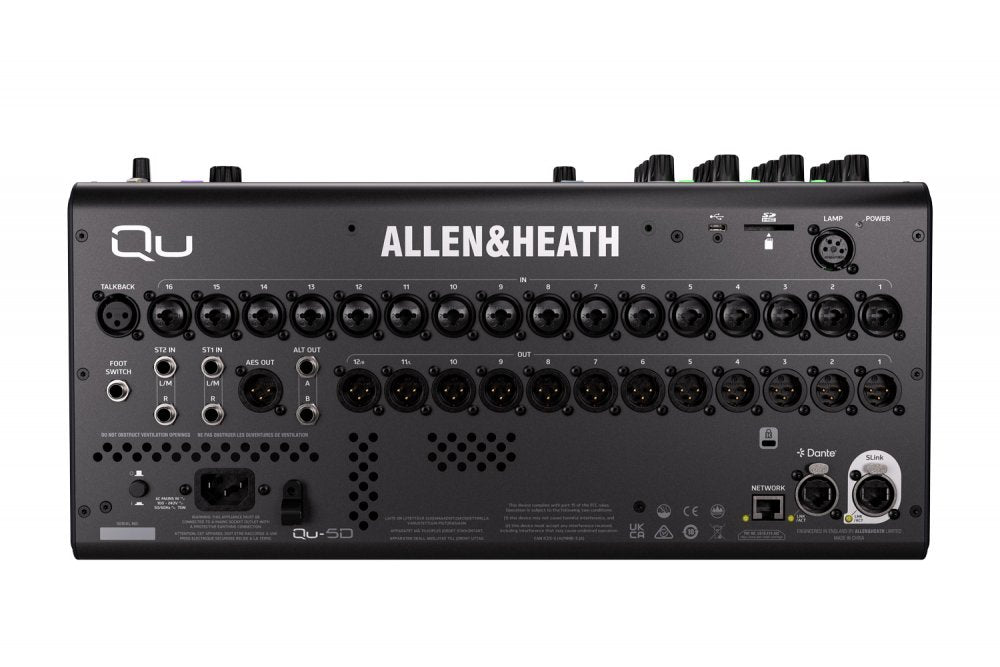

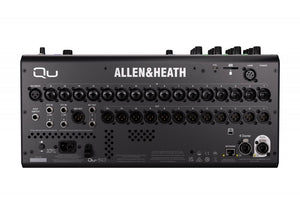

INPUT AND OUTPUT I/O:

• 16 XLR/TRS combi mic/line inputs

• 2 stereo line inputs (each with 2x TRS)

• 12 XLR output sockets

• 2 TRS output sockets

• 1 XLR AES3 stereo digital output

• 1 XLR talkback mic input

• stereo headphone output

• 12V lamp socket

MIXING ARCHITECTURE:

• 12 mix outputs

• 6 mono or linkable aux/group

• 6 stereo aux/group

• 4 mono or linkable matrix outputs

• stereo main LR output

• 6 internal FX engines with dedicated stereo FX returns

DIGITAL NETWORKING AND EXPANSION:

• built-in 16-16 Dante interface

• 48kHz or 96kHz sample rate

• dedicated locking EtherCon Dante port

• 128-128 SLink port for I/O expansion and remote audio

• full patching flexibility across all inputs and outputs

RECORDING AND PLAYBACK CAPABILITIES:

• 32-32 USB-C multitrack audio interface

• USB-A stereo record/playback and data transfer

• SD card multitrack audio support

• 16-16 at 96kHz

• 32-32 at 48kHz

ASSISTIVE TOOLS AND PROCESSING:

• DEEP channel processing support

• Gain Assistant for automatic input gain calibration

• Feedback Assistant with up to 16 filters per output

• integrated 32-channel Automatic Mic Mixer (AMM) with no added latency

REMOTE CONTROL:

• compatible with free control apps for Windows, MacOS, iOS, and Android

• full remote access to mix, processing, routing, and recording

BUILD AND MOUNTING:

• retains compact Qu series form factor

• optional 19 inch rackmount kit available

• redesigned user interface for enhanced usability

• chromatic channel meters for quick level monitoring

• hardware upgrades including improved preamps and converters for pristine 96kHz audio fidelity
