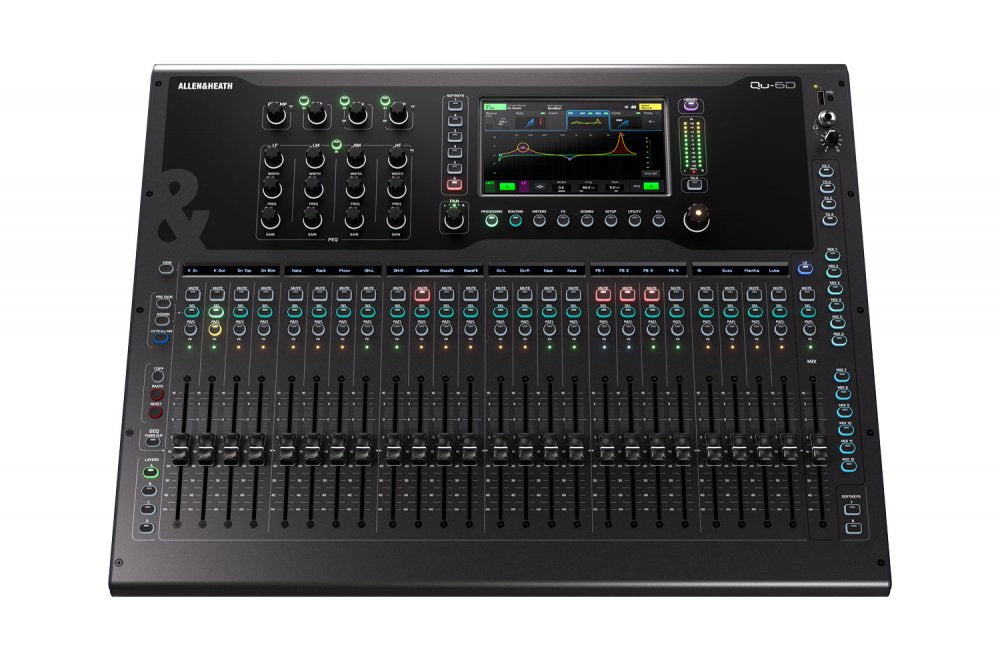

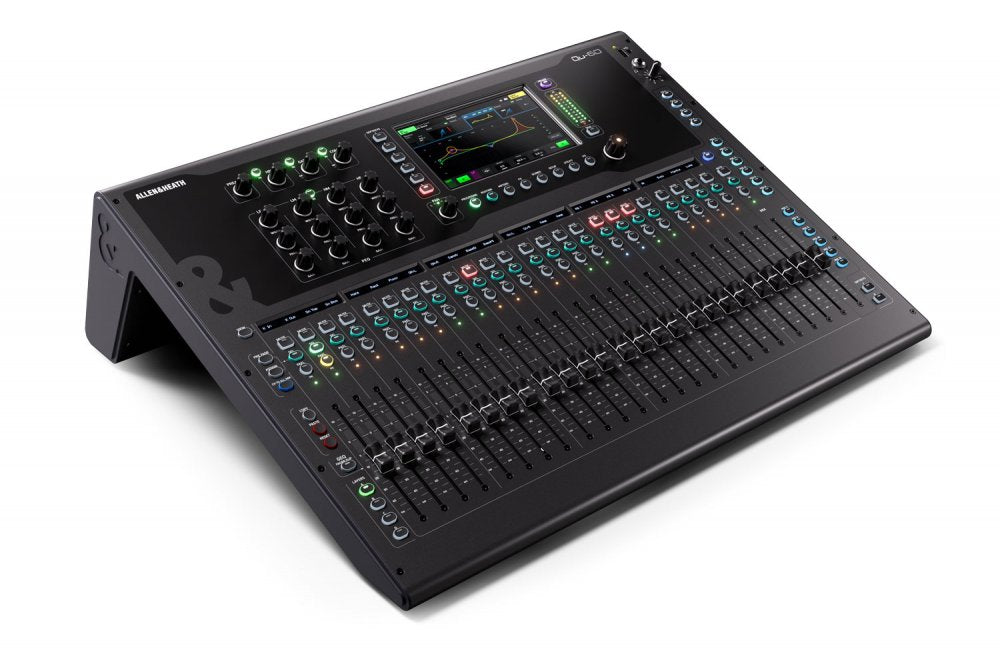

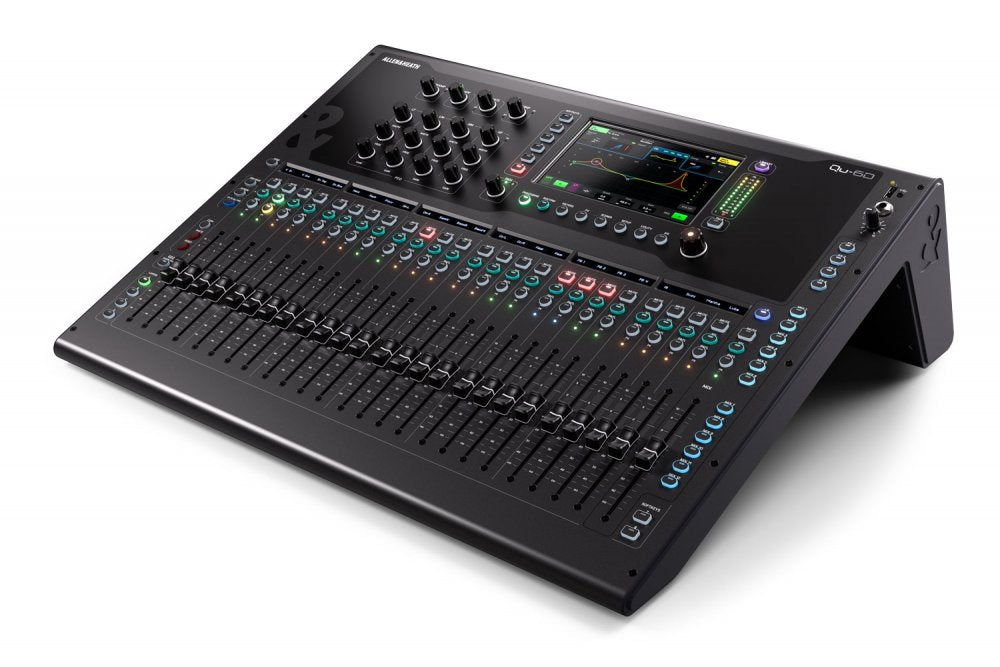

Allen & Heath QU-6D

The Allen & Heath Qu-6D is a cutting-edge digital mixer that merges top-tier sonic performance with advanced networking capabilities, ideal for demanding live sound, installation, and studio environments. At the heart of the Qu-6D lies a 96kHz XCVI processing core, delivering ultra-low latency, pristine audio quality, and access to DEEP processing tools including acclaimed plug-in style dynamics and FX from Allen & Heath's flagship dLive series. Designed to handle complex mixing tasks with ease, the Qu-6D provides 38 inputs to mix and a versatile architecture that includes 12 configurable mixes and 4 matrix outputs.

What sets the Qu-6D apart is its built-in 16-16 Dante interface, allowing seamless integration into Dante-enabled systems at either 48kHz or 96kHz. The console features 25 motorised 100mm faders, 24 combo mic/line inputs, and 16 XLR outputs, supporting sophisticated I/O routing via a 128-128 SLink port. Its intuitive workflow is enhanced by a 7" capacitive touchscreen, 4 customisable fader layers, 8 assignable SoftKeys, and advanced assistive tools like Feedback Assistant and Gain Assistant. The Qu-6D also excels in multitrack capture, offering 32-32 USB-C audio interface, SD card recording/playback, and stereo USB-A support-making it a powerful all-in-one solution for professional audio control and recording.

• Built-In Dante Audio Networking: Equipped with a 16-16 Dante interface (48/96kHz) for seamless integration into networked audio systems.

• Expanded I/O for Larger Setups: Includes 24 mic/line combo inputs and 16 XLR outputs, offering more connectivity for complex events or installations.

• High-Resolution 96kHz Audio: Powered by the XCVI processing core with enhanced mic preamps and converters for pristine sound quality.

• 25 Motorised Faders: Offers responsive, automated control with dedicated meters and channel displays for fast visual reference.

• Customisable Workflow: Features 4 user-configurable layers, 8 assignable SoftKeys, and a redesigned 7" touchscreen interface for intuitive operation.

• Multitrack Recording & Playback: Record and play back 32 tracks via USB-C, or use the SD card slot and USB-A port for flexible file handling.

• Integrated Effects & Processing: Includes 6 internal FX engines with stereo returns and supports Allen & Heath DEEP Processing add-ons.

• Assistive Setup Tools: Built-in Gain Assistant and Feedback Assistant help speed up configuration and prevent audio issues.

• Automatic Mic Mixing (AMM): Fully integrated 32-channel AMM makes the Qu-6D ideal for speech-focused events like panels or conferences.

• Flexible Expansion & Control: Includes an AES digital output, SLink expansion port, headphone output, and compatibility with free remote control apps.

GENERAL SPECIFICATIONS:

• model: Qu 6D

• digital mixer with 96kHz XCVI FPGA processing core

• DEEP processing ready

• total input channels to mix: 38

• 32 mono (linkable)

• 3 stereo

• total output buses: 24

• redesigned capacitive 7 inch touchscreen

• 25 motorised 100mm faders

• 4 fully customisable channel strip layers

• 8 assignable SoftKeys

• dual footswitch input (single or dual mode)

• chromatic LED channel meter per fader

AUDIO PERFORMANCE:

• updated mic preamps

• high performance 96kHz AD/DA conversion

• low latency, high headroom signal path

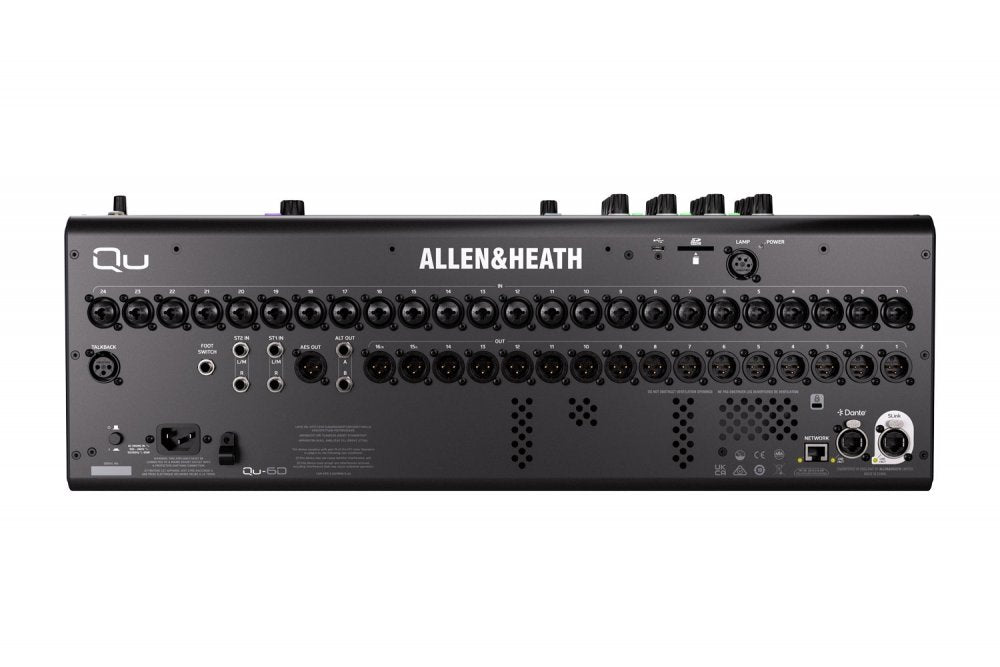

INPUT AND OUTPUT I/O:

• 24 XLR/TRS combi mic/line input sockets

• 2 stereo line input pairs (each 2x TRS)

• 16 XLR output sockets

• 2 TRS output sockets

• 1 XLR AES3 stereo digital output

• 1 XLR talkback mic input

• stereo headphone output

• 12V lamp socket

MIX ARCHITECTURE:

• 12 mix outputs

• 6 mono or linkable aux/group

• 6 stereo aux/group

• 4 mono or linkable matrix outputs

• stereo main LR output

• 6 internal multi FX engines with dedicated stereo returns

DIGITAL EXPANSION AND DANTE NETWORKING:

• built-in Dante interface

• 16x16 channels

• supports 48kHz or 96kHz operation

• locking EtherCon Dante port

• 128x128 SLink intelligent port for remote audio and I/O expansion

RECORDING AND PLAYBACK CAPABILITIES:

• USB-C interface for 32x32 multitrack recording and playback

• USB-A port for stereo record/playback and file transfer

• SD card multitrack support

• 16x16 channels at 96kHz

• 32x32 channels at 48kHz

ASSISTIVE TOOLS AND DSP FEATURES:

• Gain Assistant for automated gain staging

• Feedback Assistant with up to 16 automatic notch filters per output

• 32 channel Automatic Mic Mixer (AMM) with integrated DSP and zero added latency

REMOTE CONTROL AND SOFTWARE:

• compatible with free remote apps for Windows, MacOS, iOS, Android

• supports full mix control, patching, effects, and routing

CHASSIS AND MOUNTING:

• 19 inch rack mountable with optional kit

• compact and rugged design suitable for live, studio, and installation use
