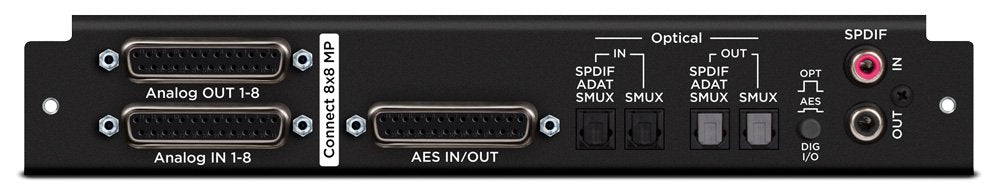

Apogee Symphony I/O MkII 8x8+8MP Connect Series Module

The I/O Modules are the sound and soul of Symphony I/O Mk II, and represent over 30 years of Apogee R&D and design excellence. These powerful Modules deliver Apogee's core competency: superior sounding digital audio recording. With multiple I/O and Mic Preamp modules available, you can choose from base configurations or expand to grow your studio's capabilities.

INPUTS:

Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector

8 microphone preamps with up to 72dB of gain

Featuring Advanced Stepped Gain Architecture™

*AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector

(192k single wide compatible)

*Optical IN: Supports ADAT, SMUX & S/PDIF

ADAT: 8 channels 44.1-48 kHz

SMUX: 8 channels 88.2-96 kHz

S/PDIF: 2 channels, up to 96 kHz

Coax IN: 2 channels of S/PDIF, up to 192 kHz

OUTPUTS:

Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector

*AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector

(192k single wide compatible)

*Optical OUT: Supports ADAT, SMUX & S/PDIF

ADAT: 8 channels 44.1-48 kHz

SMUX: 8 channels 88.2-96 kHz

S/PDIF: 2 channels, up to 96 kHz

Coax OUT: 2 channels of S/PDIF, up to 192 kHz
