Appsys ProAudio AppSys Multiverter MKII

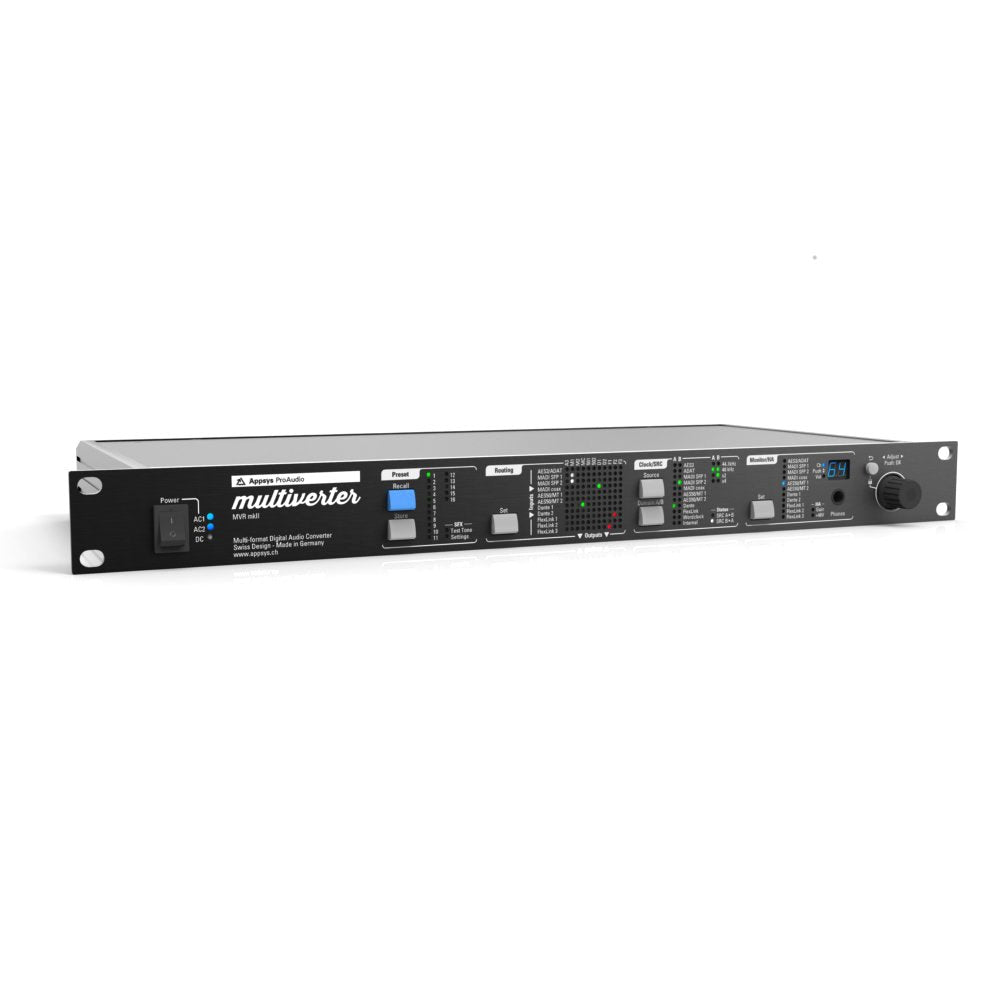

The Appsys ProAudio MVR-mkII Multiverter is a powerful digital audio format converter that facilitates seamless integration between diverse audio interfaces. It offers a 704x704 channel routing matrix, enabling precise channel-wise routing and splitting across multiple formats simultaneously. Supported interfaces include AES3 (16x16 channels), ADAT, S/PDIF, AES3 optical, MADI (coaxial and dual SFP ports), AES50 (up to 2 ports), MADI-TP (up to 2 ports), and Dante, making it one of the most versatile tools for digital audio workflows.

The MVR-mkII operates at sample rates from 44.1 kHz to 192 kHz and features ClockShield™ technology for stable operation, even during clock dropouts of up to one second. An optional Sample Rate Conversion module (SRC-64) allows for bidirectional conversion of up to 128 channels. Control is accessible via a web interface, USB, or command line, offering flexibility for remote management in various setups. Additional features include an integrated headphone amplifier for signal monitoring, a test tone generator, and support for storing and recalling up to 16 presets.

• 64x64 Channel Multi-Format Conversion: Seamlessly bridges various digital audio formats, including MADI, Dante, AES/EBU, ADAT, Toslink, and USB.

• Versatile Audio Routing: Allows customizable routing between input and output formats, enabling complex audio workflows.

• High-Resolution Audio: Supports up to 192kHz sample rates with pristine sound quality across all formats.

• Built-In Sample Rate Conversion (SRC): Provides real-time conversion for interoperability between devices with different clocking and sample rates.

• Flexible Connectivity: Features a wide array of I/O options for comprehensive system integration.

• Web-Based Control Interface: Offers an intuitive platform for routing configuration, monitoring, and firmware updates.

• Compact and Robust Design: Lightweight yet durable, perfect for use in studios, live events, or broadcast setups.

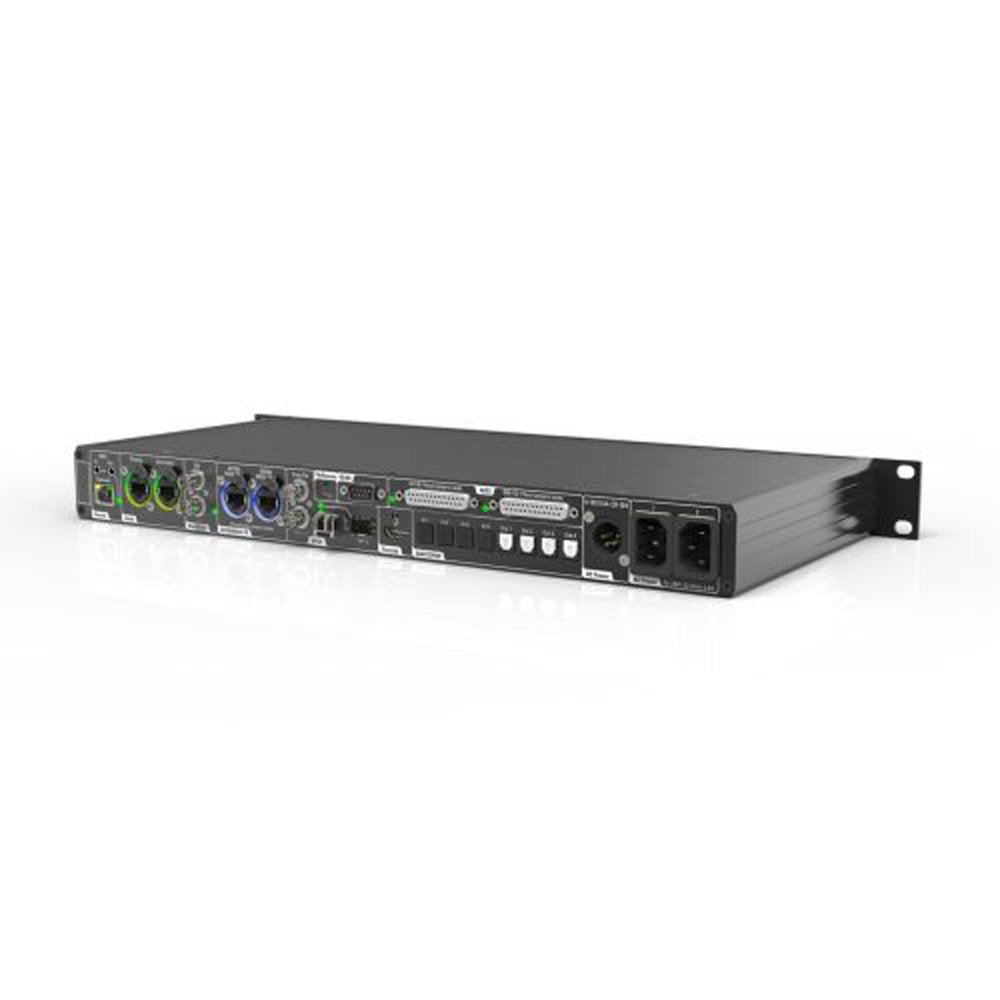

• AES3: 16 input and 16 output channels

• ADAT: 4 input and 4 output ports; 8 channels at 44.1/48 kHz, 4 channels at 88.2/96 kHz, or 2 channels at 176.4/192 kHz

• MADI:

• SFP: 2 ports for multimode fiber connections

• Coaxial: 1 port for standard AES10 coaxial connections

• Twisted Pair (MADI-TP): Up to 2 ports, compatible with AES-X 213 standard

• AES50: Up to 2 ports, compliant with AES50 3.1 standard

• Dante: 64 input and 64 output channels at 44.1/48 kHz; 32 channels at 88.2/96 kHz; 16 channels at 176.4/192 kHz

• FlexLink: Supports up to 192 additional channels via Flexiverter breakout boxes

• Sample rate conversion: Optional SRC-64 plug-in module supports bidirectional conversion for up to 64 channels

• Clocking options:

• Sample rates from 44.1 kHz to 192 kHz

• Word clock input and output via BNC connectors

• Clock master selectable from any incoming audio signal, BNC input, or internal high-quality clock

• Remote control:

• Integrated web interface accessible via Ethernet or USB

• Command-line control via telnet or UART

• Additional features:

• Integrated headphone amplifier for monitoring any incoming signal

• Test tone generator for troubleshooting

• Preset storage and recall for up to 16 configurations

• Triple-redundant power supply with two 90-240V AC inputs and one 9-18V DC input

• MIDI and RS485 embedding/de-embedding into MADI streams, compatible with RME™/DirectOut™ standards

• Transparent forwarding of MADI control data

• Dimensions: 482 mm (W) x 45 mm (H) x 230 mm (D)

• Weight: Approximately 2.25 kg
