Ashly KLR-4000

The two-channel power amplifier shall incorporate the latest amplifier technology to deliver a minimum power of 2,000 Watts per channel into 2 Ohm loads, 1,400 Watts RMS per channel into 4 Ohm loads, or 850 Watts RMS per channel into 8 Ohm loads with both channels operating. The amplifier shall have rear panel switching for parallel mono and bridging modes. When switched into bridged-mono mode, the amplifier shall deliver 4,000 Watts into a 4 Ohm load. The amplifier protection shall include output over-current, DC output, chassis temperature, and a mains circuit-breaker. Frequency response shall be 20Hz-20kHz (1W @ 8 Ohms). The Signal-to-Noise Ratio shall be greater than 109dB at rated power into 8 Ohms (unweighted). THD shall be less than 0.05% into 4 Ohms, 20Hz-20kHz and 10dB below rated power. The amplifier shall have a channel attenuator for each input on the front panel and input sensitivity select switch, a high-pass filter switch and limiter enable switch on the rear panel. The inputs shall be of balanced bridging type with XLR, ¼" TRS, and 3-pin Euroblock connectors. The outputs shall be four pin SpeakON type connectors. LED type indicators shall be employed to show the relative power level of each channel, clip/protect and power on/off. Self contained forced air cooling (front in) shall be used with front panel mounted, removable dust filters. The power amplifier shall weigh 26.7lbs/12.1kg net and mount in a standard 19 inch rack using two spaces (3.5 inches high). The power requirement shall be 120VAC or 240VAC ±10%, 50-60Hz, factory set.

• Rated for 2 Ohms operation

• Balanced inputs via 3-pin Euroblock

• Combo XLR/TRS connectors

• Neutrik speakON type output connectors

• Switch-mode power supply with extensive protection circuitry

• On/off limiter switch

• Forced-air cooled (front-in, rear-out)

• Removable dust filters, easy to clean

• Front-mounted attenuators

• Removable amp handles for permanent installation

• Optional locking front panel volume knobs

• Safety/Compliance: cCSAus, CE, FCC, RoHS

Specifications : Note: 0dBu = 0.775 VRMS

Frequency Response (1W @ 8 Ohms) : 20Hz-20kHz (+0.3dB) 5Hz-70kHz (-3dB down point)

Damping Factor: >380 (100Hz @ rated power @ 8 Ohms)

THD (20Hz-20kHz): 10dB below rated output @ 4 Ohms <0.05%

Input Impedance: 12k Ohm, balanced

Max Input Level: +21dBU

HPF: 30Hz, 50Hz, Off (12dB/Oct)

Amplifier Protection: Output Overcurrent, DC Output, Chassis Temperature, Mains Breaker (KLR-5000 uses internal Mains fuse)

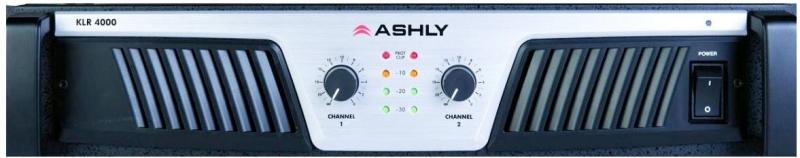

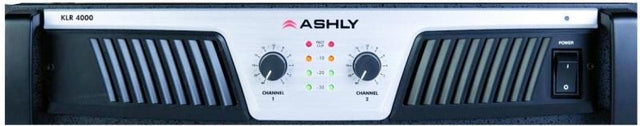

FRONT PANEL:

Operating Temp/Humidity: -10C to +40C/Humidity: 0% to 90%

Airflow/Cooling: Front-to-Rear, Variable Speed Fan

Front Panel Indicators: Protection/Clip, Signal, Power

Attenuators: Front Panel (each channel)

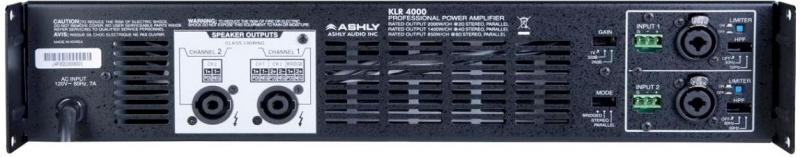

REAR PANEL:

Input Connectors (each Ch) : 3-pin Euroblock, XLR, ¼" TRS Phone Jack

Output Connectors: 4-pin SpeakON type (each channel)

Power Cable Connector: 3-prong NEMA 5-15, 5-20 for KLR-5000

WEIGHTS, DIMENSIONS & POWER:

Dimensions: 19" W x 3.5" H x 16" D (482mm x 88mm x 407mm)

Unit Weight: 26.6lbs (12kg)

Shipping Weight: 33lbs (15kg)

Power Requirements: 120VAC or 240VAC, ±10% (factory set) 50-60Hz
