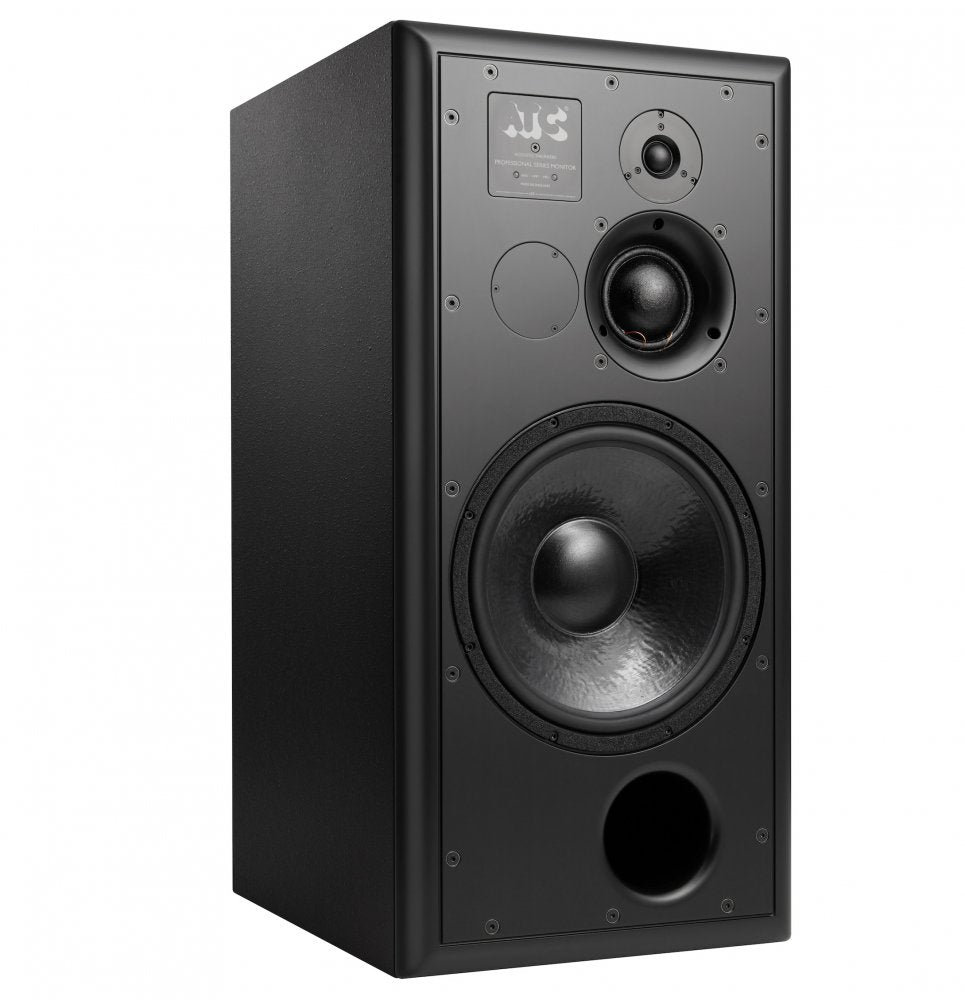

ATC Loudspeakers SCM100ASL Pro (single)

The SCM100ASL Pro is using a 314mm bass driver in a larger enclosure.

Maximum continuous SPLs of up to 115dB/1m are possible. 4th order active crossovers produce a highly linear amplitude response for both direct and ambient fields, contributing to exceptional stereo imaging.

The active design ensures optimum matching of six MOS-FET amp blocks to the drivers, providing plenty of transient headroom and maximum SPLs of up to 112dB.

An LF contour control provides five bass boost settings, and a flat reference response.

• ATC 25mm/1" Dual Suspension 'S-Spec' Tweeter.

• Full "SL" spec 12/314mm bass driver.

• ATC 3/75mm "Super Dome" mid driver.

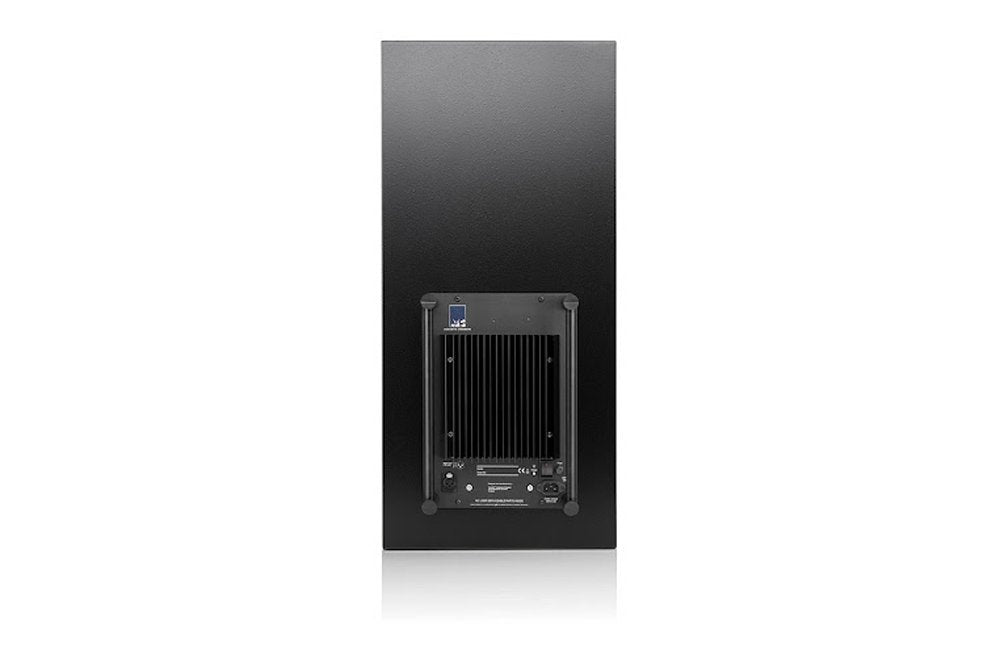

• On board grounded source 350W Tri-amp pack.

• LF contour control.

• Clip indication.

DRIVERS:

HF 1/25mm, Mid 3/75mm, LF 12/314mm

AMPLITUDE LINEARITY (±2DB):

65Hz-17kHz

CUT-OFF FREQUENCIES (-6DB, FREE-STANDING):

32Hz, 22kHz

HORIZONTAL DISPERSION:

±80, Coherent

VERTICAL DISPERSION:

±10, Coherent

MAX. CONTINUOUS SPL (1 METRE):

115dB

CROSSOVER FREQUENCIES:

380Hz, 3.5kHz

INPUT CONNECTORS:

Male XLR

INPUT SENSITIVITY:

1V

INPUT SENSITIVITY TRIM:

0dB to -6dB/1V - 2V (continuously variable via rear panel trimmer)

INPUT IMPEDANCE:

Balanced > 10k

AMPLIFIER OUTPUT:

Bass 200W, Mid 100W, High 50W

FILTERS:

Even Order Critically Damped

OVERLOAD PROTECTION:

Active FET momentary gain reduction plus thermal tweeter protection

FRONT PANEL INDICATORS:

Power On indicator, Gain Reduction warning

LF EQ:

0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)

DIMENSIONS (HXWXD):

832 x 398 x 581mm (32.8 x 15.7 x 22.9) Depth with amplifier at rear adds 3

WEIGHT:

65kg / 143lbs
