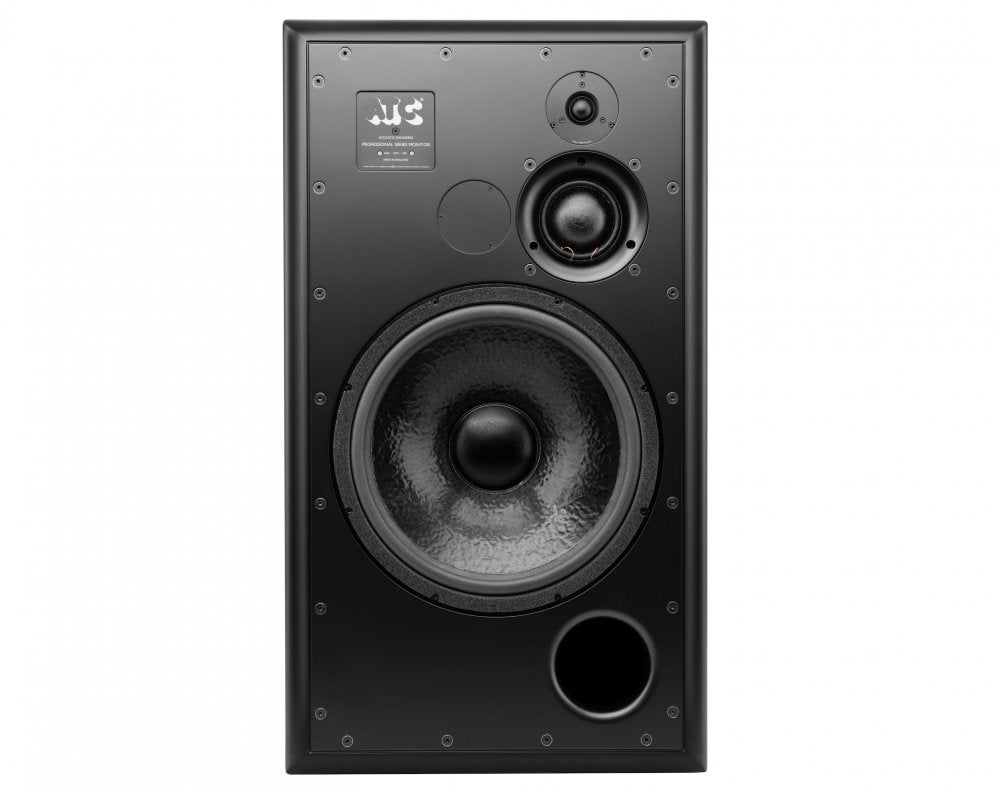

ATC Loudspeakers SCM150ASL Pro (single)

The SCM150ASL Pro substitutes a larger 375mm Super Linear bass driver and increases the enclosure size to 150 litres, adding an extended band with and high dynamic range. These monitors offer medium sized studios the classic ATC quality constuction, and the accurate and aritculate sound needed for producing complex and well balanced mixes. the SCM150ASL Pro are one of the best investments any studio can make.

• ATC 25mm/1" Dual Suspension 'S-Spec' Tweeter.

• Full "SL" spec 15/375mm bass driver.

• ATC 75mm "Super Dome" mid driver.

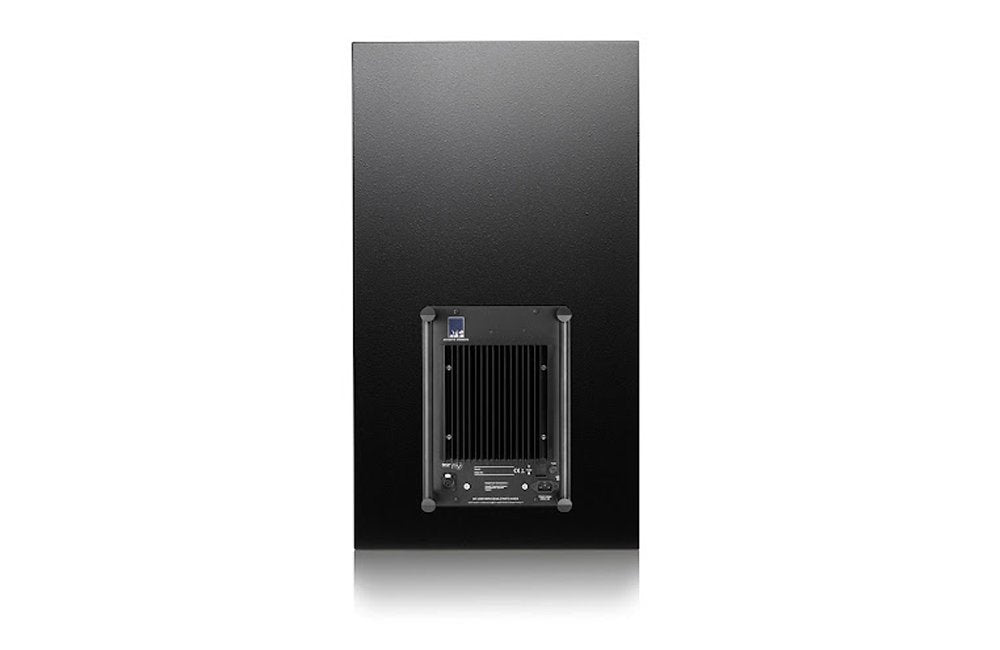

• On board ATC grounded source 350W Tri-Amp Pack.

• LF contour control.

• Clip indication.

DRIVERS:

HF 1/25mm, Mid 3/75mm, LF 15/375mm

AMPLITUDE LINEARITY (±2DB):

60Hz-17kHz

CUT-OFF FREQUENCIES (-6DB, FREE-STANDING):

25Hz, 22kHz

HORIZONTAL DISPERSION:

±80, Coherent

VERTICAL DISPERSION:

±10, Coherent

MAX. CONTINUOUS SPL (1 METRE):

117dB

CROSSOVER FREQUENCIES:

380Hz, 3.5kHz

INPUT CONNECTORS:

Male XLR

INPUT SENSITIVITY:

1V

INPUT SENSITIVITY TRIM:

0dB to -6dB/1V - 2V (continuously variable via rear panel trimmer)

INPUT IMPEDANCE:

Balanced > 10k

AMPLIFIER OUTPUT:

Bass 200W, Mid 100W, High 50W

FILTERS:

Even Order Critically Damped

OVERLOAD PROTECTION:

Active FET momentary gain reduction plus thermal tweeter protection

FRONT PANEL INDICATORS:

Power On indicator, Gain Reduction warning

LF EQ:

0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)

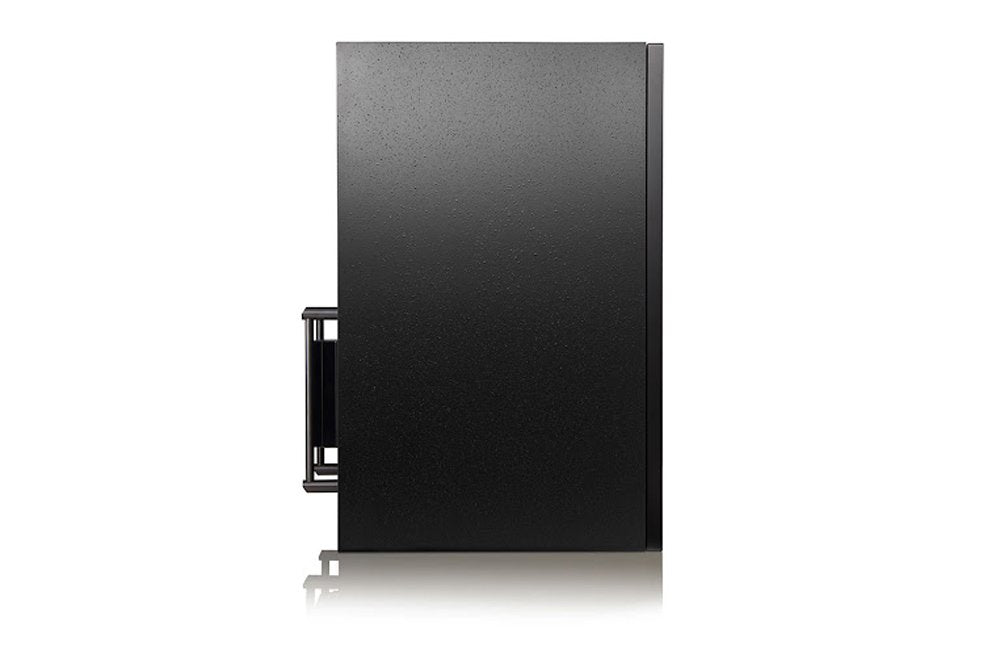

DIMENSIONS (HXWXD):

884 x 498 x 568mm (34.8 x 19.6 x 22.4) Depth with amplifier at rear adds 3

WEIGHT:

75kg / 165lbs
