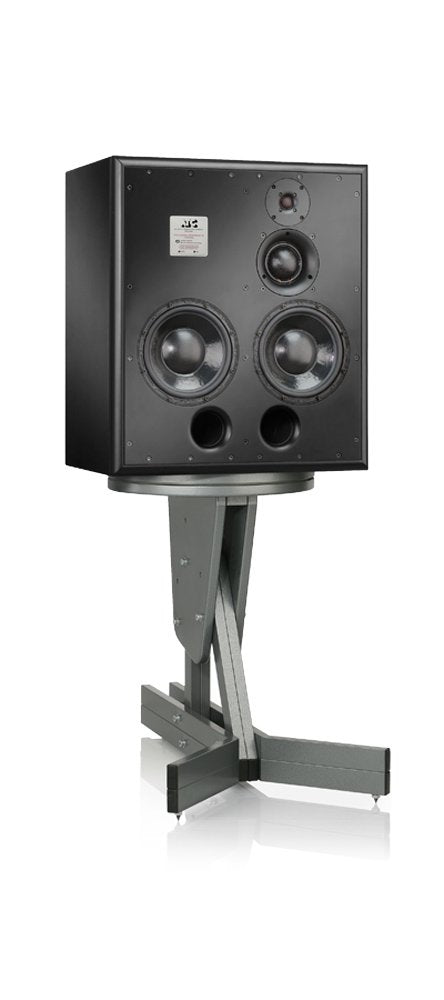

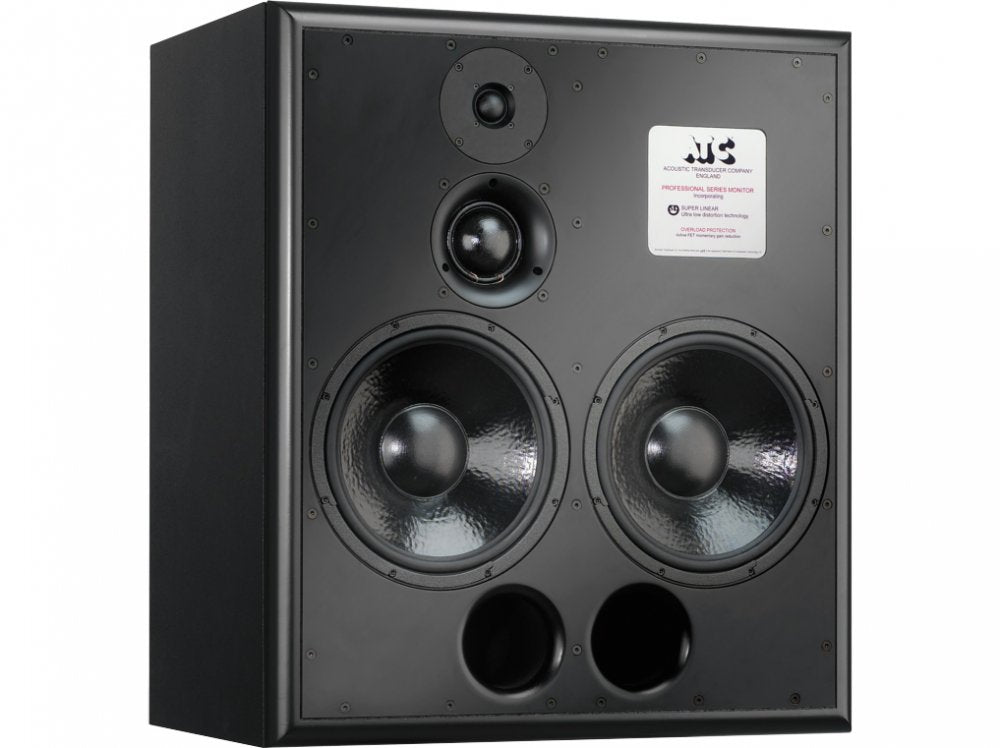

ATC Loudspeakers SCM200ASL Pro (single)

ATC, Acoustic Transducer Company, is a specialist British manufacturer of loudspeaker drive units and complete sound reproduction systems, including the relevant electronic equipment. All systems and components are designed and built in-house, to achieve levels of performance far in excess of the industry norm. This is achieved by adopting a thoroughly professional engineering approach to the issue of basic design, materials science and production technology.

• Large format main monitor.

• 34mm soft dome tweeter.

• Twin full spec "SL" 12/314mm bass drivers.

• ATC 75mm "Super Dome" mid driver.

• P4 rack-mount grounded source 850W class A/B amplifier.

DRIVERS:

HF 1.25/34mm, Mid 3/75mm, LF 2 x 12/314mm

AMPLITUDE LINEARITY (±2DB):

60Hz-12kHz

CUT-OFF FREQUENCIES (-6DB, FREE-STANDING):

32Hz, 20kHz (free standing) 25Hz, 20kHz (soffit mounted)

HORIZONTAL DISPERSION:

±80, Coherent

VERTICAL DISPERSION:

±10, Coherent

MAX. CONTINUOUS SPL (1 METRE):

118dB

CROSSOVER FREQUENCIES:

380Hz, 3.5kHz

INPUT CONNECTORS:

Male XLR

INPUT SENSITIVITY:

2V

INPUT IMPEDANCE:

Balanced > 10k

AMPLIFIER OUTPUT:

Bass 275+275W, Mid 200W, High 100W

FILTERS:

Even Order Critically Damped

OVERLOAD PROTECTION:

Active FET momentary gain reduction plus thermal tweeter protection

FRONT PANEL INDICATORS:

N/A

LF EQ:

N/A

DIMENSIONS (HXWXD):

830 x 730 x 440mm (32.7 x 28.7 x 17.3)

WEIGHT:

116kg / 255.2lbs
