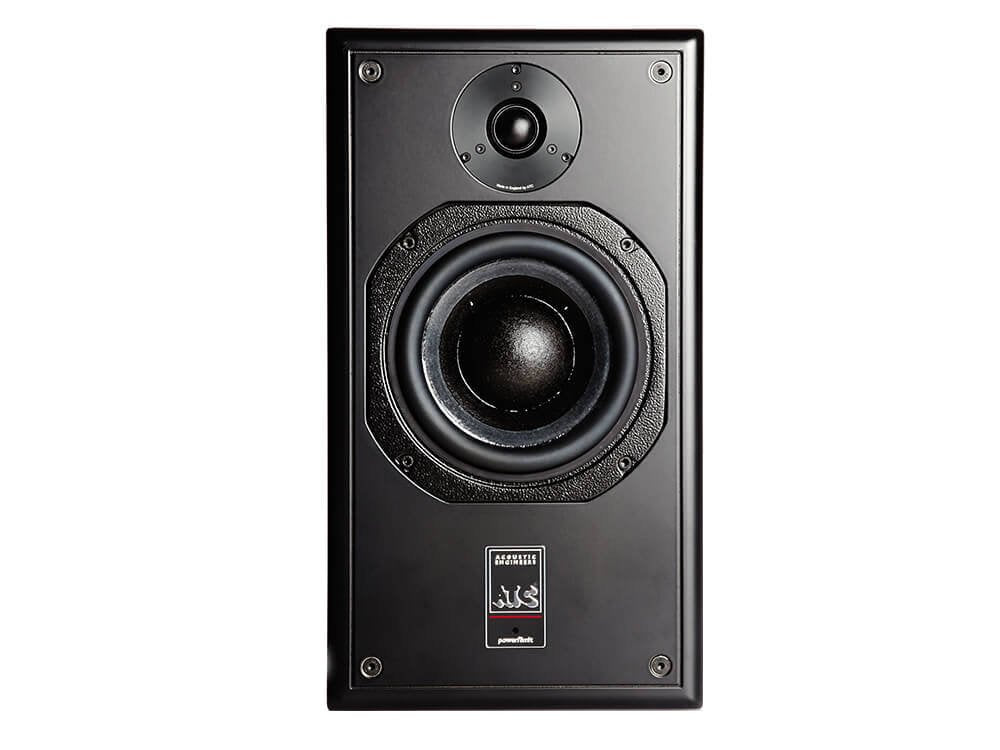

ATC Loudspeakers SCM20ASL Pro MKII (single)

ATC are renowned for their clear and surgically precise sound, their monitors facilitate the mixing of complex sound sources by their articulate reproduction of even the densest material. the SCM20ASL Pro is no exception. If any element sounds strange or doesn't sit well in the mix, you will hear it on these monitors. The SCM20ASL offer smaller project studios acces to the unrivaled ATC SCM range.

COMPACT VERY HIGH PERFORMANCE 2-WAY STUDIO MONITOR IDEALLY SUITED TO:

• critical near-field listening applications in all control rooms

• LCR surround monitoring in small-to-medium control rooms

• surround channels in medium-to-large control rooms

• Proprietary ATC 150mm/6" Super Linear Mid/Bass Driver

• Proprietary ATC 25mm/1" S-Spec Tweeter

• Discrete MOSFET class A/B bi-amp pack with 200W/50W continuous power output

DRIVE UNIT - LOW FREQUENCY (LF):

6.5"/150mm Super Linear with 75mm/3 voice coil (SB75-150SL 8 Ohm)

DRIVE UNIT - HIGH FREQUENCY (HF):

1"/25mm dual suspension Soft Dome (SH25-76S 6 Ohm)

AMPLITUDE LINEARITY (±2DB):

80Hz-20kHz

CUT-OFF FREQUENCIES (-6DB, FREE-STANDING):

55Hz, 25kHz

HORIZONTAL DISPERSION:

±80, Coherent

VERTICAL DISPERSION:

±10, Coherent

MAX. CONTINUOUS SPL (1 METRE):

108dB

CROSSOVER FREQUENCY:

2.1kHz

INPUT CONNECTORS:

Male XLR

INPUT SENSITIVITY:

1V

INPUT SENSITIVITY TRIM:

-12dB (1V - 4V)

INPUT IMPEDANCE:

Balanced > 10k

AMPLIFIER OUTPUT:

Bass 200W, High 50W

FILTERS:

2nd Order Critically Damped

OVERLOAD PROTECTION:

Active FET momentary gain reduction

FRONT PANEL INDICATORS:

Power On indicator, Gain Reduction warning

DIMENSIONS (HXWXD):

450 x 250 x 392mm (17.72 x 9.84 x 15.43)

WEIGHT:

28kg / 61.6lbs
