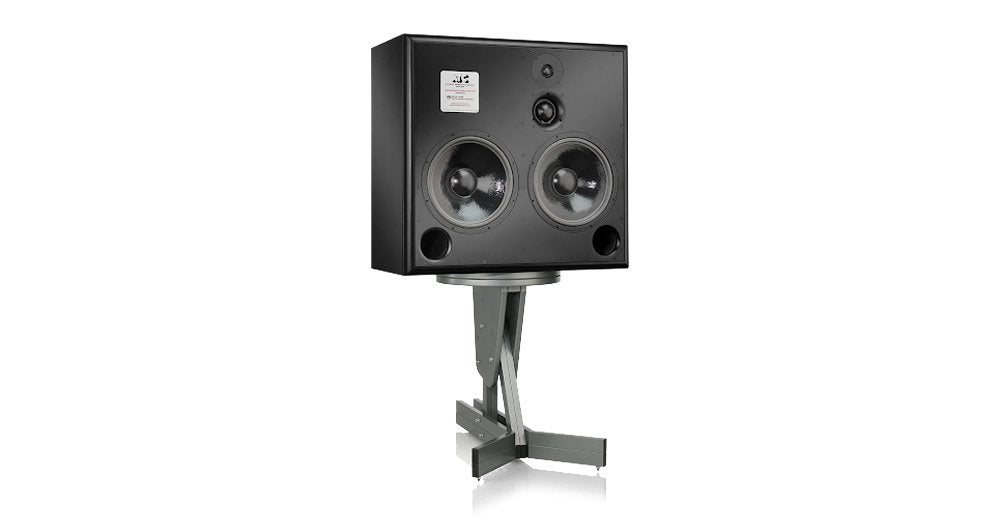

ATC Loudspeakers SCM300ASL Pro (single)

Based on the same mid and HF drivers, and the same amplifier block as the ATC SCM200A Pro, the ATC SCM300A employs larger 375mm bass drivers and a larger 300 litre enclosure to deliver even higher maximum volume (121dB/1m), with extended bass and increased transient headroom.

The new ATC SCM300 AT is a superb speaker producing prodigious bass output down to 25Hz. with legendary ATC dynamics and power.

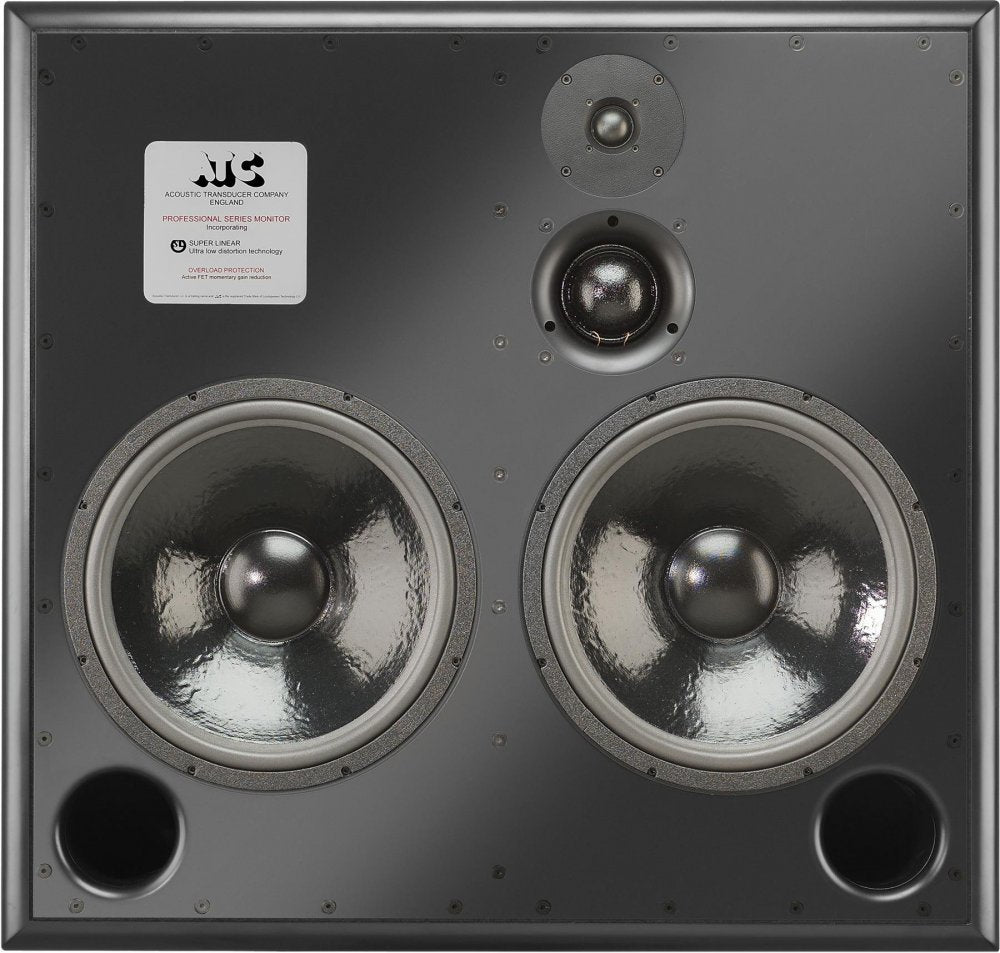

Featuring a pair of ATC 375mm bass drivers, the legendary ‘Super Dome' midrange driver and a 34mm soft dome tweeter.

• Large format main monitor.

• 34mm soft dome tweeter.

• Twin full spec "SL" 15˝/375mm bass drivers.

• ATC 75mm "Super Dome" mid driver.

• P4 rack-mount grounded source 850W class A/B amplifier.

LOUDSPEAKERS:

Drivers: HF 1.25″/34mm, Mid 3″/75mm, LF 2 x 15″/375mm

Amplitude Linearity (±2dB): 50Hz-12kHz

Cut-off Frequencies (-6dB): 25Hz, 20kHz (free standing) 20Hz, 20kHz (soffit mounted)

Horizontal Dispersion: ±80, Coherent

Vertical Dispersion: ±10, Coherent

Max. Continuous SPL (1 metre): 121dB

Crossover Frequencies: 380Hz, 3.5kHz

Dimensions (HxWxD): 884 x 925 x 460mm (34.8˝ x 36.4˝ x 18.7˝)

Weight: 87kg / 191.4lbs

P4 AMPLIFIER (STANDALONE 5U/19″ UNIT):

Audio Input: Rear panel mounted female xlr (pin 2 +)

Input Sensitivity: 2V

Input Impedance: Balanced > 10kΩ

Amplifier Output: Bass 275+275W, Mid 200W, High 100W

Filters: Even Order Critically Damped

Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
