ATC Loudspeakers SCM45A Pro (single)

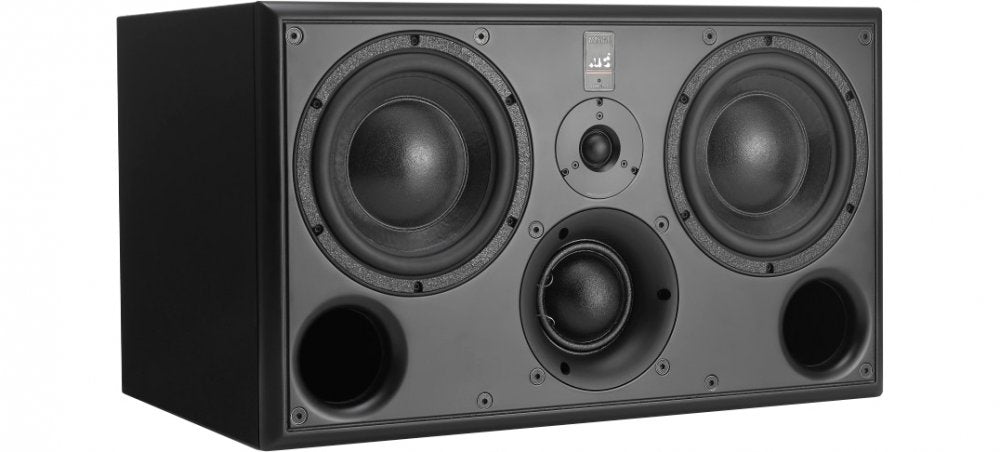

The SMC45A Pro, ATC's mid-sized three-way active loudspeaker in the SCM range, can be placed in both near- or mid-field positions. It shares many features with the SMC25A Pro, and completes ATC's professional active monitoring loudspeaker range. Producing an excelent linear response across the midrange, the 45A's design includes a second woofer for an extended bass response and increased SPL (Sound Pressure Level) capability, The proprietary dual-suspension tweeter that creates the high top-end resolution is the result of six years of research and development by ATC Managing Director Billy Woodman and R&D Engineer Richard Newman.

• Mid-size very high performance active 3-way studio monitor

• Ideally suited to:

• Critical near-field listening applications in all control rooms

• LCR surround monitoring in medium control rooms

• Surround channels in medium-to-large contol rooms

• ATC hand built 6.5/164mm carbon-paper cone bass driver.

• ATC 25mm/1" Dual Suspension Super Tweeter

• Discrete MOSFET class A/B bi-amp pack with 150W/60W/25W continuous power output

DRIVERS:

HF 1/25mm soft dome, Mid 3/75mm Soft Dome, LF 6.5/164mm short-coil carbon paper cone

AMPLITUDE LINEARITY (±2DB):

70Hz-17kHz

CUT-OFF FREQUENCIES (-6DB, FREE-STANDING):

42Hz-25kHz

DISPERSION:

±80 Coherent Horizontal, ±10 Coherent Vertical

MAX. CONTINUOUS SPL (1 METRE):

112dB

AUDIO INPUT:

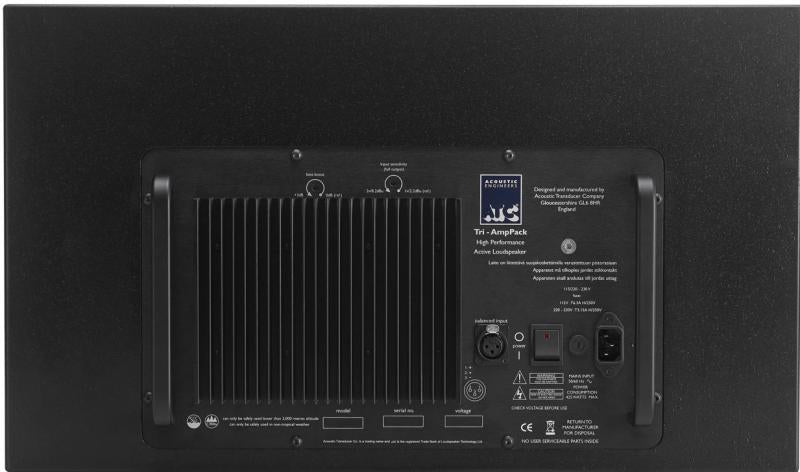

Rear panel mounted female xlr (pin 2 +)

INPUT SENSITIVITY:

1V rms (ref. full output)

INPUT SENSITIVITY TRIM:

0dB to -6dB/1V - 2V (continuously variable via rear panel trimmer)

INPUT IMPEDANCE:

Balanced > 10k

AMPLIFIER OUTPUT POWER:

Bass 150W rms, Mid 60W rms, High 25W rms

CROSSOVER FREQUENCIES:

380Hz & 3.5Khz

CROSSOVER FILTERS:

4th order critically damped with phase compensations

LOW FREQUENCY BOOST:

0dB to +3dB at 40Hz (continuously variable via rear panel trimmer)

OVERLOAD PROTECTION:

Active FET momentary gain reduction

DIMENSIONS (HXWXD):

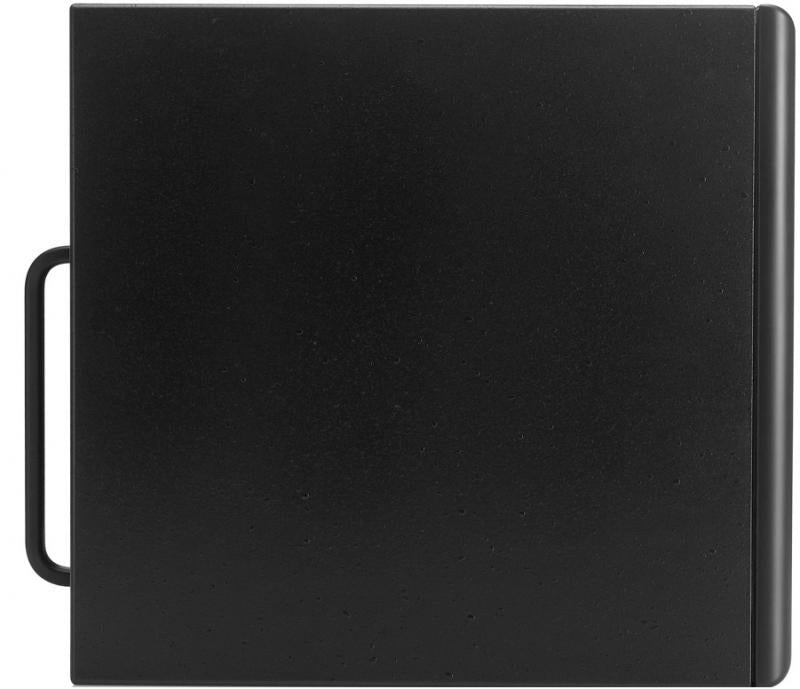

353 x 600 x 375mm (13.9 x 23.6 x 14.8). Handles add an additional 39mm/1.5 to depth.

WEIGHT:

36kg / 79.2lbs (per cabinet)
