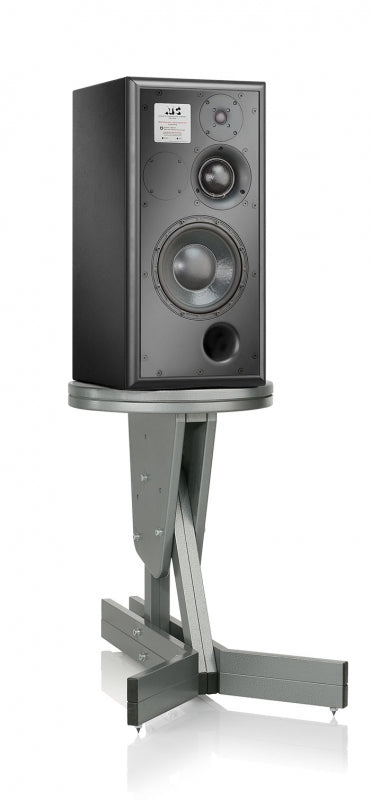

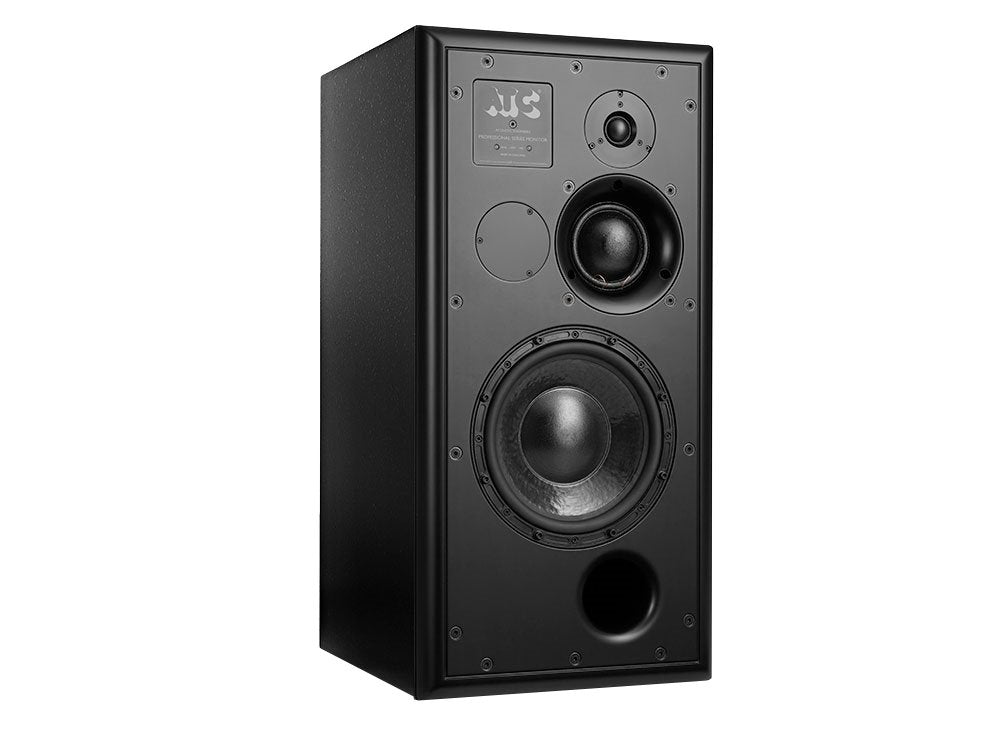

ATC Loudspeakers SCM50ASL Pro (single)

With a 234mm Super Linear bass driver and ATC's unique SM75-150S mid range soft dome driver, the active design ensures optimum matching of six MOS-FET amp blocks to the drivers, providing plenty of transient headroom and maximum SPLs of up to 112dB.

An LF contour control provides five bass boost settings, and a flat reference response.

• ATC 25mm/1" Dual Suspension 'S-Spec' Tweeter.

• Full "SL" spec 9/234mm bass driver.

• ATC 75mm "Super Dome" mid driver.

• On board grounded source 350W Tri-amp pack.

• LF contour control.

• Clip indication.

DRIVERS:

HF 25mm, Mid 75mm, LF 234mm

AMPLITUDE LINEARITY (±2DB):

70Hz-17kHz

CUT-OFF FREQUENCIES (-6DB, FREE-STANDING):

38Hz, 22kHz

HORIZONTAL DISPERSION:

±80, Coherent

VERTICAL DISPERSION:

±10, Coherent

MAX. CONTINUOUS SPL (1 METRE):

112dB

CROSSOVER FREQUENCIES:

380Hz, 3.5kHz

INPUT CONNECTORS:

Male XLR

INPUT SENSITIVITY:

1V

INPUT SENSITIVITY TRIM:

±6dB

INPUT IMPEDANCE:

Balanced > 10k

AMPLIFIER OUTPUT:

Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped

OVERLOAD PROTECTION:

Active FET momentary gain reduction plus thermal tweeter protection

FRONT PANEL INDICATORS:

Power On indicator, Gain Reduction warning

LF EQ:

+6dB @ 40Hz

DIMENSIONS (HXWXD):

716 x 351 x 400mm (28.2 x 13.8 x 18.8) Depth with amplifier at rear adds 3

WEIGHT:

49kg / 107.8lbs
