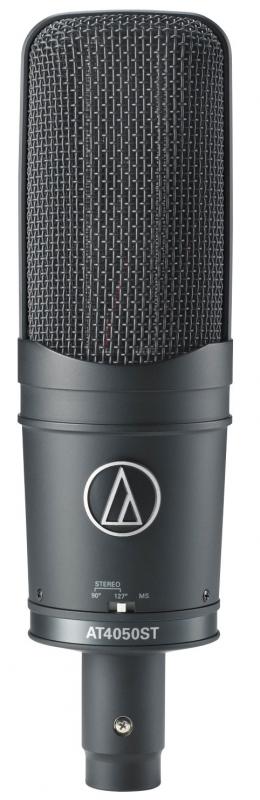

Audio Technica AT4050ST

This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone's dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.

• Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement

• Independent cardioid and figure-of-eight condenser elements

• Switch selection of Mid-Side mode and two internally matrixed stereo modes

• Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone

• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

• The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use

• Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

• Integral 80 Hz high-pass filter switch and 10 dB pad switch

• State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards

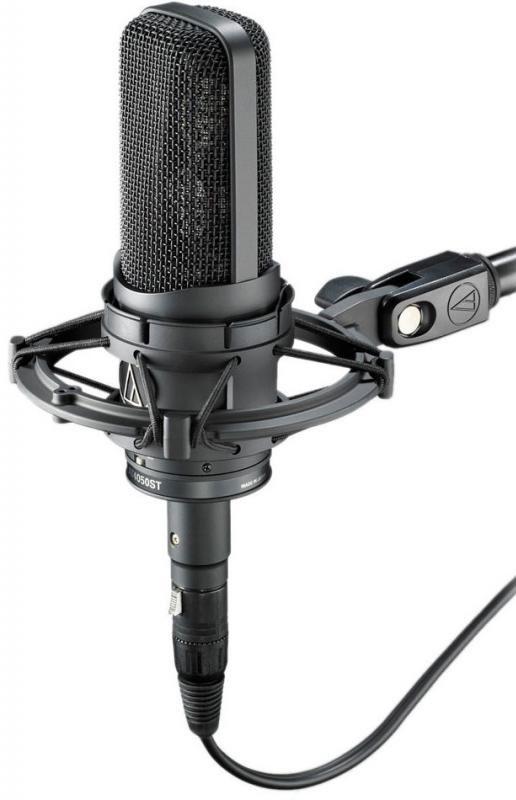

• Custom shock mount provides superior isolation

• Certified by the METAlliance (Music Engineering and Technology Alliance)

ELEMENT:

: Externally-polarized (DC bias) condenser

POLAR PATTERN:

: Cardioid and Figure-of-eight

FREQUENCY RESPONSE:

: 20-18,000 Hz

LOW FREQUENCY ROLL-OFF:

: 80 Hz, 12 dB/octave

OPEN CIRCUIT SENSITIVITY:

:

Stereo 90 : -42 dB (7.9 mV) dB re 1V at 1 Pa

Stereo 127 : -41 dB (8.9 mV) dB re 1V at 1 Pa

Mid : -36 dB (15.8 mV) dB re 1V at 1 Pa

Side : -36 dB (15.8 mV) dB re 1V at 1 Pa

IMPEDANCE:

: 50 ohms

MAXIMUM INPUT SOUND LEVEL:

:

Mid and Side : 149 dB SPL, 1 kHz at 1% T.H.D.;

159 dB SPL, with 10 dB pad (nominal)

NOISE:

:

Stereo 90 : 25 dB SPL

Stereo 127 : 16 dB SPL

Mid : 15 dB SPL

Side : 17 dB SPL

DYNAMIC RANGE (TYPICAL):

:

Mid: 134 dB, 1 kHz at Max SPL

Side: 132 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO:

:

Stereo 90 : 69 dB, 1 kHz at 1 Pa

Stereo 127 : 78 dB, 1 kHz at 1 Pa

Mid: 79 dB, 1 kHz at 1 Pa

Side: 77 dB, 1 kHz at 1 Pa

PHANTOM POWER REQUIREMENTS:

:

48V DC, 6.4 mA typical (both channels total)

SWITCHES:

:

90, 127, M-S;

Flat, roll-off;

10 dB pad (nominal)

WEIGHT:

: 517 g (18.2 oz)

DIMENSIONS:

: 193.0 mm (7.60") long, 53.4 mm (2.10") maximum body diameter

OUTPUT CONNECTOR:

: Integral 5-pin XLRM-type

CABLE:

: 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end

ACCESSORIES FURNISHED:

: AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case

AUDIO-TECHNICA CASE STYLE:

: R1

POLAR PATTERN:

: STEREO 90

POLAR PATTERN:

: STEREO 127

POLAR PATTERN:

: MID, SIDE
