Audioroot eSMART BG-DU

This product was designed for use in large sound bags or small location carts. The power distributor can be connected to any battery type (SLA, NI-MH or LI-ION) and the fuel gauge provides all the informations required to monitor the battery's state of charge (voltage, current, power, etc...).

The eSMART BG-DU uses an internal coulomb counter and a calibration routine to measure the battery's true capacity and display it's remaining capacity in real time. This power distributor is also fully compatible with our full line of Li-XXwh smart batteries. A stainless steel clip is included and can be mounted on the top or bottom of the unit for easy attachment in a sound bag.

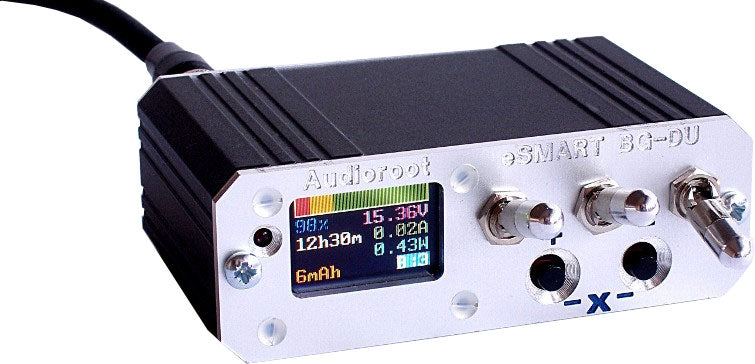

• Real time monitoring of the battery's SOC : remaining capacity (%), run time estimation, battery voltage, power consumption, power and coulomb counter

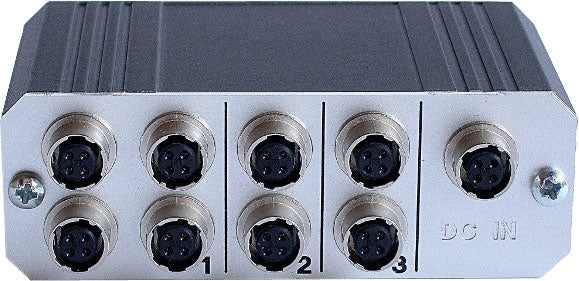

• 8 switchable outputs using 3 locking switches

• Polyswitch 2.5A resetable fuses on each output

• A blinking LED indicates when the battery capacity falls below 10 %

• Compatible with any battery ranging from 6 to 24V

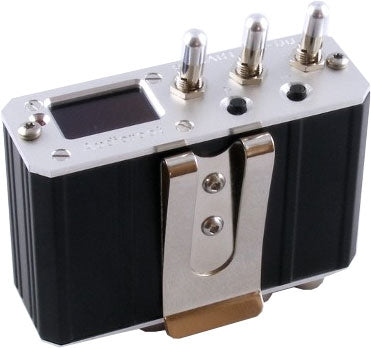

• Stainless steel clip included

• Compact and lightweight : (129g , 85x75x30mm)

IMPORTANT NOTE:

A 4 conductor battery input cable is required for eSMART operation (i.e when connecting eSMART batteries to the BG-DU). This cable is sold separately under reference eHRS4-OUT-4W. The 2 conductor Hirose battery output cable available under reference eHRS4-OUT will not enable battery data communications between the eSMART batteries and the BG-DU. Please contact your us or one of our dealers for more informations.
