Audioroot eSMART BG-DU-REG

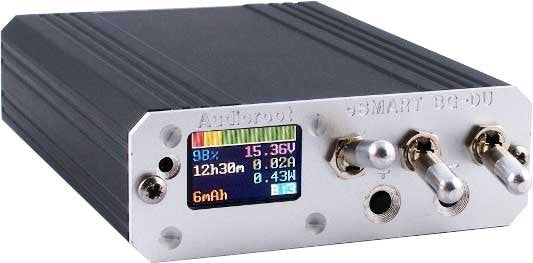

This product was designed for use in large sound bags or small location carts. The power distributor can be connected to any battery type (SLA, NI-MH or LI-ION) and the fuel gauge provides all the informations required to monitor the battery's state of charge (voltage, current, power, etc...).

The eSMART BG-DU-REG uses an internal coulomb counter and a calibration routine to measure the battery's true capacity and display it's remaining capacity in real time. This power distributor is also fully compatible with our full line of Li-XXwh smart batteries.

• Real time monitoring of the batterie's SOC : remaining capacity (%), run time estimation, battery voltage, power consumption, power and coulomb counter

• 8 switchable outputs using 3 locking switches

• Polyswitch 2.5A resetable fuses on each output

• A blinking LED indicates when the battery capacity falls below 10 %

• Compatible with any battery ranging from 11 to 18V

• Hirose locking connectors

• Connecteurs de sorties Hirose 4

• Compact and lightweight : (300g , 85x120x30mm)

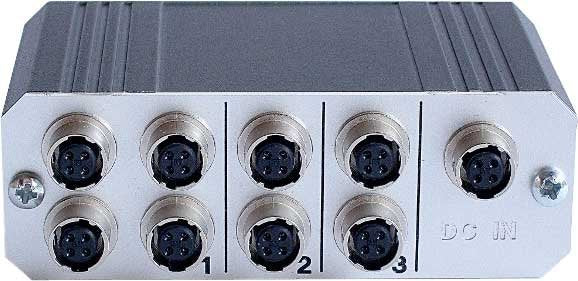

• 2 x fully isolated 12V/12W outputs on 2 Hirose connectors - these outputs can help resolving ground loops issues

• 1 x 9V/18W output on 2 Hirose connectors - these outputs can be used to power wireless receivers and transmitters

IMPORTANT NOTE :

A 4 conductor battery input cable is required for eSMART operation (i.e when connecting eSMART batteries to the BG-DU-REG). This cable is sold separately under reference eHRS4-OUT-4W. The 2 conductor Hirose battery output cable available under reference eHRS4-OUT will not enable battery data communications between the eSMART batteries and the BG-DU-REG. Please contact us or your dealer for more informations.

NOTE TO HAWK-WOODS PRODUCTS USERS :

The wiring of Hawk-Woods products is incompatible with the BG-DU or BG-DU-REG out of box. On these products the internal pins of the Hirose male plugs are tied together 2 by 2 : pins 1 and 2 / pins 3 and 4. When using the BG-DU or BG-DU-REG pins 2 and 3 of the male Hirose plug connected to the unit's input must be left unconnected as these are used for communication with smart batteries. Hawk-Woods users can solve this issue by rewiring the male Hirose plug (leaving pins 2 and 3 un-connected) or by removing 2 solder jumpers inside the BG-DU or BG-DU-REG. Please contact us for more details.

MAX BATTERY CAPACITY :

The BG-DU-REG can handle standard (non smbus) batteries from other manufacturers up to 40Ah. A special version capable of handling batteries up to 200Ah can be delivered upon request.
