Audioroot vmDBOX-HRS-cc

The Audioroot vmDBOX-HRS-cc is an ultra-small, DC power distribution box with 6 DC outputs and an integrated multi function meter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. 5 outputs are protected with a 2.5 amp resettable fuse. One output is left unfused.

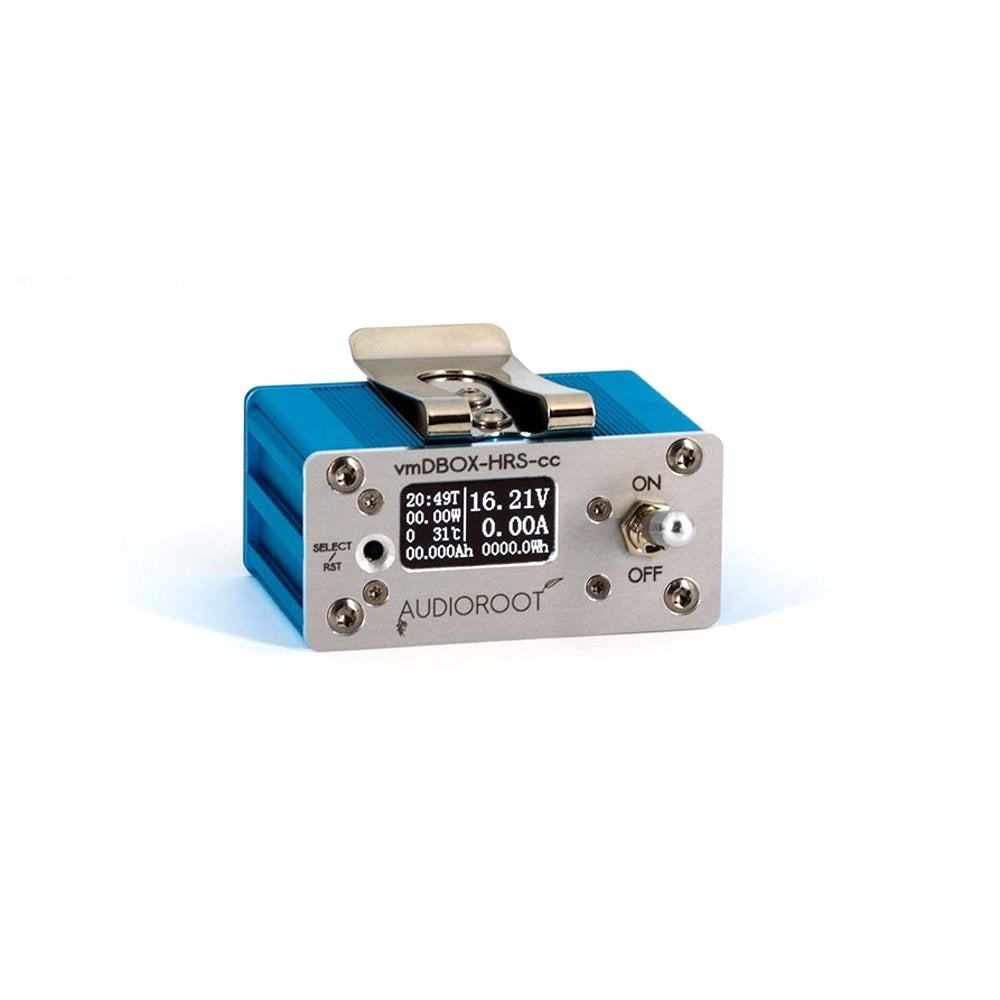

• Integrated white OLED display with voltmeter, ampmeter, Ahmeter, wattmeter and timer for battery or power supply monitoring

• 6 power outputs switchable with one rugged locking switch

• 5 x outputs with 2.5A polyswitch resetable fuses

• 1 x unprotected output

• 1 x belt clip mountable on top or bottom of the housing

• Compatible with any battery or power supply ranging from 5.0V to 24V DC

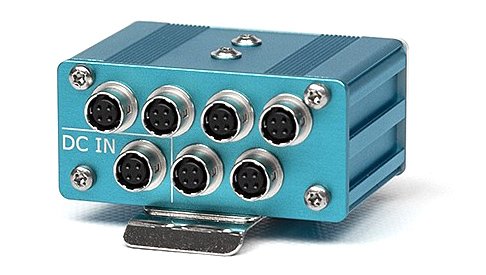

• Hirose locking connectors

• Very low power consumption : the vmDBOX-HRS-cc does not affect the battery's autonomy

• Compact and lightweight : 119g / 65 x 50 x 30 mm

• Maximum recommended total current load : 7A
