Audix DPELITE8

LIVE SOUND OR RECORDING The DP ELITE 8 drum pack is a premium ensemble of microphones designed to mic a five-piece kit with accuracy and fine control. Kick, snare, rack toms and floor tom mics feature Audix VLMTM capsule technology for natural and precise sound reproduction in high SPL applications. A dedicated hi-hat mic and overhead cymbal mics capture complex timbres and wide dynamic ranges. Included are DVICE rim mounts eliminating the need for bulky mic stands.

Professional set of 8 drum mics for stage or studio

· Complete solution for a 5 piece kit

· Includes all mounting clips and rugged aluminum

road case

CLOSE MIKING The D6 for kick drum and the i5 for snare are considered must-haves for every drummer. The kick and snare are considered the core of any drum kit and the foundation for every groove. Close miking insures that they will be captured in the mix. If either the kick or the snare is unable to be heard, there is simply no groove. Being high SPL dynamic microphones, the D6 and i5 excel at "close miking". This miking technique is required in order to capture the attack and percussive sound of the drum. By having the mic close to the source of the sound, it helps to isolate and control the sound of each drum.

OVERHEAD MIKING (ambient) Supporting the idea that "less is more", many engineers will use just two overhead mics to capture the natural sound of the complete drum kit. With two overhead mics, positioned correctly, it is absolutely true that you can capture the transients, tonality and balance of the kit in a completely phase-coherent manner. The SCX1 condenser microphone with a 21mm gold sputtered diaphragm, is designed with overhead applications in mind. Due to its cardioid pickup pattern, high sensitivity and pencil design, the two SCX1 mics can be easily positioned overhead to provide a nice stereo image of the entire drum kit.

THE BLEND With contemporary music and with the volumes typically generated on stage, it is more practical and effective to create a blended effect of close miking and stereo image of the entire kit from overhead. The D6 will help provide the earthshaking lows and the attack of the kick; the i5 will reinforce the depth and crack of the snare; the D2 and D4 capture the attack and decay of rack and floor toms; the SCX1HC is the quinessential microphone for hi-hat. With the SCX1 for overheads, drums will maintain their sound integrity and critical presence for both stage and studio regardless of the size of the room or PA system.

I5:

• Transducer: Dynamic VLM Type B

• Frequency Response: 50 Hz - 16 kHz

• Polar Pattern: Cardioid

• Output Impedance: 280 ohms

• Sensitivity: 1.6mV / Pa @ 1k

• Maximum SPL: >140dB

• Off-axis rejection: >23dB

• Power Requirements: None

• Materials/Finish: Zinc Alloy / Black Finish

• Weight: 248 g / 8.7 oz

• Length: 141mm / 5.6 in

D2:

• Transducer: Dynamic VLM Type B

• Frequency Response: 68 Hz - 18 kHz

• Polar Pattern: Hypercardioid

• Output Impedance: 280 ohms

• Sensitivity: 1.2mV / Pa @ 1k

• Maximum SPL: >144dB

• Off-axis rejection: >30dB

• Power Requirements: None

• Materials/Finish: Black Hard Coat

• Weight: 128 g / 4.5 oz

• Length: 100 mm / 3.9 in

D4:

• Transducer: Dynamic VLM Type D

• Frequency Response: 40 Hz - 18 kHz

• Polar Pattern: Hypercardioid

• Output Impedance: 280 ohms

• Sensitivity: 1.4mV / Pa @ 1k

• Maximum SPL: >144dB

• Off-axis rejection: >20dB

• Power Requirements: None

• Materials/Finish: Black Hard Coat

• Weight: 128 g / 4.5 oz 2

• Length: 100 mm / 3.9 in

D6:

• Transducer: Dynamic VLM Type E

• Frequency Response: 30 Hz - 15 kHz

• Polar Pattern: Cardioid

• Output Impedance: 280 ohms

• Sensitivity: .8mV / Pa @ 80Hz

• Maximum SPL: >144dB

• Off-axis rejection: >20dB

• Power Requirements: None

• Materials/Finish: Machined Aluminum / Black Finish

• Weight: 254 g / 8.9 oz

• Length: 117 mm / 4.6 in

SCX1C / SCX1HC:

• Transducer: Pre-Polarized Condenser

• Frequency Response: 40 Hz - 20 kHz

• Polar Pattern: Cardioid, Hypercardioid

• Output Impedance: 200 ohms

• Sensitivity: 26mV (C), 17 mV (HC) / Pa @ 1k

• Maximum SPL: ≥130 dB

• Off-axis rejection: >120 dB

• Power Requirements: 48-52 V phantom

• Materials / Finish: Machined Brass / Black Finish

• Weight: 114 g / 4 oz

• Length: 104 mm / 4.1 in

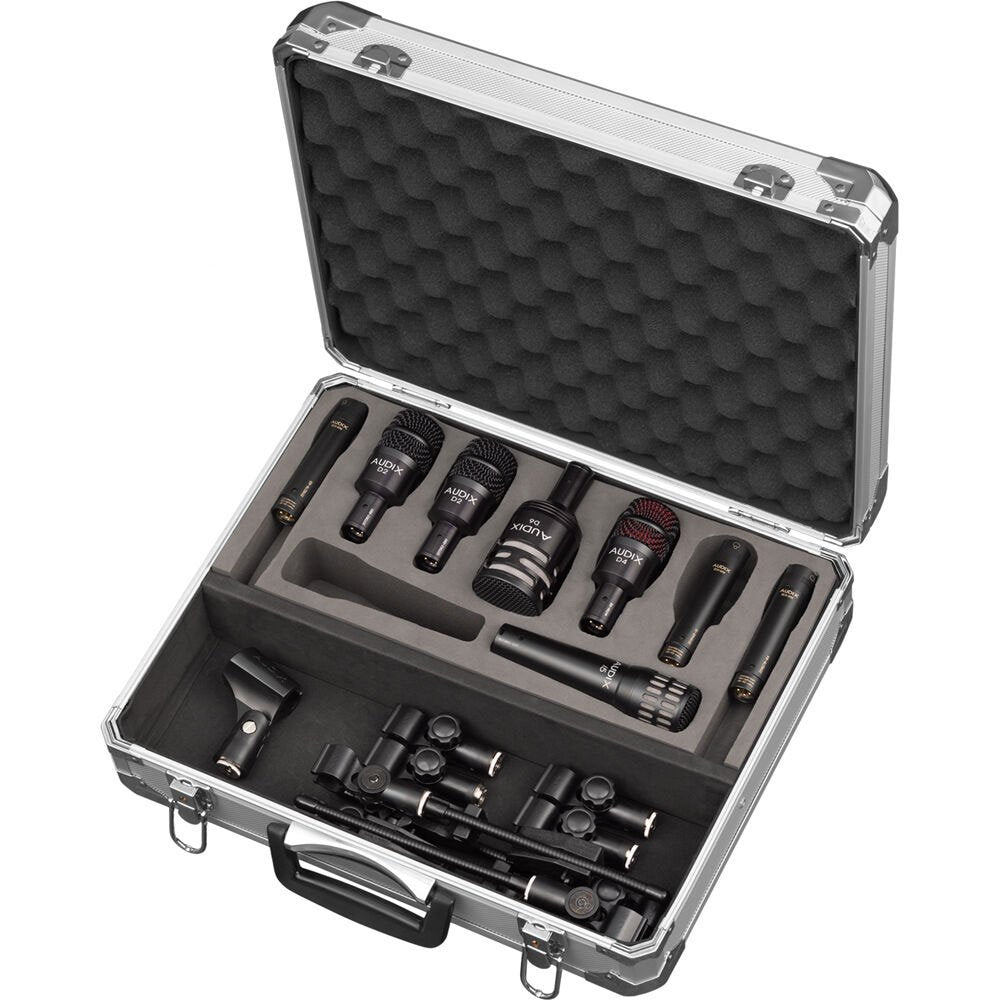

INCLUDES:

• Aluminum Road Case

• 1 x i5 Snare Mic

• 2 x D2 Rack Tom Mics

• 1 x D4 Floor Tom Mic

• 1 x D6 Kick Drum Mic

• 2 x SCX1C Overhead Mics

• 1 x SCX1HC Hi-hat Mic
