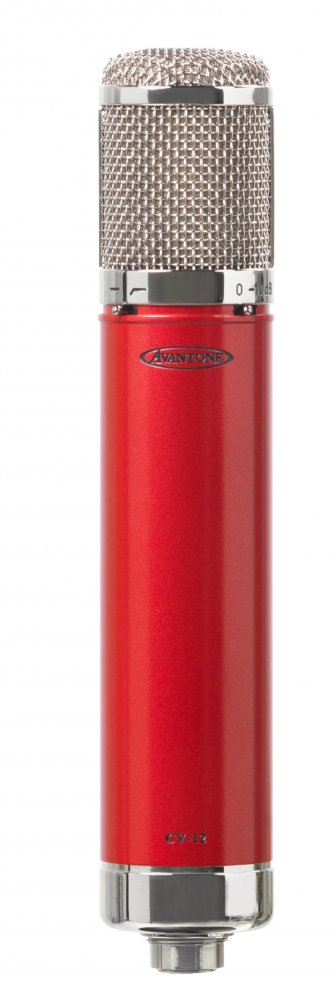

Avantone CV-12

The Avantone "Cabernet (C-series)" mics are designed to offer true professional performance. They will meet or surpass the performance and specifications of much higher priced mics.

The CV-12 is truly a gorgeous looking and sounding microphone. The design, character and performance is comparable to some of the fine vintage tube mics of the 1950's & 1960's...but at a fraction of their cost!

The versatile CV-12 mic is able to produce professional results with a warm, pleasing sonic character. Our rugged CV-12 microphone body and capsule assembly are precision machined of brass. Aesthetically, it features an elegant Cabernet Wine-Red finish, accented with polished nickel trim and grill. The transformer coupled tube circuitry has its origins in famous European vintage designs. Any studio can proudly offer the CV-12 as a primary vocal mic...It exudes class visually as well as sonically. Manufactured using the finest materials yielding a very solid feel, superb structural integrity and rugged reliability.

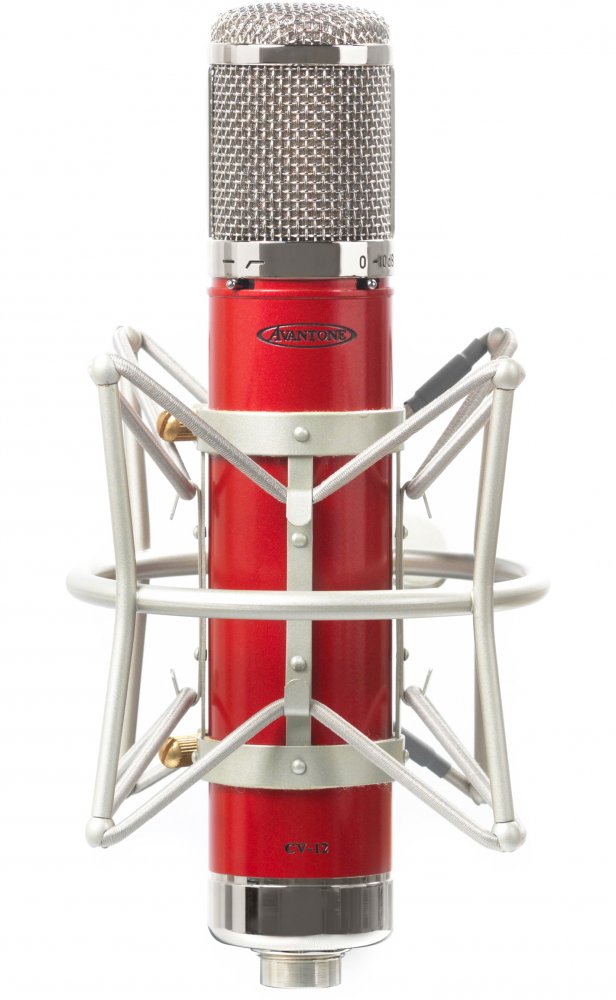

The versatile CV-12 mic is able to produce professional results with a warm, pleasing sonic character. The included Custom Retro Shockmount is superb in allowing a precise positioning of the mic while inhibiting the transfer of unwanted vibrations up into the mic. This isolation allows for superior professional results.

• 9-Pattern Tube Microphone w/ dual 32mm gold sputtered thin Mylar capsules

• -10 dB pad & 80 Hz high pass filter

• Hand selected Russian made 6072A Tube

• Each CV-12 Mic has a serial number

USES INCLUDE:

• Studio vocals, acoustic guitar, mandolin, drum overheads, room mic, piano

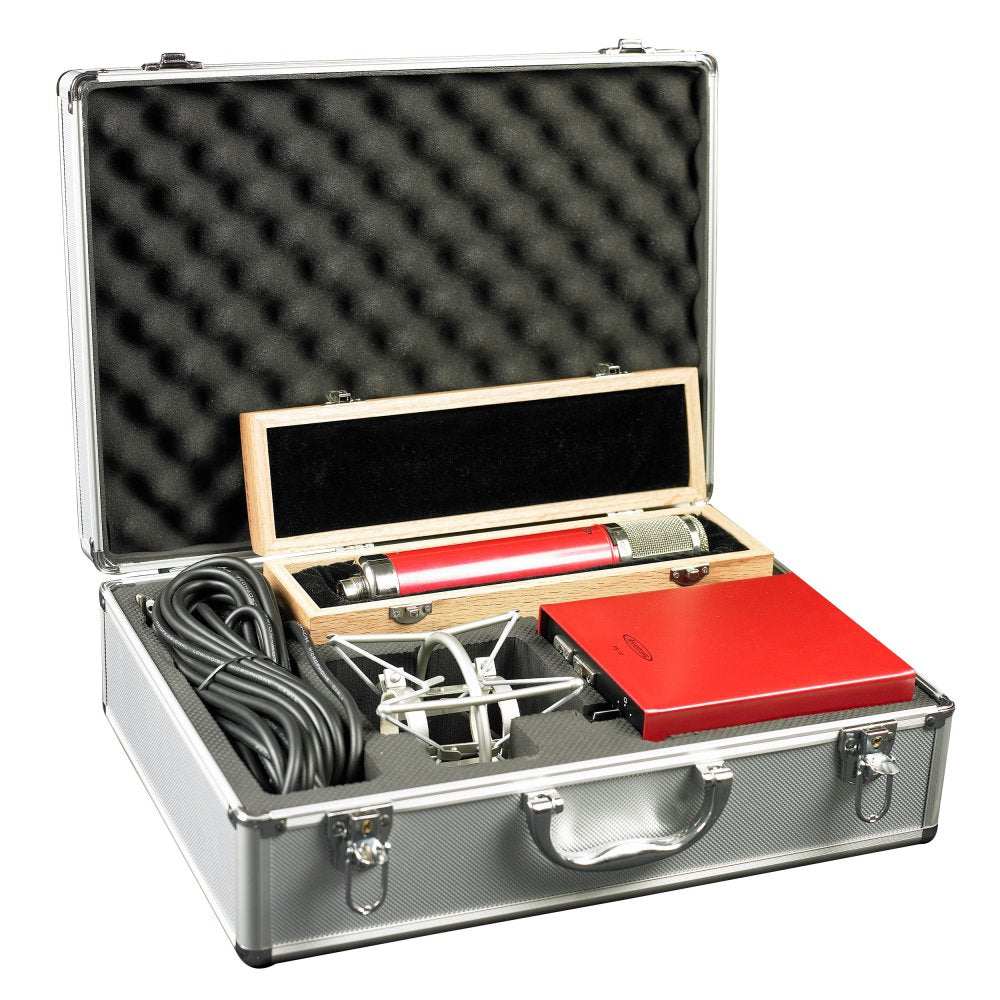

STANDARD INCLUDED ITEMS:

• Avantone CV-12 Tube Microphone

• Avantone Custom Retro Shockmount W/ Extra Elastic bands

• Avantone PS-12 Multi-Pattern Power supply with cables

• Elegant padded genuine wooden mic box

• Premium Grade 6072A Tube

• Padded aluminum storage / travel case

• Owner's Manual

TYPE:

Tube-Type True Condenser Microphone

CAPSULE:

Dual-sided 32mm center-terminated gold-sputtered Mylar (6 micron)

POLAR PATTERNS:

9 patterns selectable at PS-12 power supply

FREQUENCY RESPONSE:

20Hz - 20kHz +/- 3dB

OUTPUT IMPEDANCE:

<=250 Ohms / transformer isolated

MAXIMUM SPL:

136dB (0.5% THD @1000Hz) 146dB with pad engaged

EQUIVALENT NOISE LEVEL:

<17dB

S/N RATIO:

78dB

SENSITIVITY:

-35dB

OUTPUT CONNECTOR:

Male XLR 7 pin w/ special power supply & cables

TUBE TYPE:

6072A

HIGH-PASS SWITCH:

80 Hz 6dB/octave Switch

ATTENUATION SWITCH:

-10dB Switch

POWER REQUIREMENTS:

dedicated PS-12 Power Supply w/ selectable 115/230 VAC capability

FINISH:

Polished Nickel trim / Metallic Cabernet Red Body

WEIGHT:

.8 kgs / 1.8 lbs

DIMENSIONS:

237mm x 46mm / 9.5" x 1.8"
