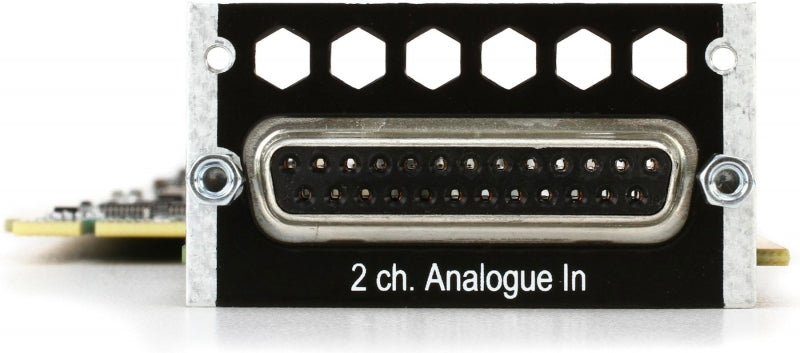

Avid MTRX - 2 Mic/Line Pristine AD Card

About Pro Tools MTRX Pro Tools | MTRX is fully modular, enabling you to customize it with up to eight analog and/or digital audio I/O option cards to create a 64-channel interface for Pro Tools | HD. You can install a maximum of six AD and/or DA cards to support up to 48 analog channels. Or design an all-digital box-or any combination between. Just start with the Pro Tools | MTRX base unit and go from there. Or design an all-digital box-or any combination between.

Pro Tools | MTRX 8 Line Pristine AD Card Add eight channels of line-level analog inputs.

Pro Tools | MTRX 2 Mic/Line Pristine AD Card Add two channels of analog inputs and mic preamps with relay-based gain circuit-an ideal low-cost option for talkback and tracking.

Pro Tools | MTRX 8 Mic/Line Pristine AD Card Add eight channels of analog inputs and mic preamps with relay-based gain circuit.

Pro Tools | MTRX 8 Pristine DA Card Add eight channels of line-level analog outputs with an output level control.

Pro Tools | MTRX 8 AES3 I/O Card Add eight line AES3 inputs and outputs (16 channels), with built-in sample rate conversion.

Pro Tools | MTRX Dual SDI/HD/3G Card Add 2 x 16 channels of SDI/HD/3G connections (embed/de-embed) with built-in sample rate conversion.

Pro Tools | MTRX 64-Channel IP Audio Dante Module Add up to 64 channels of low-latency digital audio using Dante (64 channels at 44.1 kHz or 16 channels at 192 kHz).

Pro Tools | MTRX Dual MADI I/O Card Add 128 channels of MADI inputs and outputs through two optical SFP ports.

Pro Tools | MTRX MADI Module for Base Unit Add an additional one or two 64-channel I/O coaxial or optical MADI module to the chassis.

ANALOG INPUTS 2 MIC/LINE:

Mix preamps: 2

Input gain: Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy

Max input level: Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB

Mic equivalent input noise (A): < -133 dB

Sampling, resolution: 5-bit sigma/delta @ 5.645 or 6.144 MHz, 24-bit PCM

DSD sample rates: 2.8224 and 5.6448 Mhz (64 and 128 fs)

THD+N (A): < -117 dB @ -3 dB FS / 0.00014%

Crosstalk: < -120 dB

Input Impedance: > 10 k Ohm

SYSTEM REQUIREMENTS:

Pro Tools | HDX or Pro Tools | HD Native system running Pro Tools | HD 12 or higher software
