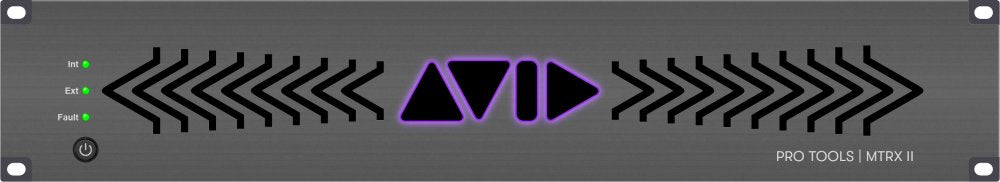

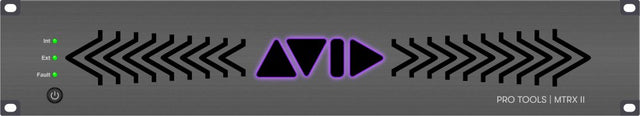

Avid MTRX II - Base unit w/DigiLink, Dante 256 and SPQ

The pinnacle of audio fidelity and flexibility Pro Tools | MTRX™ II is a powerful studio centerpiece that builds on the I/O, routing, and monitoring versatility of its predecessor. With integrated DigiLink™, Dante, MADI, and SPQ Speaker Processing, eight I/O card slots, and 256 channels of optional Thunderbolt™ 3 connectivity, you can take on the largest music and audio productions with ease.

STREAMLINE YOUR STUDIO WITH THE I/O YOU NEED Pro Tools | MTRX II not only comes with 64 channels of built-in DigiLink I/O, 256 channels of Dante, and 64 channels of MADI, it's fully modular. Configure its eight card slots with all the analog, digital, and additional DigiLink, Dante, and other I/O you need (the same option cards as MTRX) to support any artist, ensemble, or workflow. Add Thunderbolt 3 connectivity. Replace multiple single-format interfaces taking up rack space. Route any signal between different I/O formats. And connect multiple HDX systems and DAWs together with a single interface.

GET UNPARALLELED SOUND QUALITY AND CLARITY Building on the MTRX legacy, MTRX II delivers the cleanest, most transparent, and highly detailed AD and DA conversion of any audio interface. This enables you to capture vocals and acoustic instruments without any coloration - exactly as the sources sound - and then monitor your mix in all its sonic glory through some of the highest quality audio converters in the industry.

MONITOR AUDIO IN MORE WAYS With integrated SPQ Speaker Processing, DADman Pro | Mon for monitor calibration and control, and the expanded 512 x 64 summing mixer, MTRX II will satisfy all of your monitoring needs. Calibrate your speakers to compensate for their acoustic response in any room with up to 16 filters per monitor channel. And get up to 128 channels of room correction, each with adjustable delay and filters, from stereo to multistem Dolby Atmos summing.

CONNECT TO ANY DANTE NETWORK With 256 integrated Dante channels, you can connect your Pro Tools | HDX™ system to any Dante network - the industry's preferred audio-over-IP solution. Not only is Ethernet economical - especially where long cable runs are required - it allows for a more versatile bi-directional workflow that leverages your facility's Ethernet infrastructure to route audio between multiple rooms and devices.

CONNECT TO PRO TOOLS, CORE AUDIO DAWS, AVID CONTROL SURFACES, AND OTHER STUDIO DEVICES WITH BUILT-IN I/O AND MONITOR CALIBRATION (OR USE IT STANDALONE):

• 64 channels of DigiLink I/O

• 256 channels of Dante I/O

• 64 channels of MADI I/O

• Word Clock I/O

• 128 channels of SPQ Speaker Processing

• Customize the interface with all the I/O you need"including mic/line,

• Thunderbolt 3, AES3, and additional DigiLink, Dante, and more - through eight option card slots

• Capture audio in the highest sound quality with renowned DAD mic preamps and AD/DA converters

• Set up a low-latency, 256-channel native Pro Tools or other DAW system with the Thunderbolt 3 option

• Calibrate and control MTRX II with the included DADman software and Pro | Mon Monitor Control

• Route audio to any connected device across your facility with the 4,096 x 4,096 router

• Accommodate a full theatrical Dolby Atmos configuration with the 512 x 64 summing mixer

• Take remote control of all sources with Avid S6™ and other EUCON™-enabled control surfaces

ANALOG AND DIGITAL I/O:

CONFIGURABILITY:

• Fully customizable I/O with eight option card slots; install up to eight total analog, DigiLink, and/or digital I/O cards

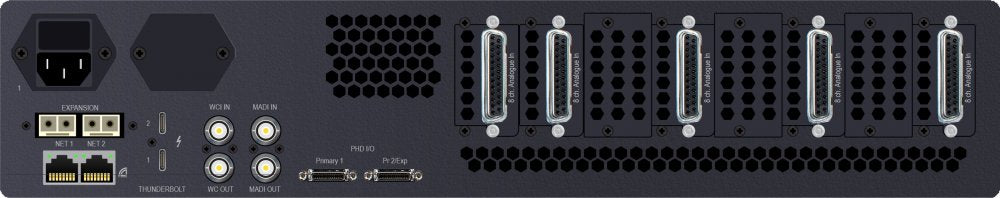

BUILT-IN I/O:

• 64 channels of DigiLink I/O (via two 32-channel DigiLink Mini ports) at all sample rates

• 64 channels of MADI I/O at 44.1/48 kHz, 32 channels at 88.2/96 kHz, or 12 channels at 176.4/192 kHz

• 256 channels of Dante I/O at 44.1/48 kHz, 128 channels at 88.2/96 kHz, or

• 64 channels at 176.4/192 kHz (IP core)

OPTIONAL I/O (SOLD SEPARATELY):

• 8 Mic/Line Pristine AD input card (DB25)

• 2 Mic/Line Pristine AD input card (DB25)

• 8 Line Pristine AD input card (DB25)

• 8 Pristine DA output card (DB25)

• 64-channel DigiLink I/O card (two DigiLink Mini ports) at all sample rates

• Thunderbolt 3 Option Module (enables up to 256 channels of native low-latency I/O at all sample rates to Pro Tools and other Core Audio DAWs)

• 128-channel IP Audio Dante card with built-in SRC

• 128-channel Dual MADI I/O card

• 8 AES3 I/O card (16 mono channels)

• 2 x 16-channel Dual SDI/HD/3G card with built-in SRC

MONITORING AND ROUTING:

DIGITAL CROSS-POINT MATRIX (INPUT TO OUTPUT ROUTING):

• 4,096 x 4,096

SUMMING MATRIX WITH MONITOR PROFILES:

• 512 x 64 (supports full theatrical Dolby Atmos mixing)

• Monitor Groups

• Fold Downs

• Group Formats

ROOM CALIBRATION:

• Built-in SPQ speaker processing with 256 filters on 16 channels; delay management adjustable up to 150 ms per channel

ADDITIONAL SPECIFICATIONS:

SUPPORTED DAWS:

• Pro Tools, Logic Pro, Cubase, and other Core Audio workstations

EUCON INTEGRATION:

• Yes

SYSTEM SYNC:

• Word Clock/video black burst (VBB) via BNC connectors, Dante Sync, Digital Inputs

SUPPORTED SAMPLE RATES:

• 44.1 kHz"384 kHz

CHASSIS:

• 2U 19" rack-mountable unit

WHAT'S INCLUDED:

• Pro Tools | MTRX II base unit

• Pro | Mon 3 monitoring control

• DADman software

• AC power cable
