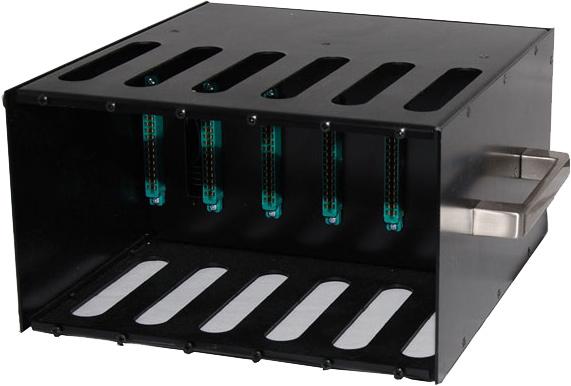

BAE 6 Module Lunchbox - With PSU and 48v

IS IT HANDWIRED DOES IT HAVE A REMOTE PSU The benefit of having something handwired over a pcb is that if you plug and unplug something too many times, the circuit board traces can break. When its handwired the wire flexes so this will never be a problem. Also this makes repinning a breeze as you just move one wire after another. Not possible on a circuit board.

ANOTHER MAJOR PLUS OF OUR RACKS IS THE OPTION OF ADDING JENSEN LINE TRANSFORMERS. As you know some modules are unbalanced and you dont want to loose 6dbs.

The MOST important thing about these racks is the power supply. As mentioned not only are we tendng to our 312A here but there are a few modules out there that draw a lot of current. Not a problem with this upgraded psu that was designed by Avedisaudio. Each rail offers 1.5 amps which will handle anything you throw at it.

Not only is the psu important but , because it is remote you will never have to worry about the micpre nearest the the psu picking up radiation (noise).

• Strong steel chassis - not aluminium

• Shielded wires on individual connectors for serviceability- no PCBs

• XLR inputs and outputs

• Remote power supply keeps power transformer interference away from modules

POWER OUTPUT:

+/- 16 VDC 1.6A

48VDC .1A

POWER REQUIREMENTS:

115/230 VAC, 36W

WEIGHT (EMPTY):

8 LBS / 3.63 KG

DIMENSIONS IN INCHES:

9.25W x 5.5L x 10D

19W x 5.5L x 10D
