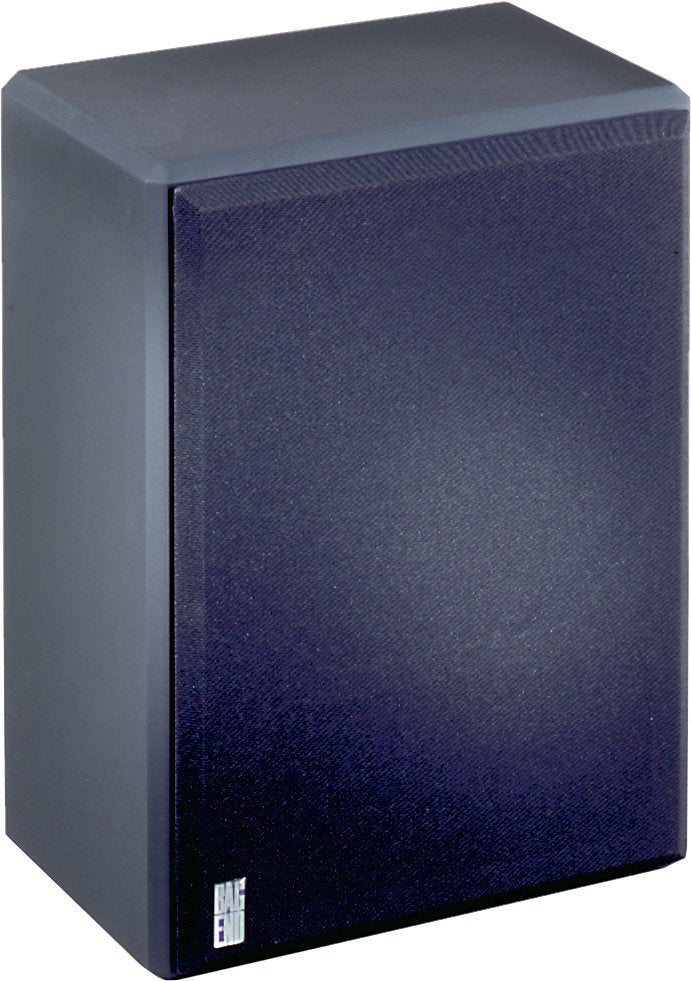

Bag End M-6

Designed as a Nearfield Monitor the M-6 offers accurate time and frequency information within the near field listening area. Despite its small size it has high acoustic output and unsurpassed clarity and resolution of detail. The wide uniform dispersion expands the sweet spot to allow 2 people to sit side by side in the near field and experience the same frequency response. Attachment points are provided for Bag End mounting bracket (BRKT-1) and other popular mounting hardware.

• Single 6.5 2-Way Time Align Coaxial Studio Monitor

• Internal Passive Crossover, External DSP Not Required

• Configured For Studio Installation Applications

• Black Textured Finish, 14"h x 9"w x 9"d, 15 Lbs

SYSTEM TYPE:

2-way coaxial sealed 0.4 ft3

ENCLOSURE:

3/4" MDF

FINISH:

Black Ro TexTM True water born environmental finish

GRILLE:

Black nylon cloth over wood frame

LOW FREQUENCY COMPONENTS:

Low/Mid Frequency Transducer, 6.5" Cone, 1.5" Voice coil

HIGH FREQUENCY COMPONENTS:

1" Soft Dome Coaxially Mounted Neodymium Tweeter

INPUT CONNECTOR:

5-way binding posts

CROSSOVER TYPE:

Passive Time-Align equalizer filter @ 3.5 kHz

TIME OFFSET BETWEEN DRIVER:

< ± 25 Microseconds 300Hz to 10kHz

SENSITIVITY:

87 dB SPL (2.83 V@ 1m)

FREQUENCY RESPONSE:

60 Hz to 20 kHz ±3 dB

LOW FREQUENCY LIMIT:

45 Hz (-10dB)

POWER HANDLING:

90 W continuous (AES) 180 W program

RECOMMENDED AMPLIFIER POWER:

90 to 180 W at rated impedance

RATED IMPEDANCE:

8 Ohms

DISTORTION:

Less than 3% THD or IMD (94 dB SPL @ 1m)

RECOMMENDED HIGH PASS FILTER:

50 Hz Butterworth 12 dB/octave

POLARITY:

A positive asymmetrical signal applied to the + terminal will result in a positive asymmetrical acoustical pressure

DIMENSIONS:

14"h x 9"w x 9"d

36 cm x 23 cm x 23 cm

WEIGHT:

15 lbs 7 kg

CUSTOM FINISHES:

Optional custom finishes include standard white, unfinished ready to paint ,high gloss automotive paint and outdoor weatherproof treatment

APPLICATIONS:

Recording Studio Nearfield Monitor

Screening Room

Surround Monitoring

Reference Home Listening Systems

Laboratory Reference System
