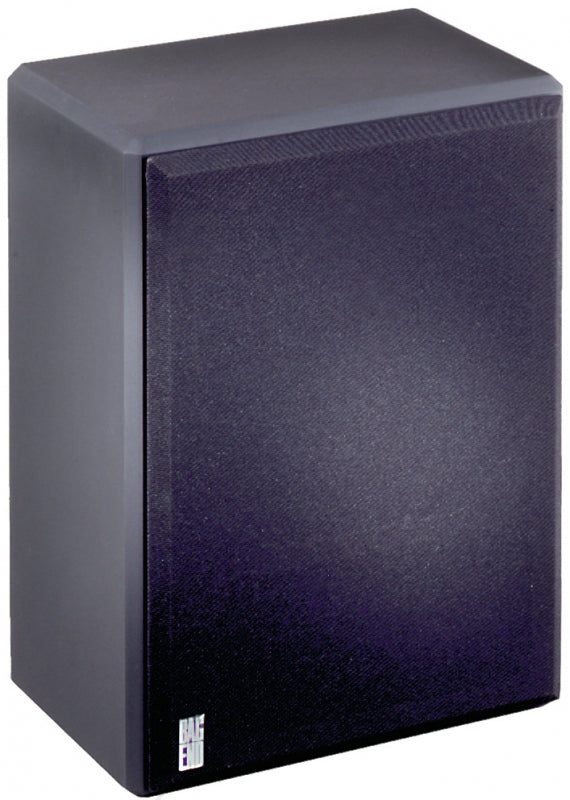

Bag End PM-6

Designed as a Nearfield Monitor the PM-6 offers accurate time and frequency information within the near field listening area. Despite its small size it has high acoustic output and unsurpassed clarity and esolution of detail. The Coaxial Design insures uniform response in the horizontal and vertical position. The wide uniform dispersion expands the sweet spot to allow 2 people to sit side by side in the near field and experience the same frequency response.

• Single 6.5 2-Way Time Align Coaxial Studio Monitor

• Includes Internal Amplifier

• Configured For Studio Installation Applications

• Black Textured Finish, 14"h x 9"w x 9"d, 18 Lbs

SYSTEM TYPE:

2-way coaxial sealed 0.4 ft

ENCLOSURE:

3/4" MDF

FINISH:

Black Ro Tex True water born environmental finish

GRILLE:

Black nylon cloth over wood frame

LOW FREQUENCY COMPONENTS:

Low/Mid Frequency Transducer, 6.5" Cone, 1.5" Voice coil

HIGH FREQUENCY COMPONENTS:

1" Soft Dome Coaxially Mounted Neodymium Tweeter

INPUT CONNECTOR:

3 pin female XLR

INPUT IMPEDANCE:

10K Ohms

INPUT CAL SENSITIVITY:

+4 dBu

MAXIMUM CONTINUOUS AMPLIFIER POWER:

150 W into 8 Ohms

HIGH PASS FILTER:

None

OVERLOAD PROTECTION:

None

LED INDICATORS:

Green - On

MAINS VOLTAGE REQUIREMENTS:

120 v or 230 v internally switchable

CROSSOVER TYPE:

Passive Time-Align equalizer filter @ 3.5 kHz

TIME OFFSET BETWEEN DRIVER:

< ± 25 Microseconds, 300Hz to 10kHz

SENSITIVITY:

87 dB SPL (2.83 V @ 1m)

FREQUENCY RESPONSE:

60 Hz to 20 kHz ±3 dB

LOW FREQUENCY LIMIT:

45 Hz (-10dB)

DISTORTION:

Less than 3% THD or IMD (94 dB SPL @ 1m)

RECOMMENDED HIGH PASS FILTER:

50 Hz Butterworth 12 dB/octave

POLARITY:

A positive asymmetrical signal applied to pin 2 will result in a positive asymmetrical acoustical pressure

DIMENSIONS:

14"h x 9"w x 9"d, 36 cm x 23 cm x 23 cm

WEIGHT:

18 lbs, 8 kg

CUSTOM FINISHES:

Optional custom finishes include standard white, unfinished ready to paint or high gloss automotive paint

APPLICATIONS:

Recording Studio Nearfield Monitor Surround Monitoring

Laboratory Reference System

DESCRIPTION

Screening Room

Reference Home Listening Systems
