Clear-Com CC-28

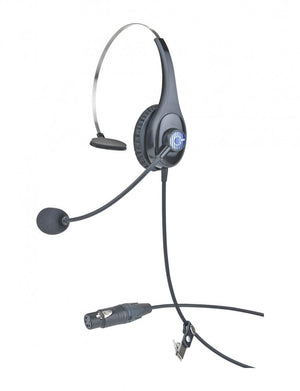

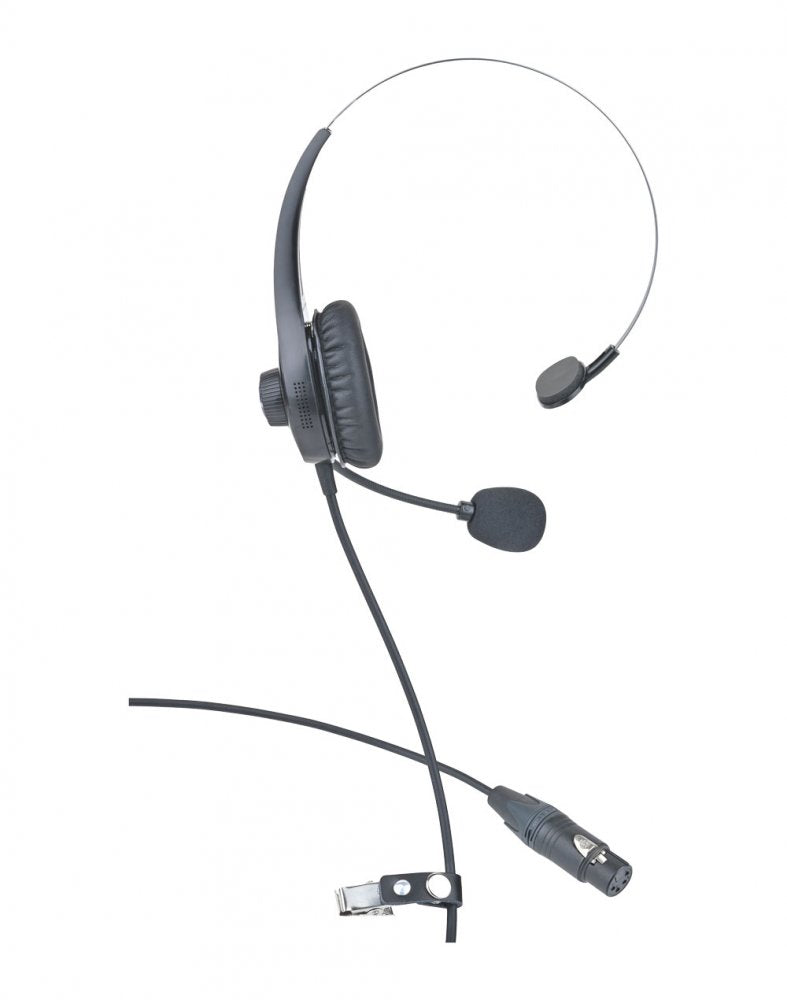

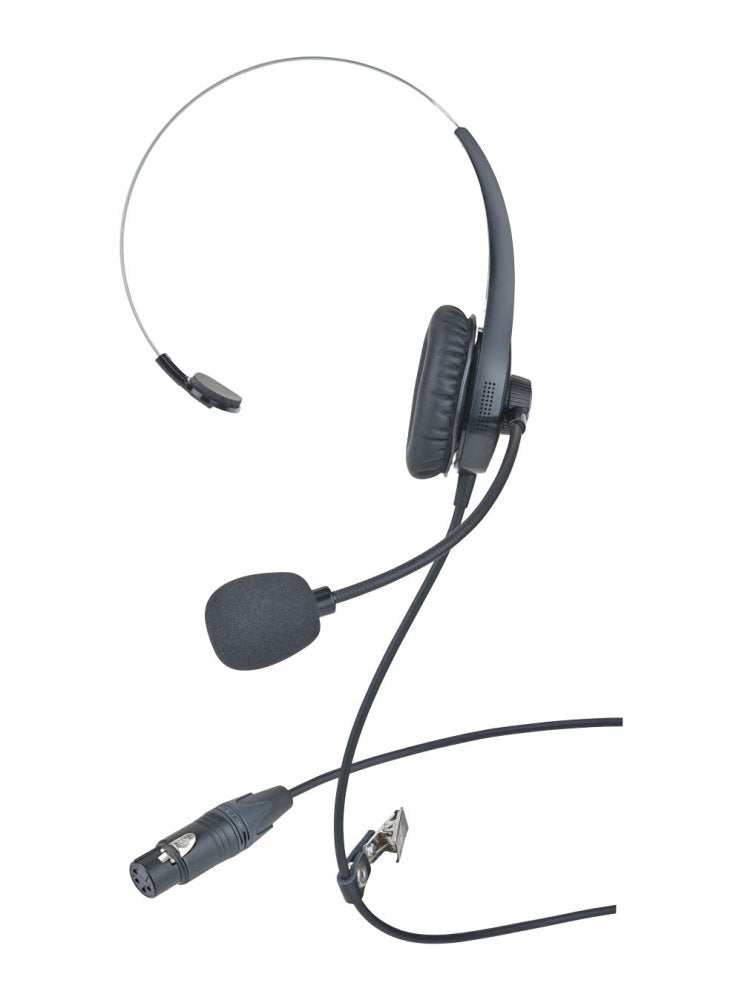

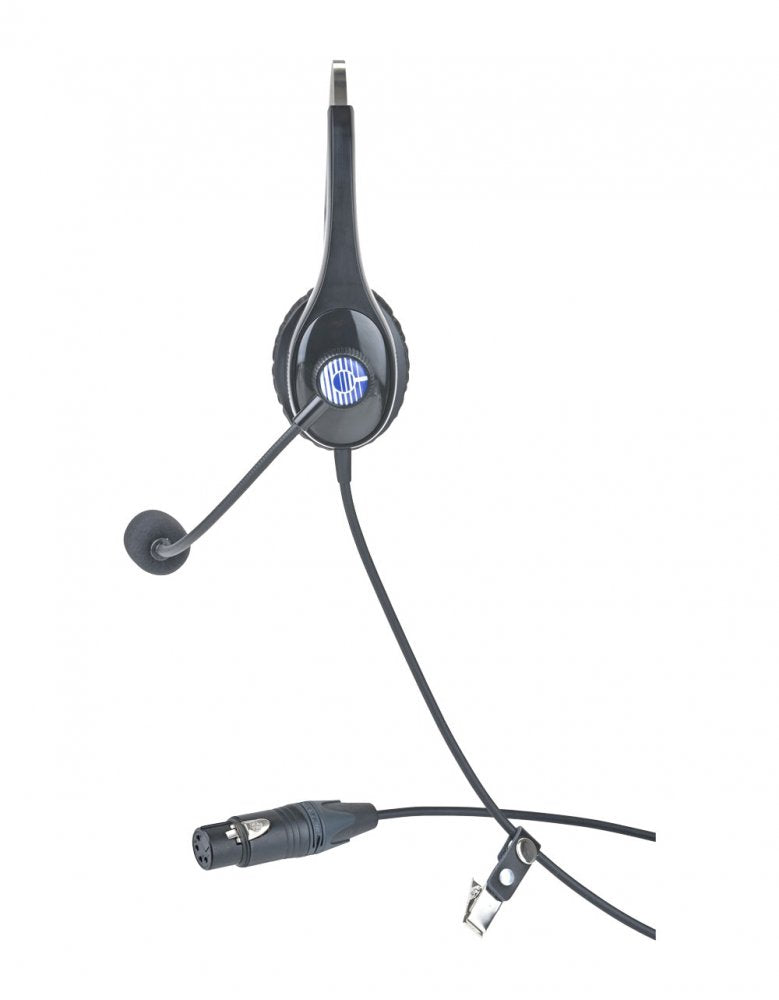

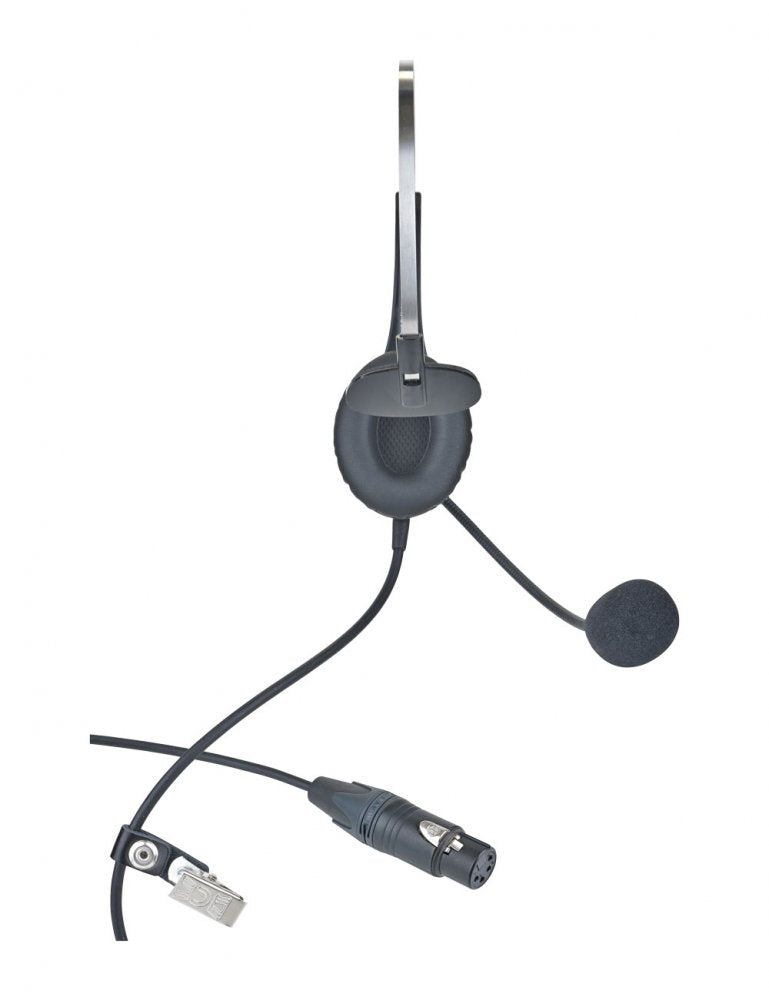

The CC-28-X4 is a professional-grade single-ear headset engineered for clear communication in demanding environments such as live production, broadcast, and intercom systems. With its over-the-head design and leatherette earpad, it offers comfortable wear during extended use, while the closed-back construction enhances sound isolation for precise audio monitoring.

A flexible gooseneck boom microphone ensures optimal positioning and features a built-in rotation-based ON/OFF switch for quick muting. This dynamic, cardioid microphone delivers clear vocal capture with a frequency range tailored for speech intelligibility (200Hz"10kHz). The headset connects via a durable Neutrik 4-pin XLR female connector using Clear-Com-compatible wiring and comes equipped with a 5-foot straight cable for convenient mobility.

• Comfortable Over-the-Head Fit: Lightweight, closed-back design with soft leatherette earpad for extended wear.

• Clear, Focused Sound: 27mm driver delivers audio from 100Hz to 14kHz with strong clarity.

• Dynamic Cardioid Microphone: Gooseneck mic with cardioid pickup captures voice clearly while reducing background noise.

• Quick Mute Function: Boom rotation acts as an ON/OFF switch for instant microphone muting.

• Service-Friendly Build: Fully serviceable for long-term reliability in demanding environments.

• Professional Connector: Equipped with a 4-pin XLR female Neutrik connector (Clear-Com wiring).

• Rugged and Flexible Cabling: 5-foot (1.5m) shielded cable is durable and easy to route; not coiled.

• Lightweight Design: Weighs just 3.5 oz including the connector for low-profile, all-day use.

• Reliable in Harsh Conditions: Tested for extreme temperature and humidity ranges for robust performance.

GENERAL SPECIFICATIONS:

• Model: CC 28 X4

• Design: Over the head

• Earpad: Leatherette

• Boom: Flexible gooseneck with rotation switch for muting

• Serviceability: Fully serviceable

HEADPHONE SPECIFICATIONS:

• Type: Closed back

• Driver Size: 27 mm

• Frequency Response: 100 Hz to 14 kHz

• Sensitivity: 114 dB plus minus 3 dB SPL at 1 kHz

• Impedance: 320 ohms plus minus 20 percent at 1 kHz

• Input Power: 100 mW

MICROPHONE SPECIFICATIONS:

• Element: Dynamic

• Polar Pattern: Cardioid

• Frequency Response: 200 Hz to 10 kHz

• Sensitivity: minus 61 dB plus minus 3 dB at 1V per 1 Pa at 1 kHz

• Impedance: 200 ohms plus minus 20 percent at 1 kHz

CONNECTIVITY:

• Connector: XLR 4 pin female Neutrik using Clear Com wiring

• Cabling: Screened and separately shielded microphone wires, not coiled

• Cable Length: 5 feet or 1.5 meters

ENVIRONMENTAL SPECIFICATIONS:

• Operating Temperature: minus 10 to 55 degrees Celsius

• Humidity Tolerance: 40 degrees Celsius at 90 to 95 percent relative humidity for 48 hours

PHYSICAL DIMENSIONS:

• Packaging Dimensions: 6.3 by 8 by 2.4 inches or 160 by 205 by 60 mm

• Weight: 3.1 ounces or 88 grams without connector, 3.5 ounces or 99.2 grams with connector
