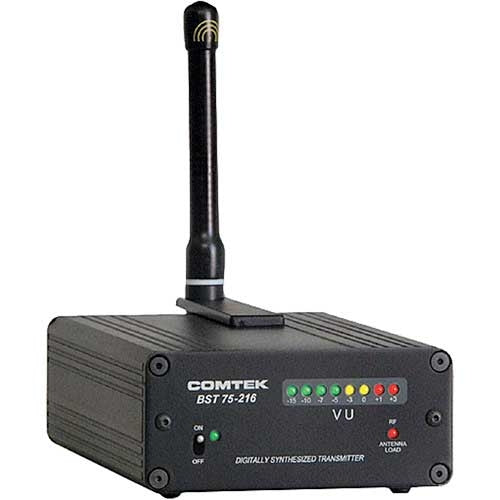

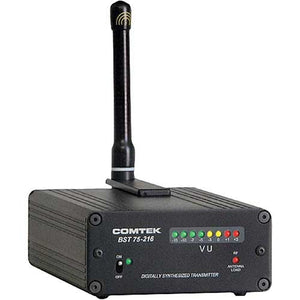

Comtek BST 75-216 CW

This versatile and innovative transmitter is simple to use, yet it has sophisticated features such as "Flash Memory" synthesized channel programmability with a manual, 10-channel selectable switch. A unique multi-function RF indicator detects bad antenna load, RF presence, and coaxial cable open condition for quick and easy troubleshooting. To accommodate a greater variety of receivers, the BST 75-216 can operate with non-companded receivers or with companded receivers for higher fidelity sound reproduction. A practical, compact, all-metal enclosure is suitable for permanent rack-mount installations or for stand-alone portable use.

• Full Fidelity Frequency Response

• Perfect for Sound Carts

• Compact Design

• Easy Setup and Installation

• User Selectable RF Output Power Level

AUDIO INPUTS:

• XLR-3F balanced line input (+20 dBm max)

• 1/4 " mono plug input (+5 dBm max) or two wire electret microphone input with internal bias voltage.

•

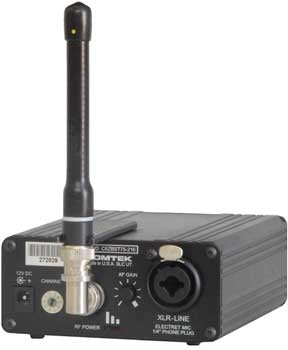

CONNECTORS:

• XLR-3F Combo with 1/4" phone jack

• Barrel type 5.5mm x 2.1mm power jack DC

• BNC type RF output

•

ANTENNA:

• Short Loaded BNC whip antenna

• BNC RF output connector for optional external antenna

•

POWER REQUIREMENTS:

• 12 Volts DC, 200 mA max

•

FREQUENCY RESPONSE:

• 100 Hz TO 10 kHz

•

AUDIO DISTORTION:

• Less than 1% at 80% modulation

•

AUDIO GAIN CONTROL:

• Limited to 20 dB

•

RF OUTPUT POWER:

• 100 mW (Max for FCC Part 95)

•

AUDIO PRECESSING:

• Companded and non-companded to accommodate a variety of receivers

•

FREQUENCY MODULATION:

• 10 kHz deviation companded

• 5 kHz deviation non-companded (for all-in-ear receivers)

•

DIMENSIONS:

• 3.75" W x 1.625" H x 5.25" D

•

WEIGHT:

• 17 oz. (1.06lb)

•

DOWNLOADS:

• All documents are in PDF format

• >> BST 75-216 Tech Sheet

• >> BST 75-216 User Manual

•

COMPATIBILITY:

• The BST 75-216 Mini Base Station Transmitter is compatible with the following receivers:

• >> PR-216

• >> PR-216 Option 7
