Ferrofish Verto 32

Dante is the de facto standard for networking audio equipment. With the Verto 32 it's now possible to easily integrate up to 32 x 32 channels via ADAT into a Dante network. No matter which ADAT device you use " the Verto 32 makes all channels immediately avalilable in the network: "plug and play".

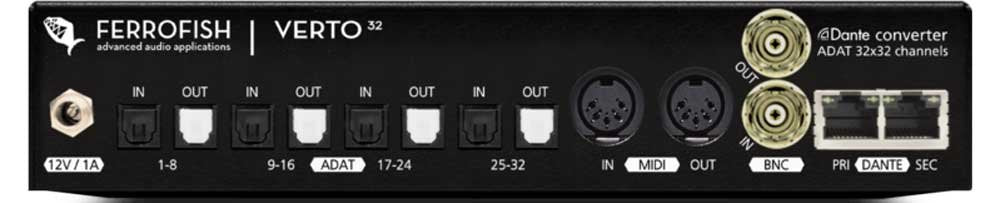

The ultra compact device has 8 ADAT connectors: 4 for transmitting, and 4 for receiving digital data (8 channels each).

On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 32 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization.

DANTE PLUG & PLAY:

Integrate the Verto 32 seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto 32 turns into a high channel ADAT audio interface.

ADDITIONAL FEATURES:

The VERTO 32 is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.

DANTE I/O:

2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network

64 x 64 channel I/O (Dante Brooklyn II board built-in)

ADAT I/O:

VERTO 32 4X ADAT INPUT + 4X ADAT OUTPUT, OPTICAL TOSLINK:

Channel count:

32-32 channels at 48kHz,

16-16 channels at 96kHz

VERTO 64 8X ADAT INPUT + 8X ADAT OUTPUT, OPTICAL TOSLINK:

Channel count:

32-32 channels at 48kHz

16-16 channels at 96kHz

MIDI I/O:

2 x DIN5 connector for MIDI embedding/de-embedding

WORDCLOCK I/O:

BNC: 1 x input, 1 x output

75 Ohm Termination set by default (switchable via Dante)

POWER SUPPLY:

14.4VA (1.2A at 12V)

Polyfuse internal, self-resetting

1 x power supply included

OPERATION:

Temperature range: 41F up to 113F (+5C up to +45C)

Humidity: <75%, non-condensing

WEIGHT/SIZE:

Weight: 0,9 kg

Dimensions: 22 x 9 x 4,5 mm (without rack ears)

OPTIONAL ACCESSORIES:

• 19" Rack mountain kit, metal (for mounting 1 x Verto in a 19" rack-space)

• Multi-range Power Supply 12V (EU)

• ADAT Cable Locking Plate (Part. No. 7027)
