Genelec 8020DPM

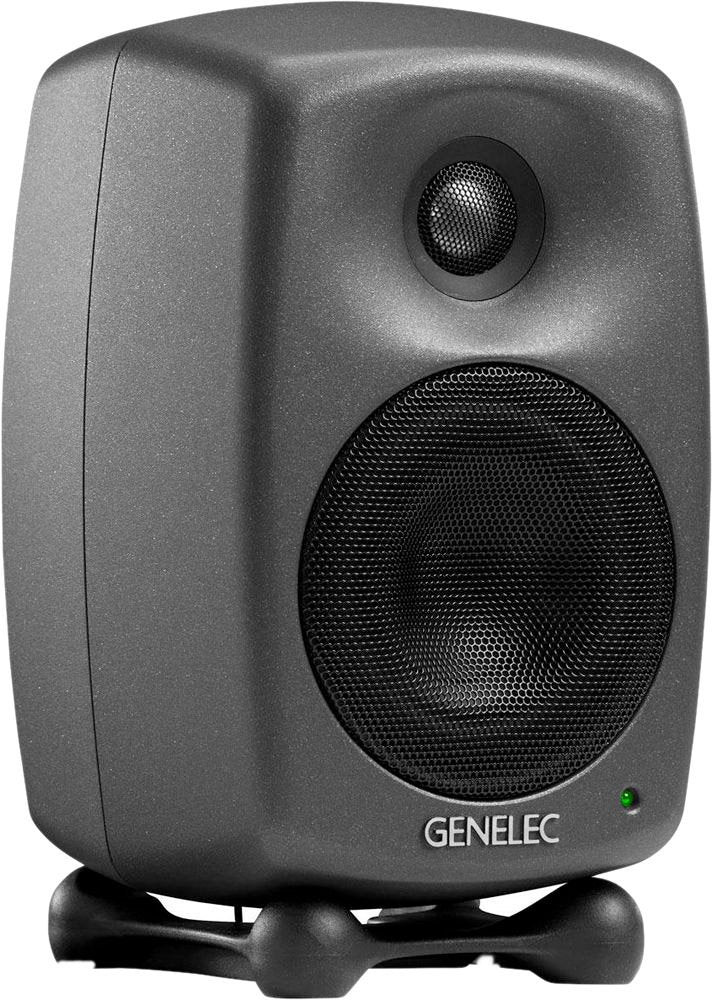

As an active loudspeaker, it contains drivers, power amplifiers, active crossover filters and protection circuitry. The MDE (Minimum Diffraction Enclosure) loudspeaker enclosure is made of die-cast aluminium and shaped to reduce edge diffraction. Combined with the advanced Directivity Control Waveguide TM (DCWTM), this design provides excellent frequency balance in difficult acoustic environments. If necessary, the bass response of the 8020D can be extended with a Genelec subwoofer.

The small Genelec 8020D has been designed for monitoring in difficult listening environments, particularly those compromised by lack of space.

Each 8020D is supplied with an integrated amplifier unit, mains cable and an operating manual.

SYSTEM SPECIFICATIONS:

Lower cut-off frequency, -6 dB: <56 Hz

Upper cut-off frequency, -6 dB: > 25 kHz

Accuracy of frequency response: 62 Hz - 20 kHz (± 2.5 dB)

Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz: at 1 m > 100 dB SPL

Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit): at 1 m > 93 dB SPL

Maximum peak acoustic output per pair, at 1 m distance with music material: > 107 dB

Self generated noise level in free field at 1 m on axis: < 5 dB (A-weighted)

Harmonic distortion at 85 dB SPL at 1 m on axis: Freq: 50...200 Hz < 3 % >200 Hz < 0.5 %

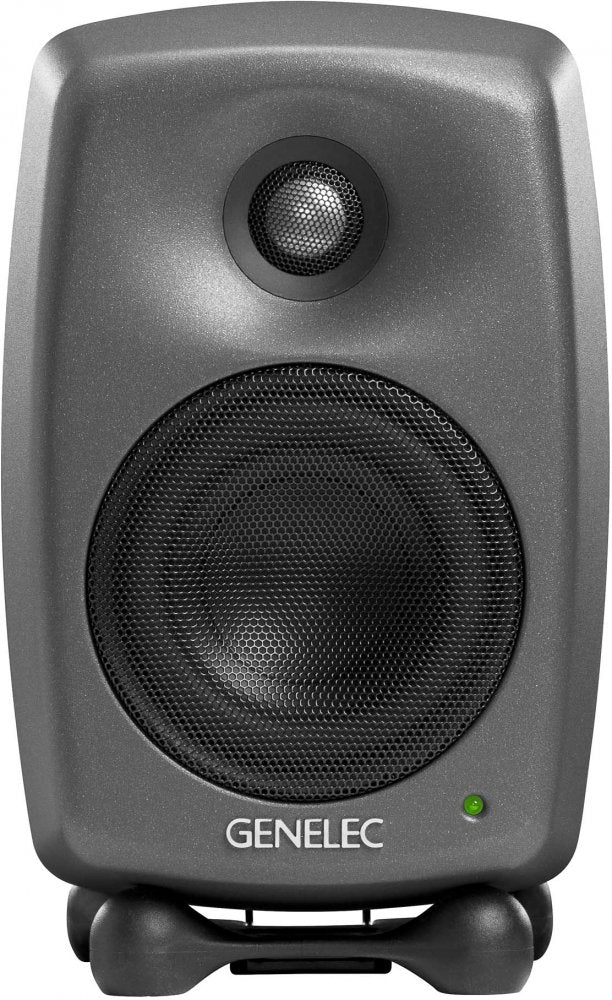

Drivers: Bass 105 mm (4 in) coneTreble 19 mm (3/4 in) metal dome Both drivers are magnetically shielded

Weight: 3.2 kg (7.0 lb)

DIMENSIONS:

Height: 242 mm (91/2 in) (including Iso-Pod table stand)

Height: 230 mm (91/16 in) (without Iso-Pod table stand)

Width: 151 mm (6 in)

Depth: 142 mm (5.5/8 in)

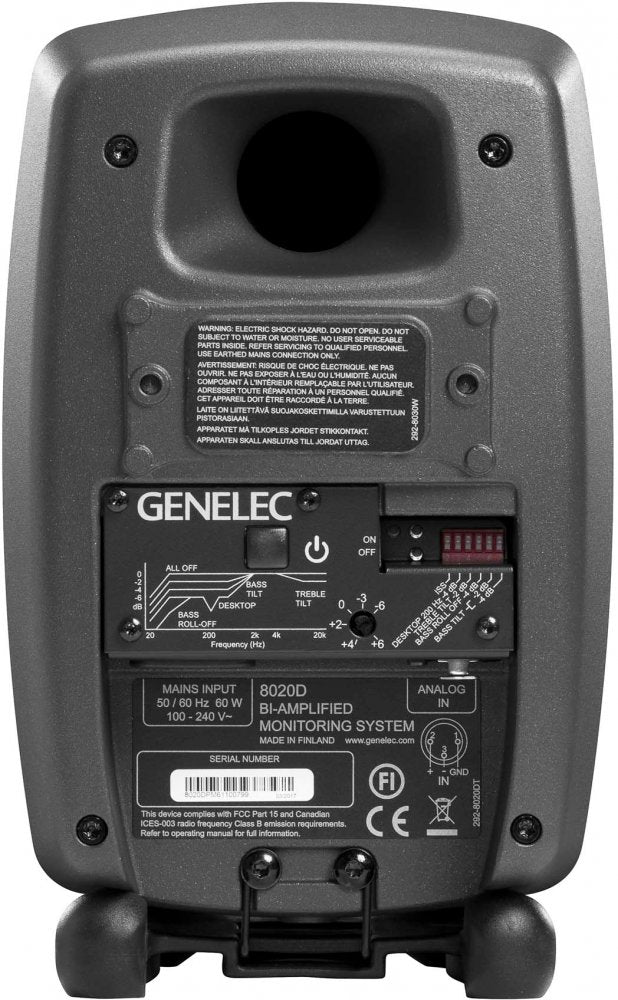

CROSSOVER SECTION:

Input connector: Input: XLR female, balanced 10 kOhm, pin 1 gnd, pin 2 +, pin 3

Input level for 100 dB SPL output at 1 m: -6 dBu at volume control max

Sensitivity control range relative to max output: -12 dB (constantly variable)

Crossover frequency, Bass/Treble: 3.0 kHz

Treble tilt control operating range: 0 to -2 dB at 15 kHz

Desktop 200 Hz control: -4 dB at 200 Hz

Bass roll-off control: -4 dB at 65 Hz

Bass tilt control operating range in -2 dB steps: 0 to -6 dB at 100 Hz

AMPLIFIER SECTION:

Bass amplifier output power: 50 W

Treble amplifier output power: 50 W

Long term output power is limited by driver unit protection circuitry.

Amplifier system distortion at nominal output: THD < 0.05 %

Mains voltage: 100-240 V AC, 50-60 Hz

Voltage operating range: ±10 %

Power consumption:

- Idle 3 W

- Standby <0.5 W

- Full output 60 W

Color: Matte grey painted finish
