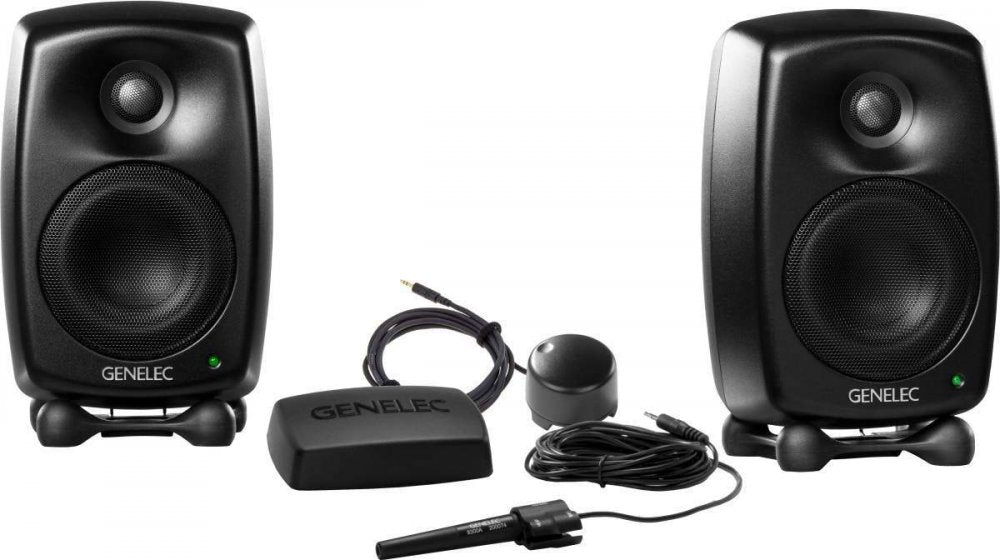

Genelec 8320AMM-Pack

Step into a world of precise sound reproduction with the Genelec 8320A monitors paired seamlessly with the Genelec Loudspeaker Manager (GLM) system. This compact yet powerful duo is perfect for audio professionals seeking pristine monitoring accuracy, even in challenging acoustic spaces.

The Genelec 8320A Smart Active Monitors are engineered with SAM™ (Smart Active Monitor) technology, allowing them to automatically calibrate to their environment when used with the GLM system. Despite their small footprint, these monitors deliver an impressively accurate frequency response, leveraging Genelec's MDE™ (Minimum Diffraction Enclosure) and Directivity Control Waveguide™ designs for clear, neutral sound. Each unit features a robust die-cast aluminum enclosure and Class D amplification, ensuring reliable performance in any setup. Ideal for desktop, broadcast, and smaller control rooms, the 8320A offers both balanced analog input and full integration into a GLM-calibrated network.

The GLM system enhances the power of the 8320A by offering intelligent setup and calibration tools. With the included GLM network adapter and measurement microphone, users can auto-calibrate their monitors using the Genelec AutoCal process. This not only corrects level, distance, and frequency response discrepancies but also enables intuitive control of system volume and presets directly from the software. The result is a consistent, professional listening experience tailored to your specific room characteristics.

Together, the 8320A monitors and GLM system form a highly adaptable, smart monitoring solution, allowing you to focus on your creative work with the confidence that you're hearing an accurate representation of your audio.

GENELEC 8320A SAM STUDIO MONITORS:

• Smart Calibration: Automatically adjusts for your room using the GLM software for accurate sound.

• Built-in DSP: Ensures clean, detailed sound with room response compensation and protection features.

• Compact and Powerful: Small size with big performance, ideal for tight spaces without sacrificing clarity.

• Acoustic Design: Features a curved aluminium MDE™ enclosure and Directivity Control Waveguide™ for neutral, precise sound.

• Flexible Mounting: Comes with Iso-Pod™ stand and supports wall, ceiling, or mic stand mounting.

• GLM Integration: Fully compatible with the Genelec Loudspeaker Manager for system calibration and control.

• Energy Efficient: Intelligent Signal Sensing (ISS™) enables ultra-low power consumption in standby mode.

• Reliable and Durable: Built for professional use with robust build quality and long-term reliability.

GENELEC GLM (LOUDSPEAKER MANAGER):

• AutoCal Room Calibration: Automatically adjusts each monitor and subwoofer for level, delay, and EQ based on room acoustics.

• Flexible System Setup: Supports stereo to immersive multichannel setups with up to 30 devices in one network.

• User-Friendly Software: Easy drag-and-drop layout with support for multiple monitor groups and presets.

• Cloud or Local Calibration: Offers both online and offline calibration options, including cloud-based AutoCal 2 for best accuracy.

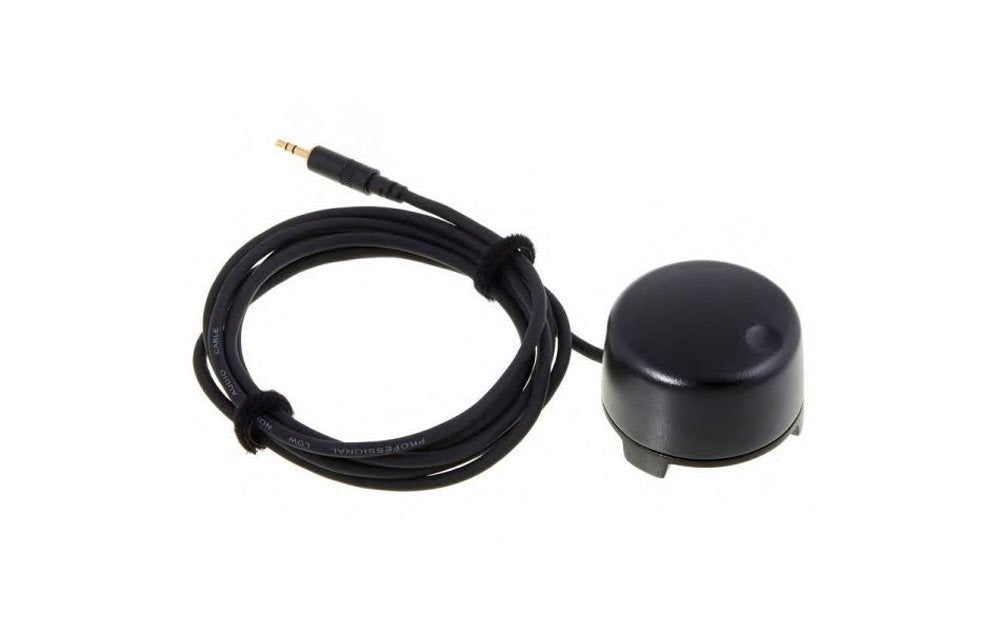

• Volume Control Options: Works with wired and wireless Genelec volume controllers for standalone use.

• Detailed Acoustic Editing: Allows manual tweaking of EQ, level, phase, and other advanced parameters.

• Multiple Listening Positions: Save different calibrations for engineer, producer, or other seating locations.

• Standalone Operation: Calibrated settings can be stored in the monitors for operation without a computer.

GENELEC 8320A SMART ACTIVE MONITOR:

GENERAL SPECIFICATIONS:

• 2-way smart active monitor

• Minimum Diffraction Enclosure™ (MDE™) die-cast aluminum

• Directivity Control Waveguide™ (DCW™)

• Compatible with GLM 2.0 and later

DRIVERS:

• Woofer: 105 mm (4 in) cone

• Tweeter: 19 mm (3/4 in) metal dome

AMPLIFIERS:

• Bass amplifier: 50 W (Class D)

• Treble amplifier: 50 W (Class D)

• Total harmonic distortion: < 0.05%

INPUT SECTION:

• Analog input: XLR female, 10 kΩ balanced

• Input level for 100 dB SPL at 1m: -6 dBu (adjustable via GLM)

• Maximum analog input level: 24 dBu

CONNECTIVITY:

• 2 x RJ45 GLM network connectors

FREQUENCY RESPONSE:

• -6 dB range: 55 Hz " 23 kHz

• ±1.5 dB: 66 Hz " 20 kHz

ACOUSTIC OUTPUT:

• Short-term sine wave: > 100 dB SPL

• Long-term RMS (IEC noise): > 94 dB SPL

• Peak per pair with music: > 107 dB SPL

• Self-noise level: < 5 dB (A-weighted)

• Harmonic distortion:

• 50"200 Hz: < 3%

• >200 Hz: < 0.5%

POWER:

• Mains voltage: 100"240 VAC, 50"60 Hz

• Power consumption: < 0.5 W (ISS active) / 3.0 W (idle) / 50 W (max)

PHYSICAL:

• Weight: 3.2 kg (7.0 lb)

• Dimensions (with Iso-Pod™): 242 x 151 x 142 mm (H x W x D)

• Dimensions (without Iso-Pod™): 230 mm height

• Mounting: Iso-Pod™, 3/8" UNC thread, dual M6 x 10 mm rear inserts

OTHER FEATURES:

• Intelligent Signal Sensing (ISS™) auto-standby

• Magnetically shielded

• Universal mains voltage input

• Reset button for factory settings

• FCC and CE compliant

GENELEC LOUDSPEAKER MANAGER (GLM) SYSTEM:

SYSTEM COMPONENTS:

• SAM Monitors and Subwoofers

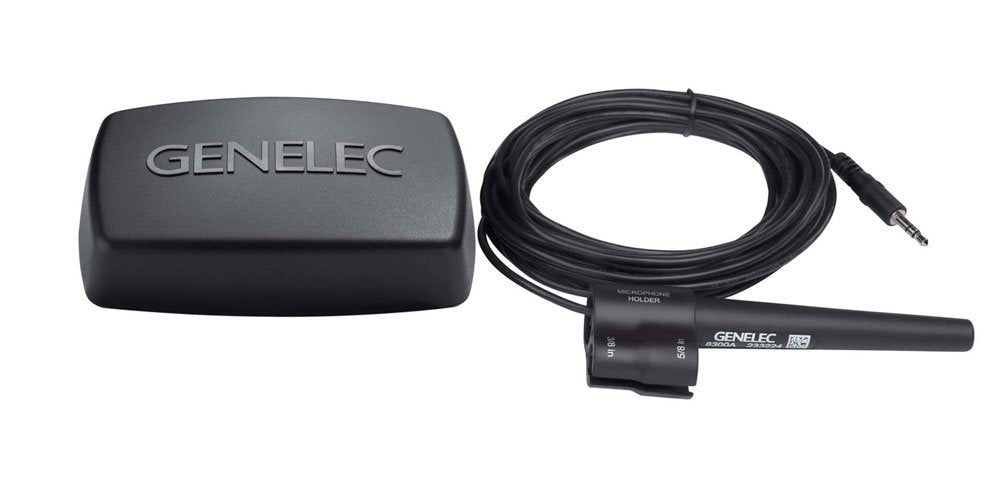

• GLM Network Adapter (8300-416)

• GLM Calibration Microphone

• GLM Software (PC/Mac)

GLM ADAPTER CONNECTIONS:

• USB Type B to computer

• RJ45 GLM network out

• RJ45 Terminator port (for >100 m networks)

• 3.5 mm jack: Volume Controller

• 3.5 mm jack: Calibration Microphone

CALIBRATION AND CONTROL FEATURES:

• AutoCal (automatic room response calibration)

• AutoPhase (automatic subwoofer phase alignment)

• WooferCal (for adaptive woofer systems)

• Standalone operation with settings stored in monitors

• Adjustable ISS sensitivity and delay

• Multiple group presets (up to 10 per setup)

• Calibrated SPL alignment to standards (EBU R128, ATSC A/85, etc.)

• Acoustic Editor for manual EQ adjustments

• Sound Character Profiler for tonal balance customization

• Support for analog and digital input setups (AES/EBU)

• MIDI and USB volume controller support

SOFTWARE FEATURES:

• Drag-and-drop layout grid

• Solo/Mute per monitor/subwoofer

• Real-time SPL metering (Z-weighted)

• Dark/Light UI theme and multilingual interface

• GLM Cloud account integration for updates and support
