Glensound GS-HA011 - Headphone Amplifier

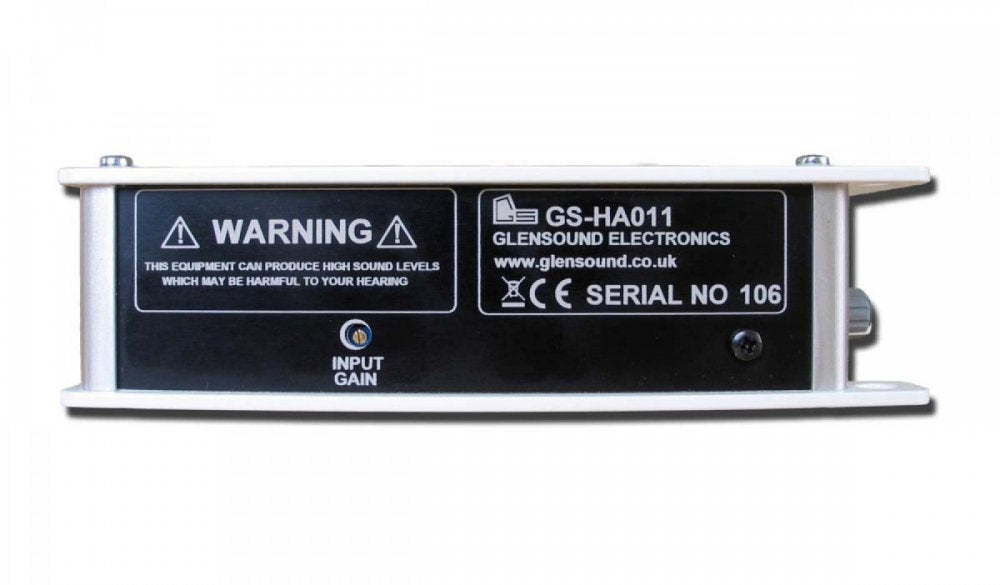

Audio input is transformer balanced with recessed adjustable gain control. Input connection is via XLR with a loop through XLR output. Two headphone sockets are offered, 1 on 6.35mm and the other on 3.5mm. These are wired tip & sleeve to allow connection of regular stereo headphones (with audio on both ears) or a single ear piece. There is a volume control for adjusting level to 32-1000ohm impedance headphones.

Power is via a 9v PP3 battery (>18 hours use) or via external DC power. There is an on/off switch and a low power LED light.

Glensound belt pack cases are very rugged to withstand the rigours of portable use. There are loop anchor points on each of the front corners for shoulder straps or tying down, and there is a belt clip.

• Portable single channel headphone amplifier

• Transformer balanced inputs

• Input gain control

• Battery(PP3) or DC power

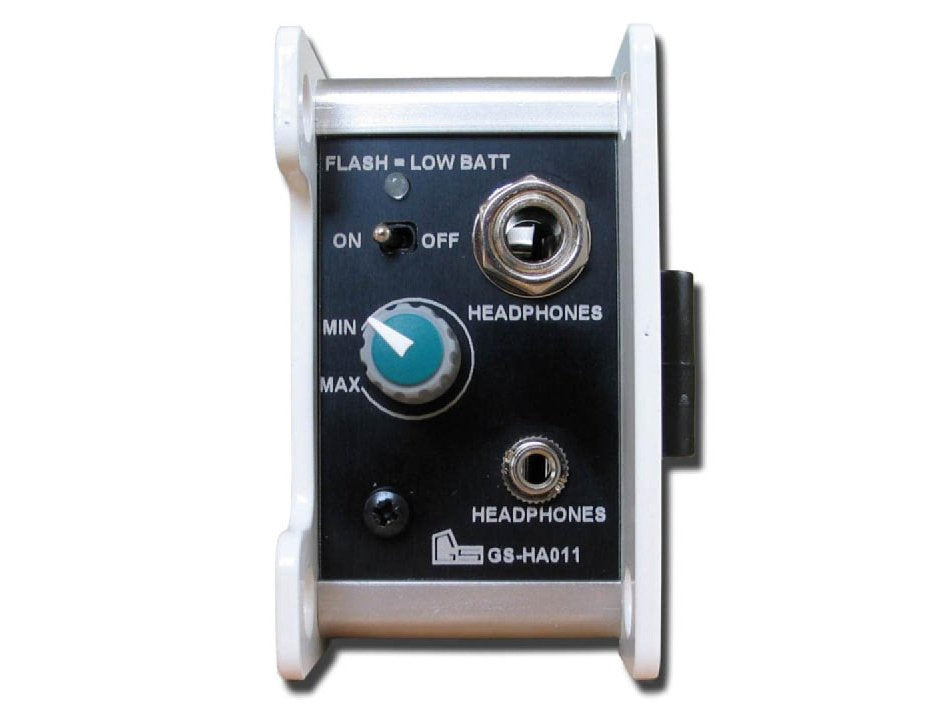

• Adjustable headphone level control

• 6.35mm and 3.5mm headphone sockets

• Audio input on XLR with loop through

• On/off switch

• Low battery light

• Belt clip

Input: Transformer balanced

Input Impedance: >20k ohms

Input Range: -20dBu to +8dBu

Output Range: -20dBu to +10dBu

Frequency response: < -1dBu 50Hz - 16KHz

Noise: >-80dBu CCIR Un-waited Q Peak @ Line up

Max O/P: +19dBu into 10K ohms

Max O/P: +16dBu into 600 ohms

Distortion: <0.25% 100Hz - 1kHz

Distortion: <0.02% 1K - 10KHz

DC supply: 12-20v <26mA

Battery: 9v alkaline PP3

Battery life: >18 hours (Alkaline battery in normal conditions)

Low battery LED: at 6.0 volts

Optimal Headphone Impedance: 32-1000 ohm

Length: 153mm

Width: 73mm
