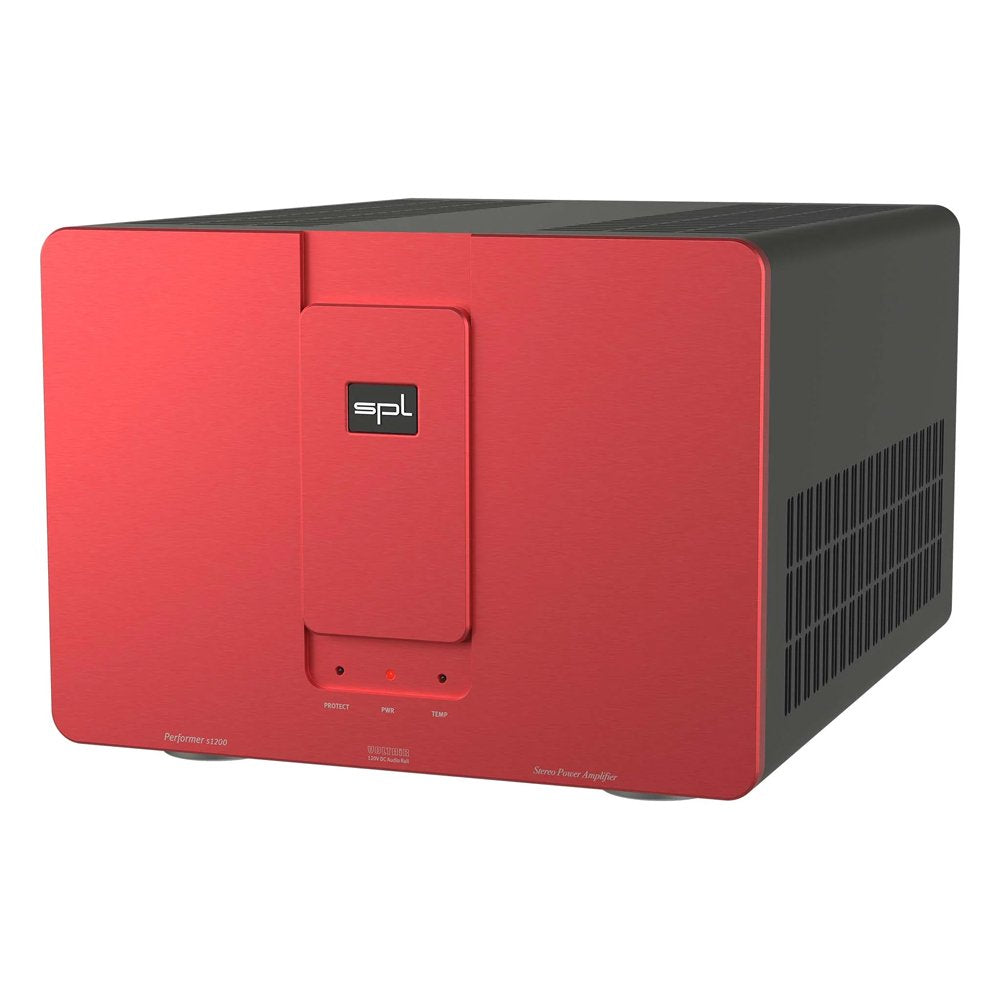

SPL Performer s1200 - Red

The powerful stereo amplifier This impressive stereo power amplifier leads even the most demanding speakers to soundscapes beyond your expectations. With a power amplification of 2 x 520 W (4 ohm) [2 x 550 W (2 ohm); 2 x 300 W (8 ohm)], this completely analog amplifier easily controls any loudspeaker.

BETTER SAFE THAN SORRY:

The Performer s1200 has a protection circuit against DC voltage and against overheating. If direct current (DC) is detected, the output stage switches off automatically and the Protect LED lights up red.

To protect the s1200 against the unlikely event of overheating, a temperature sensor at the heatsinks continously monitors the temperature of the device. The TEMP LED lights up yellow when the Performer s1200 is getting too hot.

As a result of this the output stage is switched off and the fans run on high-speed until the device has cooled down.

FREEDOM OF CHOICE:

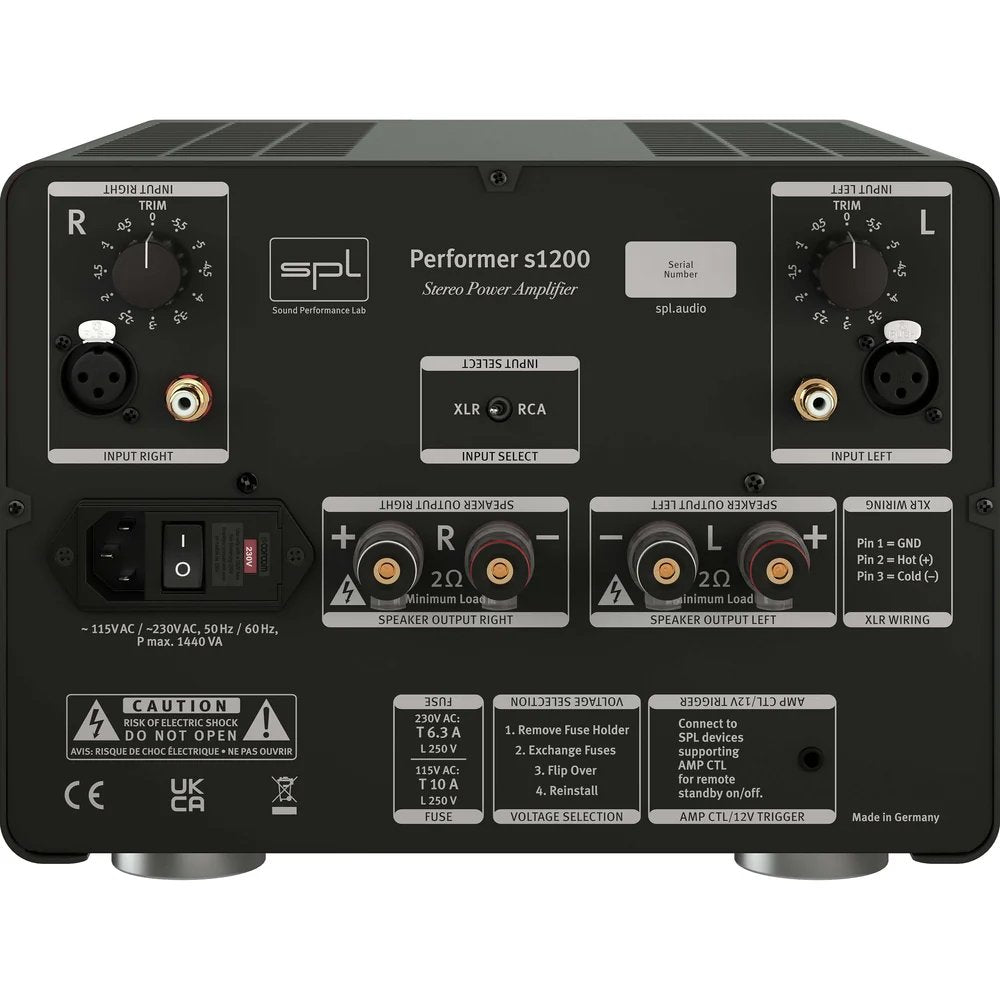

The Performer s1200 features a stereo pair of XLR and RCA inputs. This makes it compatible with all preamps on the market without the use of adapters. The stereo input can be selected via the Input Select switch on the rear panel.

TRIM TO FIT:

With reference to the Performer s1200, "fit" means adapted.

You can adapt the input sensitivity in 0.5 dB steps from 0 dB to -5.5 dB. In contrast to a panorama potentiometer in a preamplifier, this trim switch is the more audiophile solution. The optimal operating range of the loudspeakers and preamplifier can be perfectly adjusted this way.

POWER TO THE SPEAKERS:

The loudspeaker binding posts can accommodate banana plugs as well as a stranded wire with a diameter of up to 4 mm. Thus, any common type of speaker cable can be used. However, we do not recommend connecting a speaker with less than 2 ohms impedance.

TRIGGER ME:

The standby mode of the power amplifier can be switched on and off using the AMP CTL connection between a preamplifier such as the Director Mk2.

To do this, connect the 3.5 mm phone jacks with a cable with 3.5 mm mono or stereo jack plugs. Thanks to its 12 V trigger input, third party preamps can also switch the Performer s1200's standby mode on and off.

A CLASS OF ITS OWN:

Conventional solid-state power amplifiers tend to operate in a critical range of the built-in components " this results in unpleasant harmonical artifacts. Tube power amplifiers also distort at their limit but their characteristical behaviour softens this roughness and harshness.

Non the less this is a falsified representation of the sound image. Thanks to VOLTAiR Technology, the Performer s1200 can process much higher levels without even coming near to a critical range. All components constantly operate in the optimal range. The result is a very pleasant, natural and relaxed sound experience. Enjoy your music in every detail and without any listening fatigue.

FULL POWER:

The Performer s1200 features individual amplification stages for voltage and power amplification, which ensures a perfect operating of the class-AB amplifier circuit.

Thanks to each stage's own negative feedback path, it is ruled out that feedbacks from the loudspeaker are interacting with the input stage " this way the SPL VOLTAiR Technology can play out its full performance.

KEEP COOL:

Inside the Performer s1200, six fans usually do nothing at all, because 90 % of the heat is passively dissipated via massive heat sinks.

Should it nevertheless become really loud for a really long time, the processor-controlled fans remain virtually inaudible at only 19 dB (A).

During power-up, the fans of the Performer s1200 briefly rotate at a higher speed to remove dust of themselves and surrounding components.

SOUNDS GOOD!:

With all devices of the Professional Fidelity series we develop not only according to plan, but also by ear. All important components are installed on the circuit boards using THT technology. This way we can ensure that we can use the best sounding components.

ANALOG INPUTS XLR (BALANCED), RCA (UNBALANCED):

Input impedance: 20 kohm

Input trimming: 0 dB to -5.5 dB in 0.5 dB steps

Input sensitivity: 10,5 dBu

LOUDSPEAKER OUTPUTS BINDING POSTS WITH 4 MM Ø CABLE HOLE (SCREWABLE) AND BANANA PLUG:

Output power (RMS, 2 ohm): 2 x 550 W

Harmonic distortion (1 kHz, 2 ohm): < 0,09 %

Output power (RMS, 4 ohm): 2 x 520 W

Harmonic distortion (1 kHz, 4 ohm): < 0,09 %

Output power (RMS, 8 ohm): 2 x 300 W

Harmonic distortion (1 kHz, 8 ohm): < 0,04 %

Output voltage (Peak-to-Peak): 160 V

Output voltage (RMS): 54,6 V

Output impedance (20 Hz " 20 kHz): < 0,031 ohm

Frequency range (-3dB): 10 Hz " 80 kHz

Amplification gain: 26 dB

Damping factor (1 kHz, 8 ohm): > 290

Noise (A-weighted): -123 dB

INTERNAL LINEAR POWER SUPPLY WITH SHIELDED TOROIDAL TRANSFORMER:

Toroidal transformer: 1440 VA

Operating voltage (Input stage): +/- 60 V

Operating voltage (power stage): +/- 80 V

Operating voltage for relays, LEDs, AMP CTL:+ 12 V

MAINS POWER SUPPLY:

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz

Fuse 230 V: T 6,3 A

Fuse 115 V: T 10 A

Power consumption: max. 1440 VA

Idle power consumption: 50 W

Stand-by power consumption: < 0,3 W

DIMENSIONS & WEIGHT:

W x H x D (width x height incl. feet x depth): 278 x 205 x 375 mm, 10.94 x 8.07 x 14.76 inch

Unit weight: 25,1 kg, 55,3 lbs

Shipping weight: 29,1 kg, 64,2 lbs
