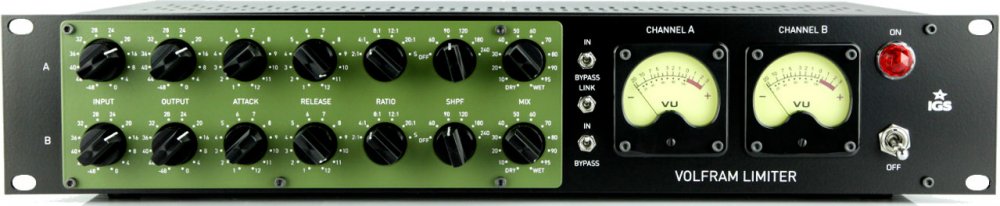

IGS Audio Volfram Limiter

The Volfram Limiter is a dual mono version of the legendary 1176 archetype.

The core of versatility of sound of the 1176 lies in the balance between the Input, Output, and Release knobs.

The Legacy The 1176 is a very well known and appreciated compressor in professional recording studios all over the world. Whoever heard how this compressor works with vocals will never be able to manage without one. Additionally the Volfram works great with drums, synths and any other sources.

Legendary FET design, two linkable channels, Wet/Dry mix knob for parallel compression.

Wet & Warm It is a 45dB transistor amplifier equipped with a remarkable limiter. Compression is achieved with the FET transistors. At extreme settings the Volfram adds some pleasant distortion to the output. All manipulators are 12-pole (6-pole for ratio, HPF) switches. It is a pure A class circuit.

DEVICE TYPE:

Fet Compressor : BF245A, matched transistor

BASIC FEATURES:

All stepped manipulators : Yes

Sidechain HPF : 240, 180, 120, 90, 60, Off

INPUT & OUTPUT:

Input Impedance (balanced) : 10k Ohm

Output Impedance (balanced) : 600 Ohm, Carnhill transformer

LEVELS:

Operating Level : +4dBu

Max input level : +18dBu

Max output level : +18dBu

Noise Level : 110dB A

Max. gain : 45 dB

Max Gain Reduction : 30 dB

TIME CONSTANTS:

Attack : 20-800 microseconds (1 - slow, 12 - fast)

Release : 0.1 - 1,5 s (1 - slow, 12 - fast)

BANDWIDTH:

Frequency response : 8 Hz - 22 kHz +/- 0.2dB

DISTORTION (@ 20 HZ - 20 KHZ):

Signal to Noise Ratio : >84dB

THD : 0.12 %

THD+N : 0.19 %

Crosstalk : 100dB

POWER:

Power consumption : 20 Wats

Power supply : Internal

PACKING BOX:

Dimensions : 70 x 50 x 30 cm

Shipping weight : 8 kg
