Roland DM-101

The BOSS DM-101 Delay Machine redefines analog delay by combining the classic warmth of BBD (Bucket-Brigade Device) circuitry with cutting-edge CPU control. Featuring eight BBD chips and 12 unique delay modes, the DM-101 delivers everything from vintage echoes to modern stereo delay textures-all with 100% analog signal processing. Its versatile design supports stereo operation, while adjustable modulation rate and depth provide rich, immersive soundscapes.

The DM-101 is equipped with tap tempo, carryover, and 127 user memories, accessible via MIDI I/O for complete creative control. The Variation knob unlocks unique parameters in each mode, offering limitless sound-shaping possibilities. With four onboard memories, external footswitch support, and flexible routing options, the DM-101 is the most powerful analog delay pedal ever created by BOSS.

• Fully analog BBD audio circuitry with CPU control for precision

• Twelve unique delay modes: Classic, Vintage, Modern, Multi-Head, Non-Linear, Ambience, Reflect,Doubling+Delay, Wide, Dual Mod, Pan, and Pattern

• Stereo operation with flexible routing options for wet/dry and wet-only setups

• Tap Tempo and Tap Division for precise rhythmic delay control

• Variation knob adjusts parameters unique to each mode

• Adjustable modulation rate and depth with dedicated knobs

• MIDI I/O for 127 user memories, sync, and external control

• Selectable carryover maintains delay trails when bypassed

• Four onboard memories plus the current panel settings

• Expandable control with external footswitches, expression pedal, or MIDI

• USB port for program updates

• Sturdy BOSS build with true analog warmth and modern versatility

GENERAL SPECIFICATIONS:

• Ultimate analog delay pedal with fully analog BBD (Bucket Brigade Device) circuitry

• 12 unique delay modes with stereo operation and versatile signal routing

• 127 user memories plus four onboard memories

• Tap tempo function with tap division switch for rhythmic delay patterns

• MIDI I/O for remote access, sync, and memory recall

• Carryover option for maintaining delay trails when bypassed

• Expandable control via external footswitches, expression pedal, or MIDI

• Analog BBD sound with modern CPU control for expanded clarity and delay times

DELAY MODES:

• Classic " Warm analog delay sound with up to 1200 ms of delay

• Vintage " Retro analog delay inspired by the BOSS DM-2 pedal

• Modern " Clear analog delay with distinctive high-end tone

• Multi-Head " Emulates multi-head tape delay with 10 head combinations

• Non-Linear " Produces short, consecutive delays that increase in volume

• Ambience " Simulates small room reflections

• Reflect " Reverb-style stereo delay

• Doubling+Delay " Combines a doubled sound with longer delay

• Wide " Stereo delay with offset left/right times

• Dual Mod " Stereo delay with different modulation phase settings

• Pan " Tapped stereo delay distributed across the sound field

• Pattern " Stereo delay with rhythmic pattern options

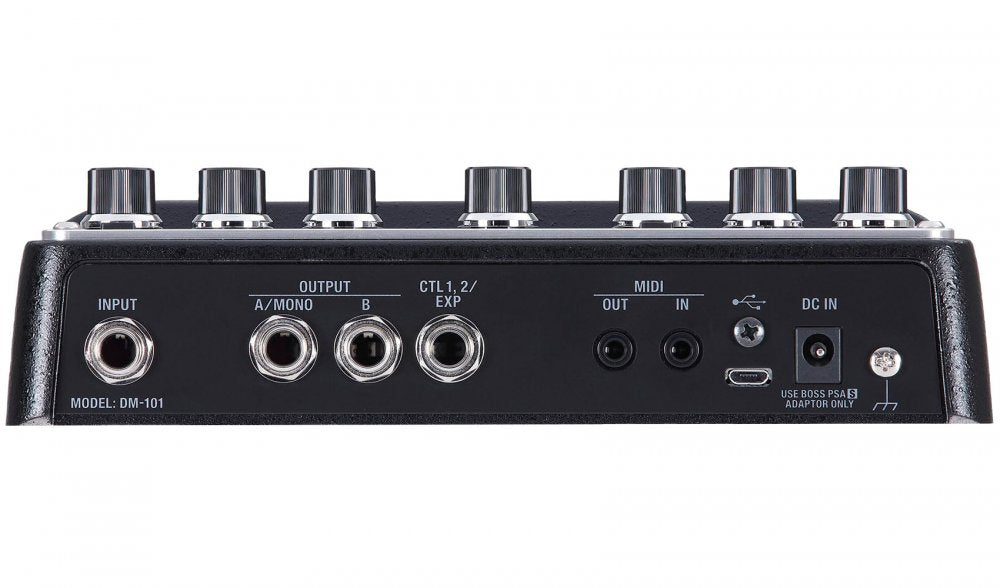

CONNECTIVITY:

• INPUT jack (1/4-inch phone type)

• OUTPUT A (MONO) jack (1/4-inch phone type)

• OUTPUT B jack (1/4-inch phone type)

• CTL 1, 2/EXP jack (1/4-inch TRS phone type)

• MIDI (IN, OUT) jacks (Stereo miniature phone type)

• DC IN jack

• USB port (Micro B-type, for program updates only)

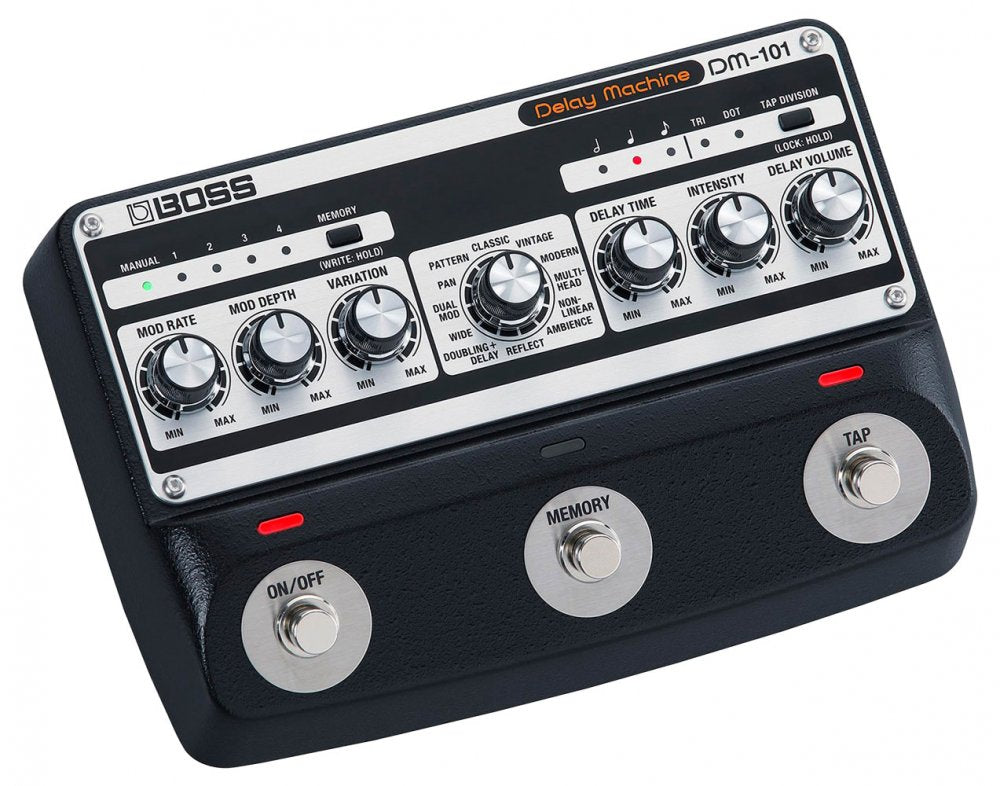

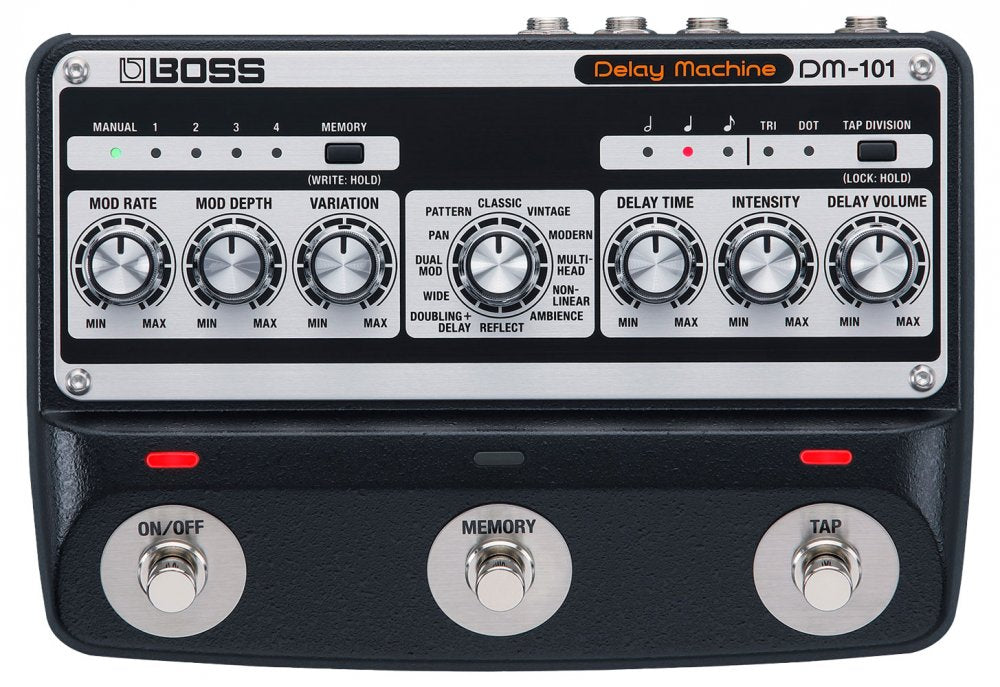

CONTROLS:

• ON/OFF switch for engaging the effect

• MEMORY switch for preset selection

• TAP switch for tempo adjustment

• MOD RATE knob for modulation speed

• MOD DEPTH knob for modulation intensity

• VARIATION knob for parameter adjustment specific to each mode

• MODE knob for selecting delay type

• DELAY TIME knob for setting delay duration

• INTENSITY knob for feedback control

• DELAY VOLUME knob for output level adjustment

• MEMORY button for saving and recalling presets

• TAP DIVISION button for rhythmic subdivisions

POWER SUPPLY:

• AC Adaptor (included)

• Current draw: 260 mA

TECHNICAL SPECIFICATIONS:

• Nominal input level: -10 dBu

• Input impedance: 1 M

• Nominal output level: -10 dBu

• Output impedance: 1 k

• Recommended load impedance: 10 k or greater

PHYSICAL SPECIFICATIONS:

• Width: 7.56 in

• Length: 5.24 in

• Height: 2.04 in (2.09 in including rubber foot)

• Weight: 1 lb 14 oz
