JBL SRX812

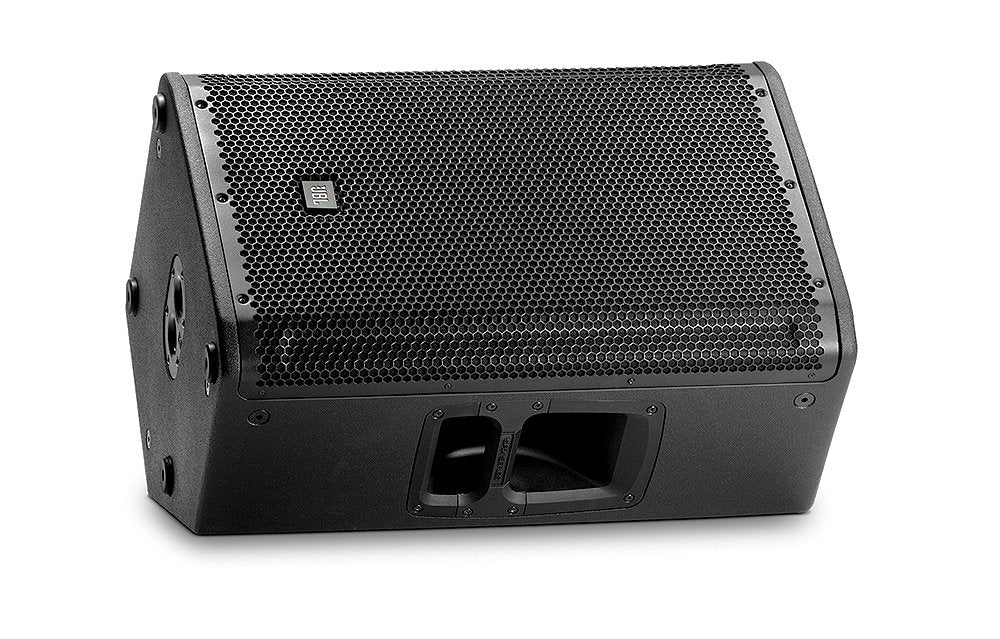

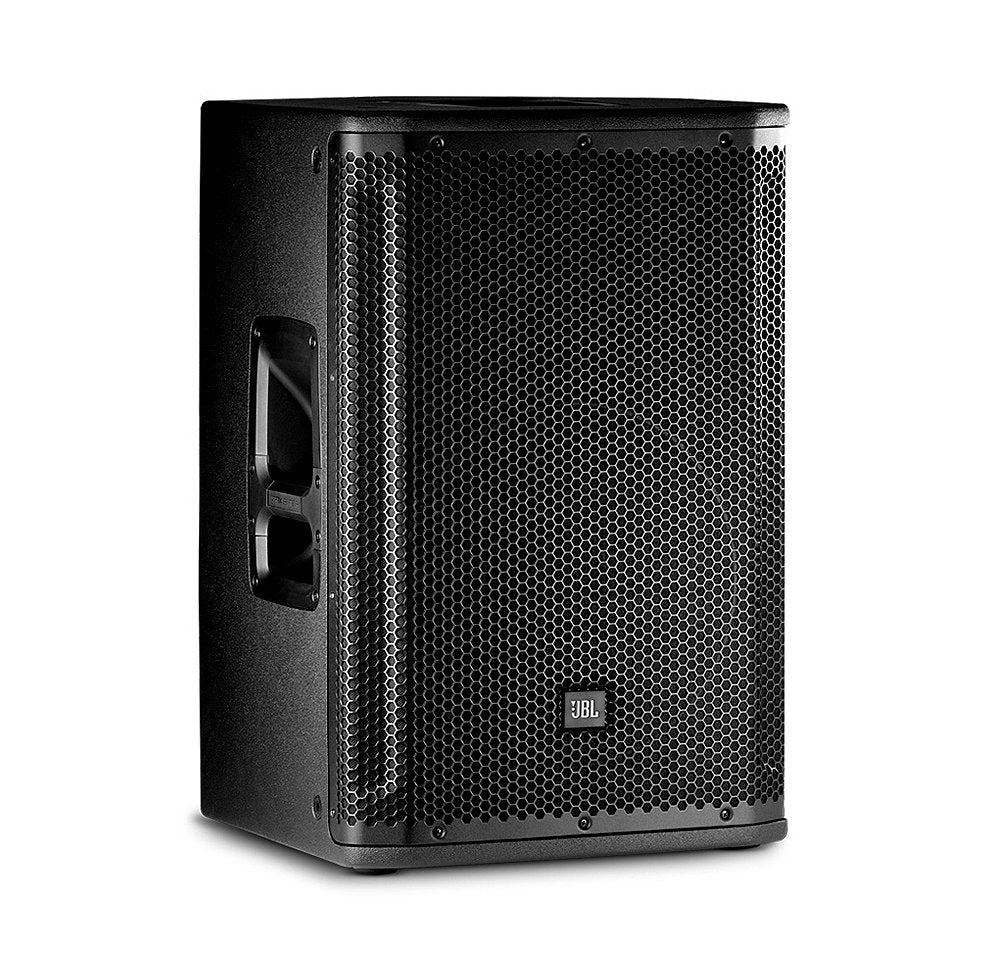

SRX812 is a two-way full range passive portable speaker with a 12" woofer made for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX812 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Applications Live performance systems Mobile and fixed DJ systems Sound system rental and tour Permanent installations

FEATURES:

• Premium JBL Transducers

• Tunings available for Crown amps and dbx signal processors

• Fully supported in Audio Architect

• Power Handling: 3200W Peak, 1600W Program, 800W Continuous

• Frequency Range: 41Hz-20kHz

• Frequency Response: 57Hz-20kHz

• Max SPL: 129dB (Peak)

• Coverage Pattern: 90 x 50

• Amplification options: Passive/Bi-Amp

System Type: Passive 12", two-way, bass-reflex

Maximum SPL Output: 123dB (Continuous), 129dB (Peak)

Frequency Range (-10dB): 41hz - 20khz

Frequency Response (-3 dB): 57hz - 20khz

Sensitivity: 94dB

System Power Rating: 3200W Peak, 1600W Program, 800W Continuous

Nominal Impedance : 8 Ohm

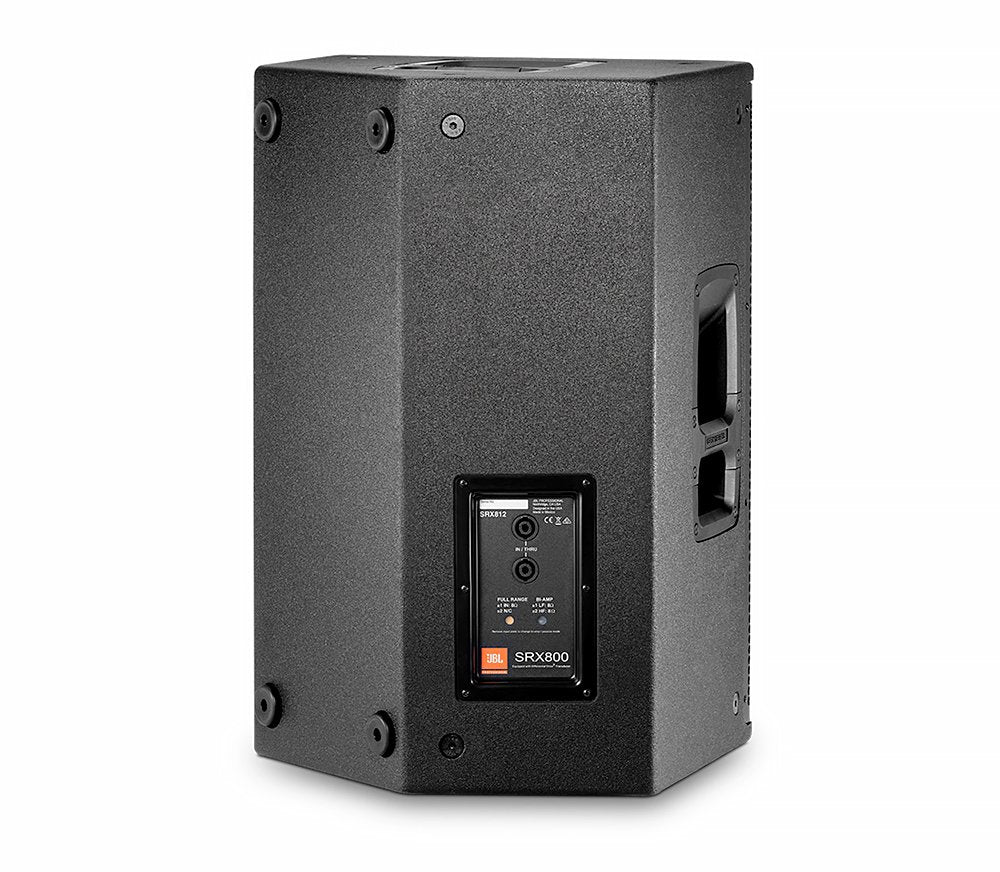

Inputs: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes: Passive/Bi-Amp

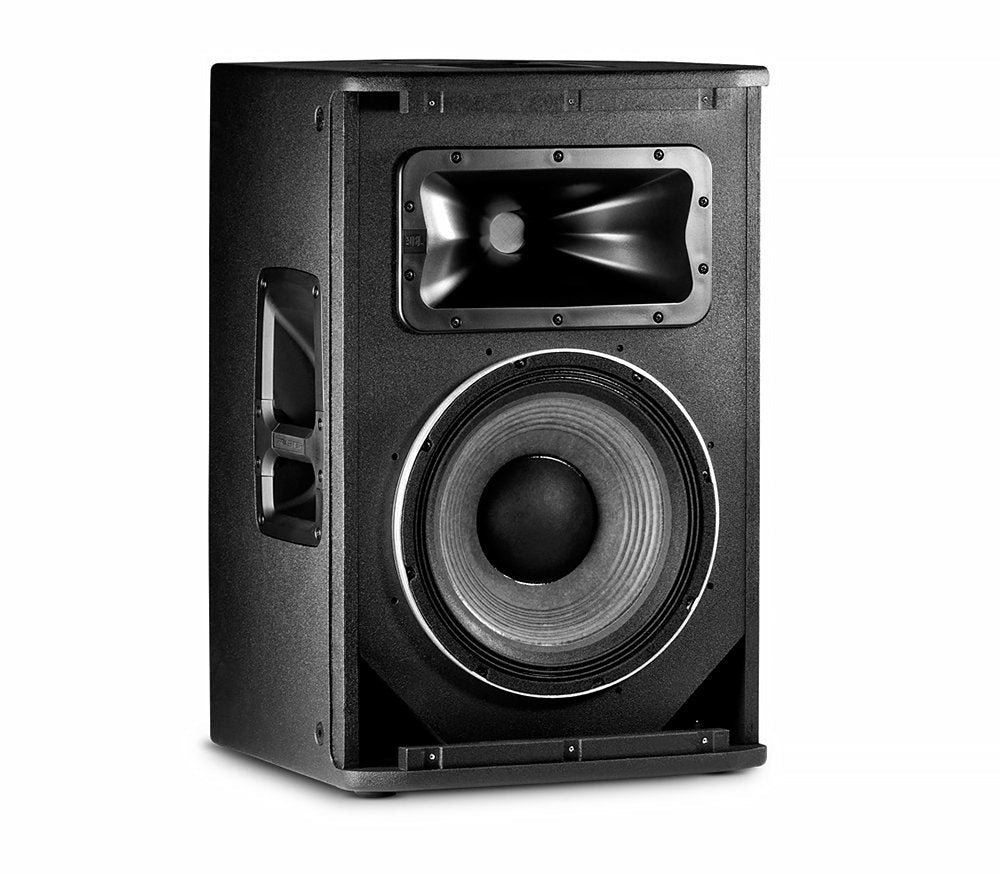

LF Driver: 2272H

HF Driver: 2432H

Coverage Pattern: 90 x 50

Crossover Frequency: 1.9khz

Enclosure: 18mm Duraflex coated plywood

Monitor Angle: 50

Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points

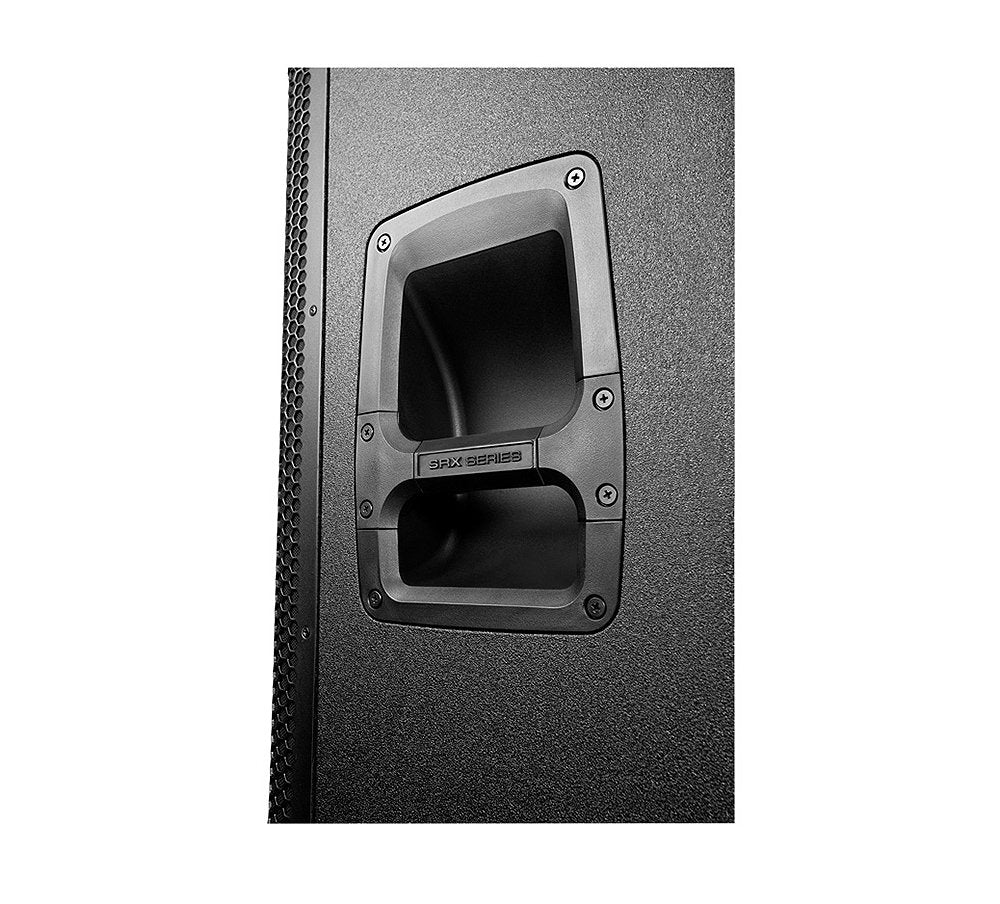

Handles: 3

Finish: Obsidian Duraflex™ finish

Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

Dimensions (H x W x D): 429mm x 415mm x 638mm (16.87in x 16.31in x 25.11in)
