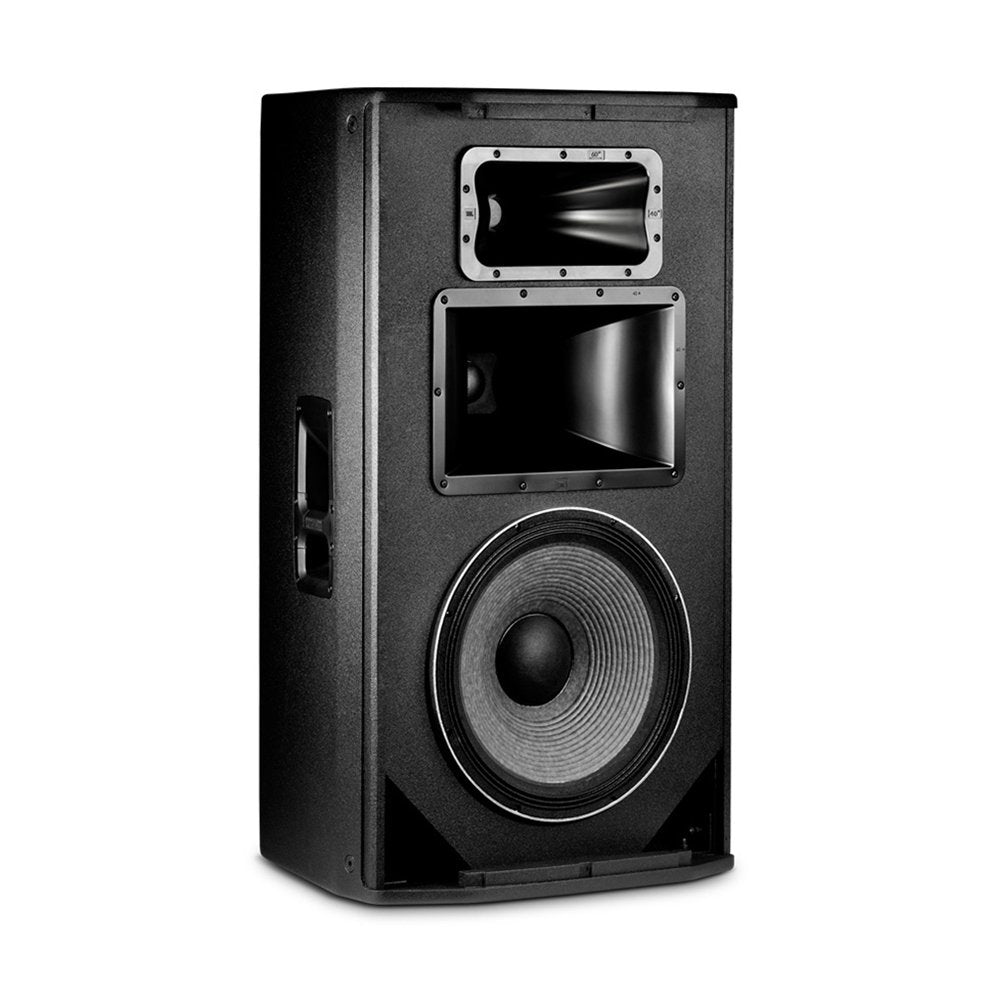

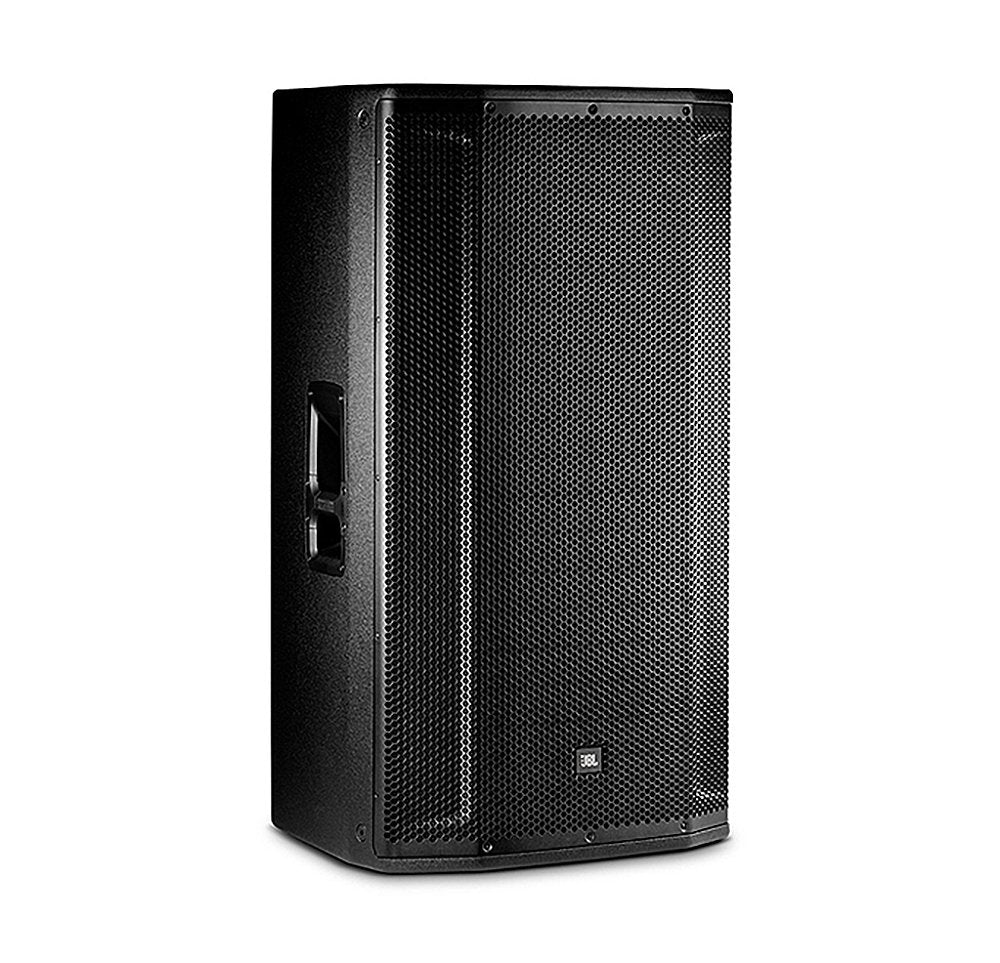

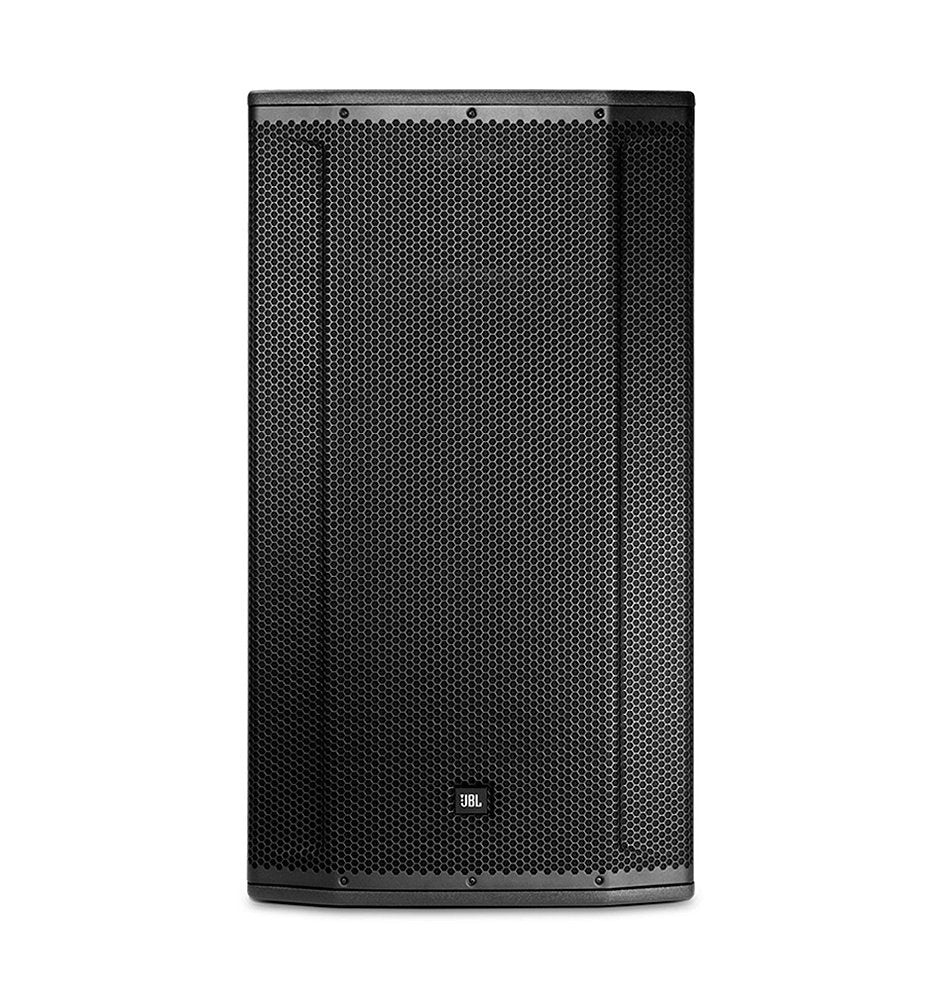

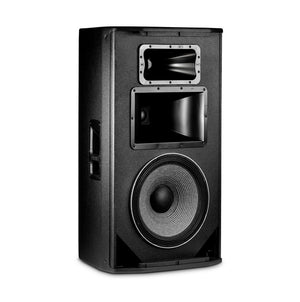

JBL SRX835

SRX835 is a three-way full range speaker with a 15" woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

• Premium JBL Transducers

• Rugged, versatile enclosures

• Tunings available for Crown amps and dbx signal processors

• Fully supported in Audio Architect

• Power Handling: 3200W Peak, 1600W Program, 800W Continuous

• Frequency Range: 32Hz-20kHz

• Frequency Response: 43Hz-20kHz

• Max SPL: 130dB (Peak)

• Coverage Pattern: 60x40

• Amplification options: Passive/Bi-Amp

System Type: Passive 15", three-way, bass-reflex

Maximum SPL Output: 124dB (Continuous), 130dB (Peak)

Frequency Range (-10dB): 32hz - 20khz

Frequency Response (-3 dB): 43Hz - 20Hz

Sensitivity: 95dB

System Power Rating: 3200W Peak, 1600W Program, 800W Continuous

Nominal Impedance: 8 Ohm

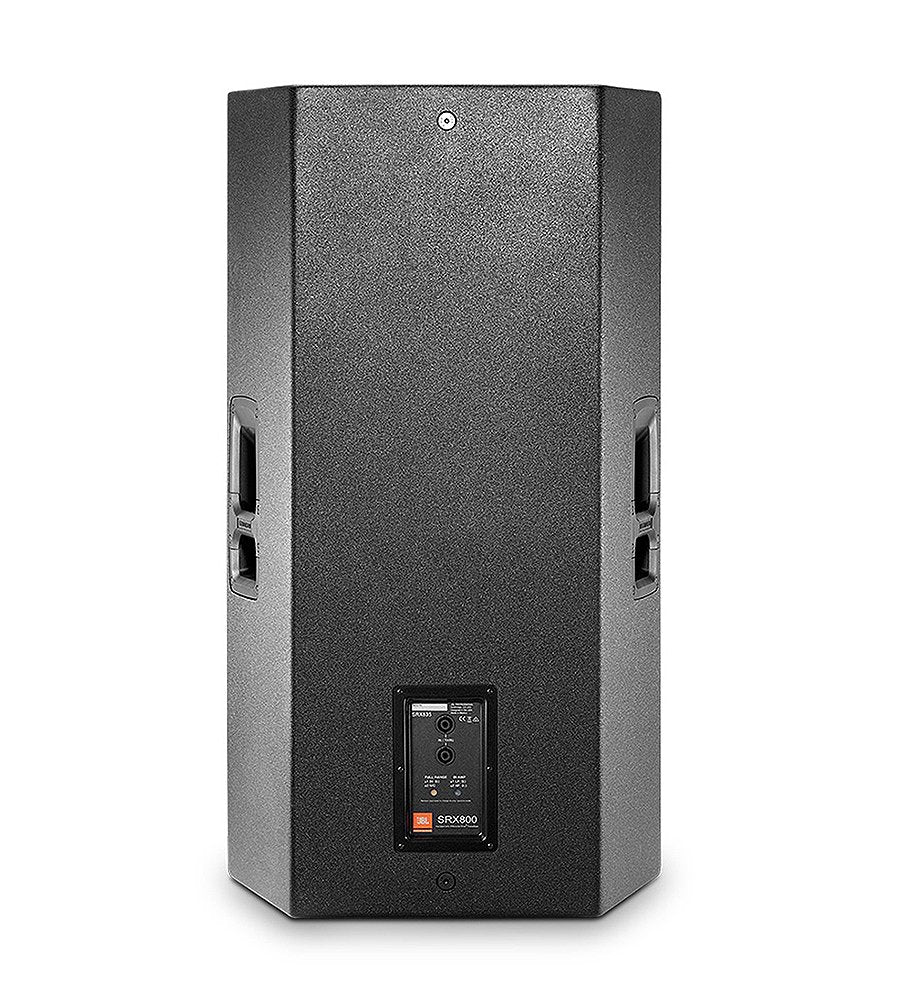

Inputs: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)

Operational Modes: Passive/Bi-Amp

LF Driver: 2275F

MF Driver: 2107H

HF Driver: 2432H

Coverage Pattern: 60 x 40

Crossover Frequency: 330hz & 2.4khz

Enclosure: 18mm Duraflex coated plywood

Suspension/Mounting: Single 36mm pole socket, 12 x M10 Suspension points

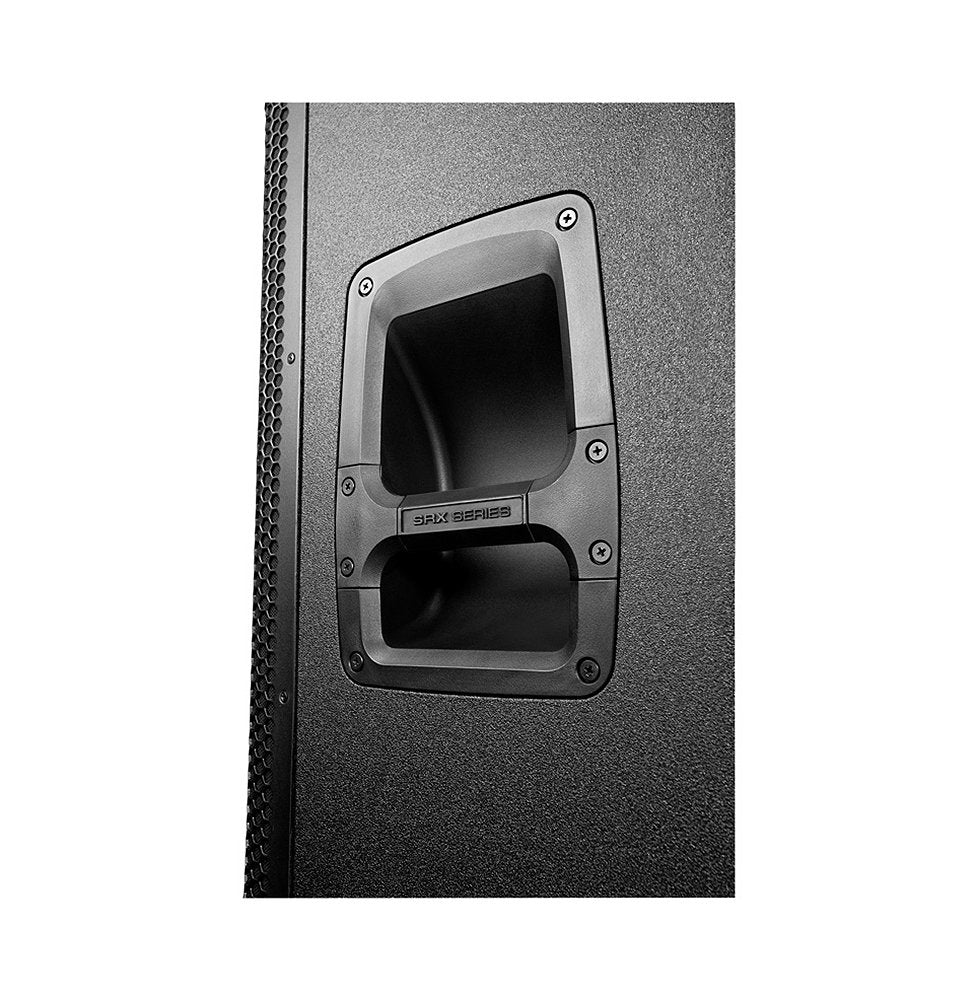

Handles: 2

Finish: Obsidian Duraflex™ finish

Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing

Dimensions (H x W x D): 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)

Weight 95.0 lbs (43.1kg)
