Nord Organ 3

The Nord Organ 3 is a stunning reimagination of the acclaimed Nord Organ series, designed to elevate the performance, sound, and playability of this beloved instrument. This next-generation organ offers an advanced engine with refined tonal realism, expanded modulation effects, and a highly realistic rotary speaker emulation. With these enhancements, the Nord Organ 3 is tailored for professional musicians seeking an immersive and authentic organ-playing experience.

The thoughtful design includes an OLED display for ease of navigation, a triple sensor keybed for superior response, and LED indicators for drawbar presets. New auxiliary output options, an enhanced B3 organ model, and improved Farfisa and Vox emulations add further versatility. Additionally, the instrument features two distinct pipe organ sounds, a rich bass synth engine, and a wide array of modulation effects like Phaser, Tremolo, and Ring Mod. The revamped reverb section, delay features, and detailed rotary and amp modeling ensure that the Nord Organ 3 delivers a sophisticated and dynamic sound tailored to any setting.

• OLED display with a new panel design.

• Triple sensor keybeds for better playability.

• LED indicators for drawbar presets.

• Aux output with flexible routing options.

• Per program Transpose function.

• 11-pin Leslie connector and high-level output.

• Enhanced B3 organ model with improved Chorus/Vibrato.

• Upgraded Farfisa and Vox organ models.

• New Rotary Speaker emulation with adjustable mic placement and drive options.

• British amp and speaker emulation with additional settings.

• Two distinct Pipe Organ emulations.

• New Synth Bass options inspired by classic pedal synthesizers.

• Expanded reverb options, including a new Spring reverb and Pre-Rotary setting.

• Analog-style delay with advanced filters.

• New modulation effects: Phaser, Tremolo, Ring Mod, Flanger, and Chorus.

• Equalizer with a sweepable mid band.

GENERAL:

• Master Level Control

• OLED display

• Transpose button

• 2 Drawbar sets per manual

• 1 LED indicator set per manual

• Pedal drawbars

• Aux output for optional Bass/Pedal routing

• 400 Program locations

• 3 Live Programs

• 1 Program and 2 Preset buttons per manual

• Drawbar A and B selector buttons per manual

ORGAN SECTION:

• B3, Vox, Farfisa models with full polyphony

• 2 Pipe Organ models with full polyphony

• Organ Bass models: B3, Vox, Farfisa and Pipe

• Synth Bass models: B3 synth, Trek and Taurus

• Percussion Controls with Poly and DB9 Cancel options

• Vibrato/Chorus with B3 Deep mode

ROTARY SPEAKER/AMP SECTION:

• Brand new Rotary Speaker emulation

• Multiple options for microphone placement

• 3 Drive Types and Drive amount control

• JC, Brit and Twin amp and speaker emulations

EFFECTS:

• Modulation: Phaser, Tremolo, Ring Mod, Flanger and Chorus with Rate and Amount controls

• 3-band Equalizer with sweepable middle band

• Delay: Analog mode, LP/HP/BP Feedback filters, Feedback Amount, Dry/Wet control, Tempo control with Tap option, Upper Manual only mode

• Reverb: Spring, Booth, Room, Stage, Hall, Cathedral, with Chorale, Bright/Dark, Pre-Rotary option and Amount control

KEYBOARD:

• 2 x 61 Triple Sensor Semi Weighted Waterfall Keyboard

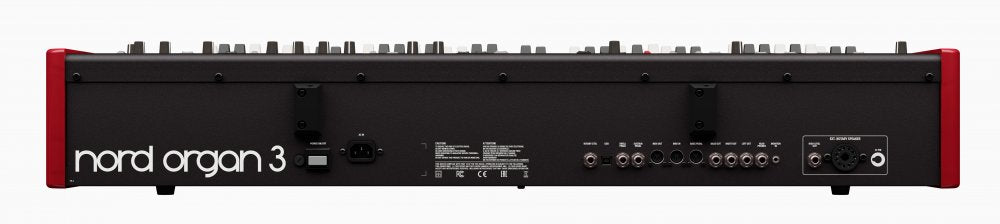

CONNECTIONS:

• Stereo Headphone Output - ¼", 6,35 mm stereo jack

• 2 Line Level Audio Outputs, L & R - ¼", 6,35 mm jacks, unbalanced

• 11-pin Leslie standard connector

• High Level Out ¼", 6,35 mm jack

• Aux Out ¼", 6,35 mm jack

• Monitor Input - 1/8", 3,5 mm stereo jack

• Sustain Pedal Input - ¼", 6,35 mm jack

• Rotor Control Input - ¼", 6,35 mm jack, Half-Moon Switch or momentary pedal

• Swell Pedal Input - ¼", 6,35 mm TRS stereo jack

• MIDI In - 5 pin DIN connector

• MIDI Out - 5 pin DIN connector

• Bass Pedal MIDI In - 5 pin DIN connector

• USB - type B connector

• IEC C14 power connector

DIMENSIONS:

• 985mm(38,8") x 165mm (6,5") x 446mm (17,6")

WEIGHT:

• 17kg (37.5lbs)

INCLUDED ACCESSORIES:

• User Manual

• Power cord

OPTIONAL ACCESSORIES:

• Nord Pedal Keys 25

• Nord Pedal Keys 27

• Half-Moon Switch

• Nord Organ Stand

• Nord Single Pedal 1

• Nord Single Pedal 2

• Nord Triple Pedal 1
