Aputure Spotlight Mini Zoom for LS-60d/x

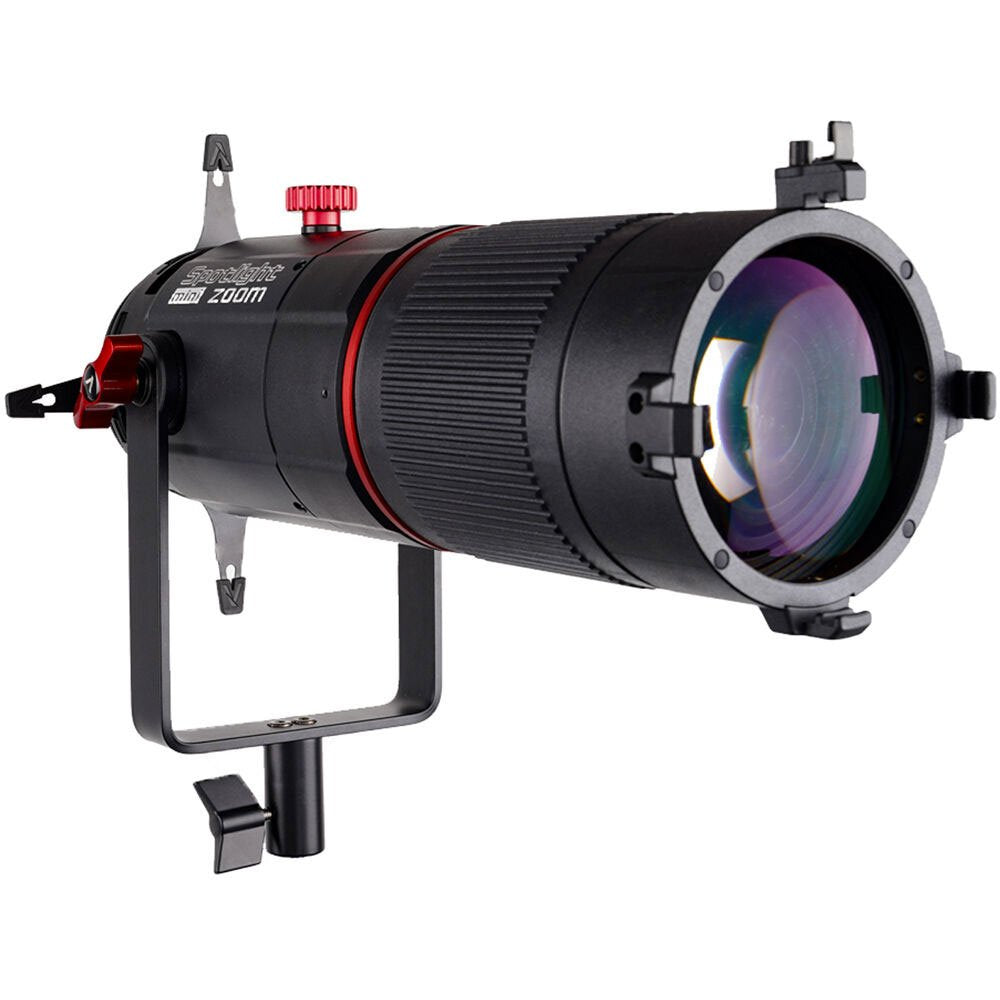

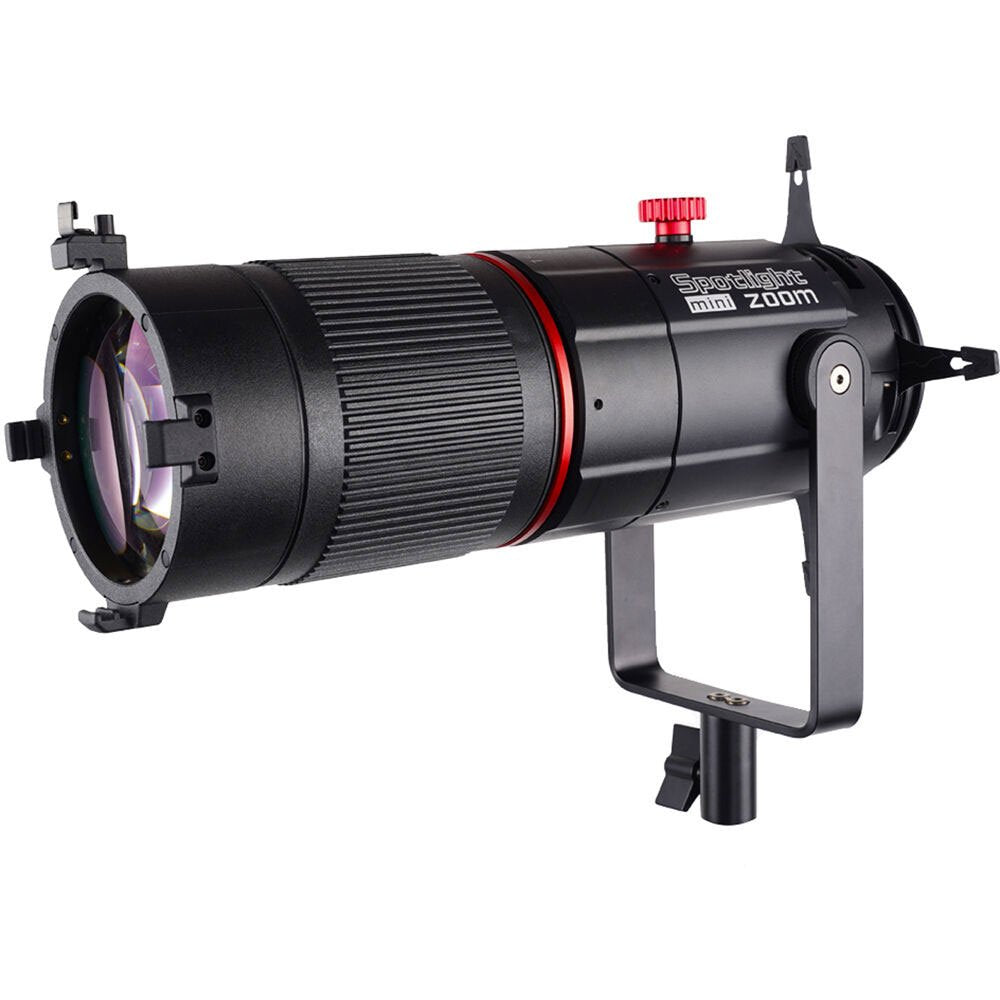

PRECISION LIGHTING TOOL The Spotlight Mini Zoom is an adjustable beam angle projection lens designed for the LS 60d and LS 60x Focusing LEDs. By mounting the LS 60d or 60x onto the Spotlight Mini Zoom, the combined fixture gives users the ability to completely redefine the shape of their lighting.

2X OPTICAL ZOOM The zoom functionality allows the Spotlight Mini Zoom to adjust between a 15 to 30 beam spread, giving users an effective 2x zoom range, with an illumination circle with a diameter of 1.4m to 2.8m from 5m away.

IMPECCABLE CLARITY Featuring custom-designed Aputure precision optics, the Spotlight Mini Zoom displays immaculate projection quality, with minimal color fringing, and an over 80% edge-to-edge homogenous light distribution.

SHARP LIGHT CONTROL Like any proper projection lens for lighting, the Spotlight Mini Zoom is the filmmakers' scalpel, with each blade of its 4-leaf shutter design allowing users to achieve accurate cuts and light shaping.

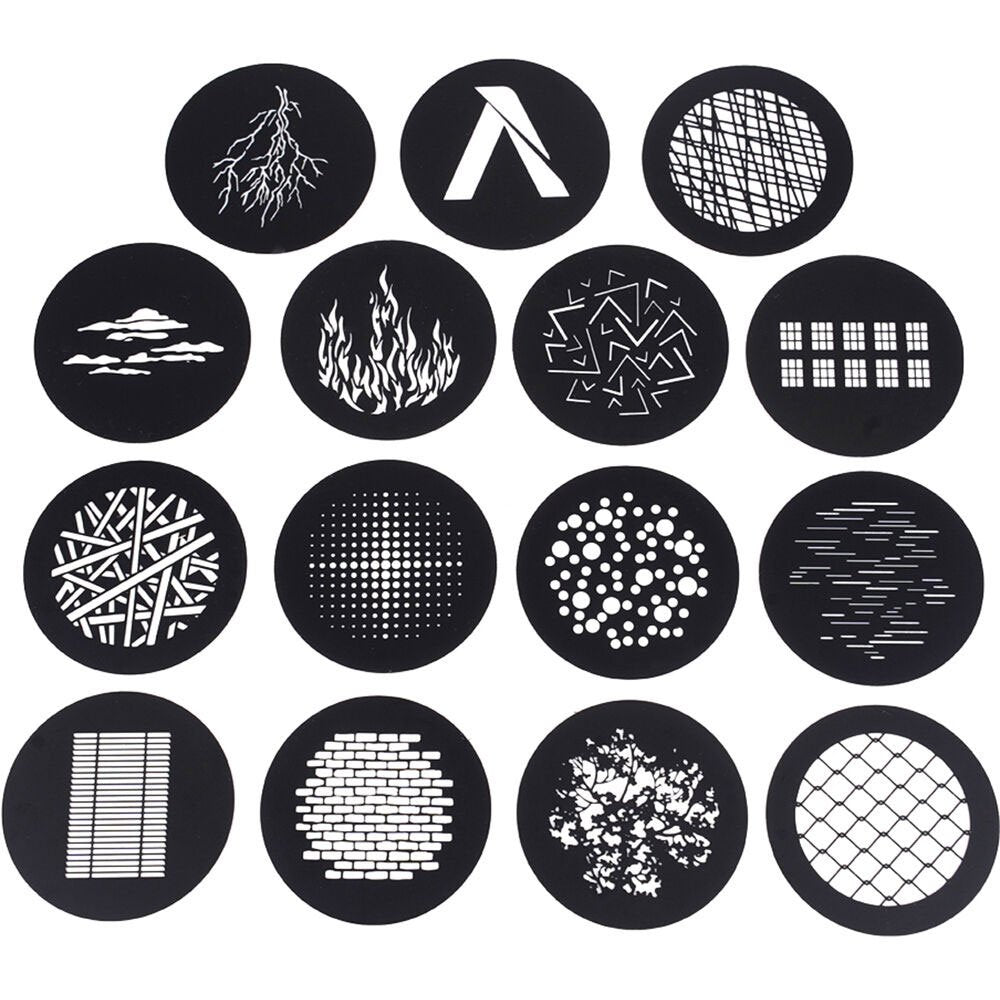

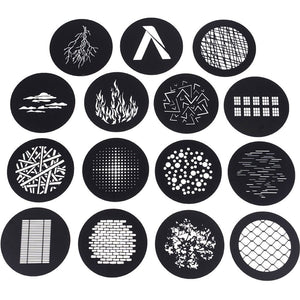

15 GOBOS Compatible with M-Size Gobos, the Spotlight Mini Zoom, includes a Gobo holder, and 15 different gobo patterns give filmmakers ultimate flexibility and creativity in their lighting design.

18-LEAF IRIS An 18-leaf Iris is an essential addition to the Spotlight Mini Zoom that allows users to further control the size of the illumination circle and tighten the beam spread with incredible ease.

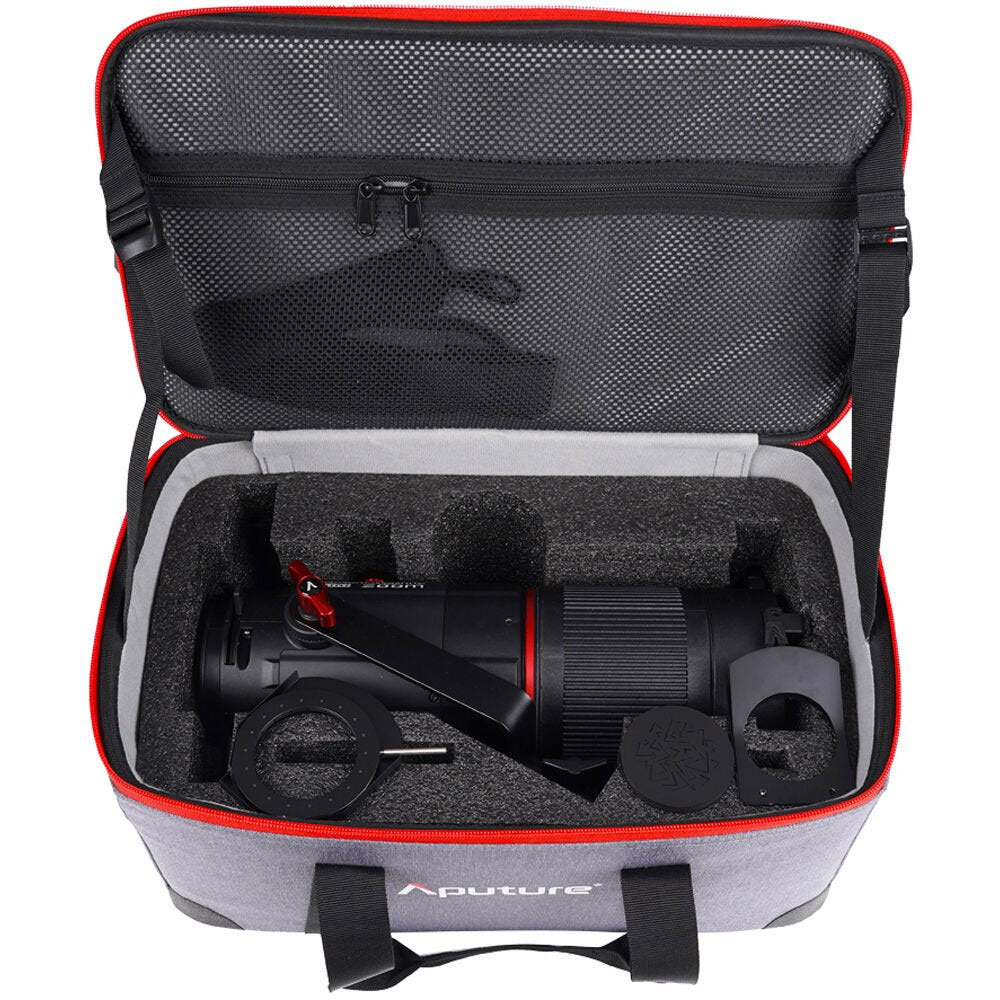

TRAVEL SMART The Spotlight Mini Zoom is packed inside a durable soft carrying case that houses all of its accompanying light shaping tools, making it easy for it to travel with you to any film set.

• 2X Optical Projection Lens

• Adjustable 15 to 30 Beam Angle

• Built-In Shutters

• Drop-In Iris

• Accepts M-Size Gobos

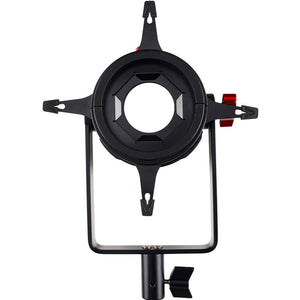

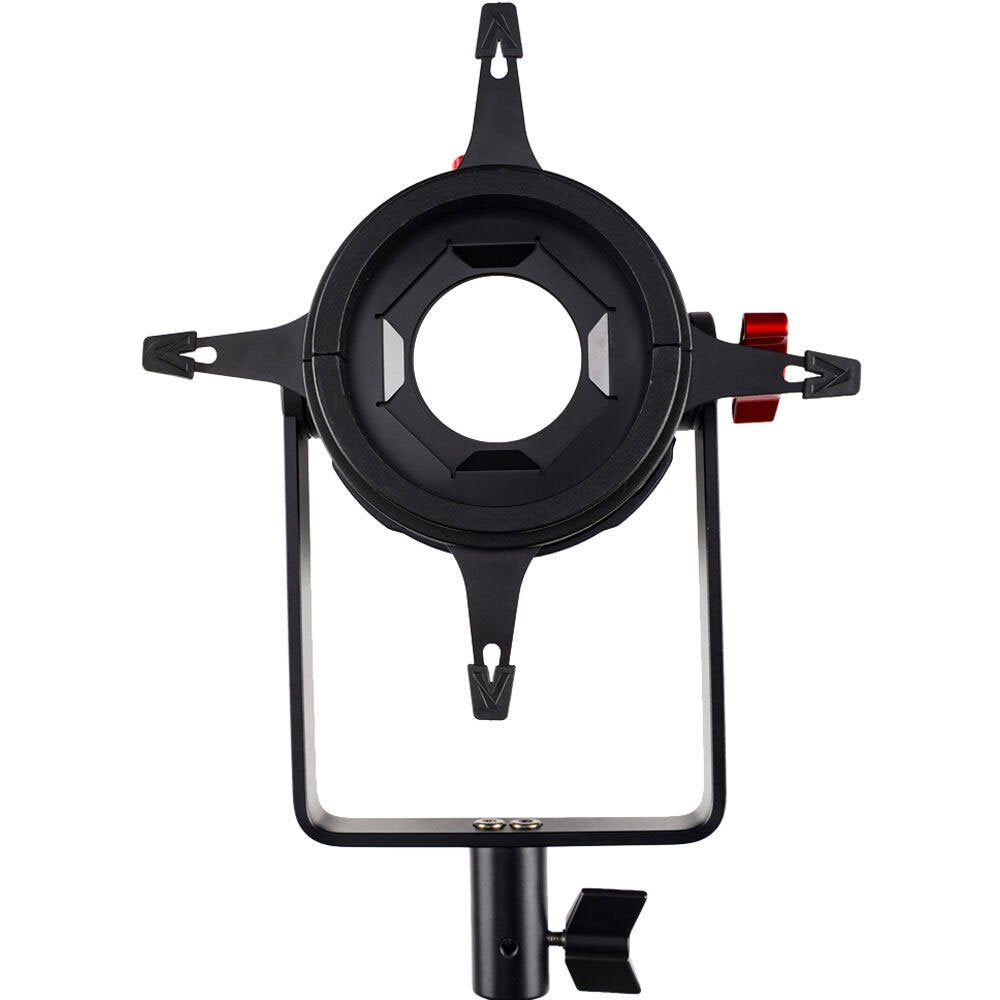

• Rosette-Style Locking Yoke

• Beam Angle: 15-30

• Optical Zoom Range: 2X

• Gobo Size: M-Size

• Iris Slot Dimensions: 10*87.5*103mm / 0.4*3.4*4.1in

• Accessory Slot Diameter: 106mm / 4.2in

• Gel Slot Diameter: 123.5mm / 4.9in

• Construction Material: Aluminum Alloy

DIMENSIONS:

• Spotlight Mini Zoom w/o Yoke: 163.5*163.5*378mm / 6.4*6.4*14.9in

• Spotlight Mini Zoom with Yoke: 170*285*378mm / 6.7*11.2*14.9in

• Spotlight Mini Zoom Iris: 126*87*8.7mm / 5*3.4*0.4in

• Total with Carrying Case: 475*295*255mm / 18.7*11.6*10in

WEIGHT:

• Spotlight Mini Zoom without Yoke: 4095g / 9lbs

• Spotlight Mini Zoom with Yoke: 4400g / 9.7lbs

• Spotlight Mini Zoom Iris: 77g / 0.2lbs

• Total with Carrying Case: 6580g / 14.5lbs

WHAT'S IN THE BOX:

• Spotlight Mini Zoom: 1

• M-Size Gobos: 15

• M-Size Gobo Holder: 1

• 18-Leaf Iris: 1

• Carrying Case: 1
