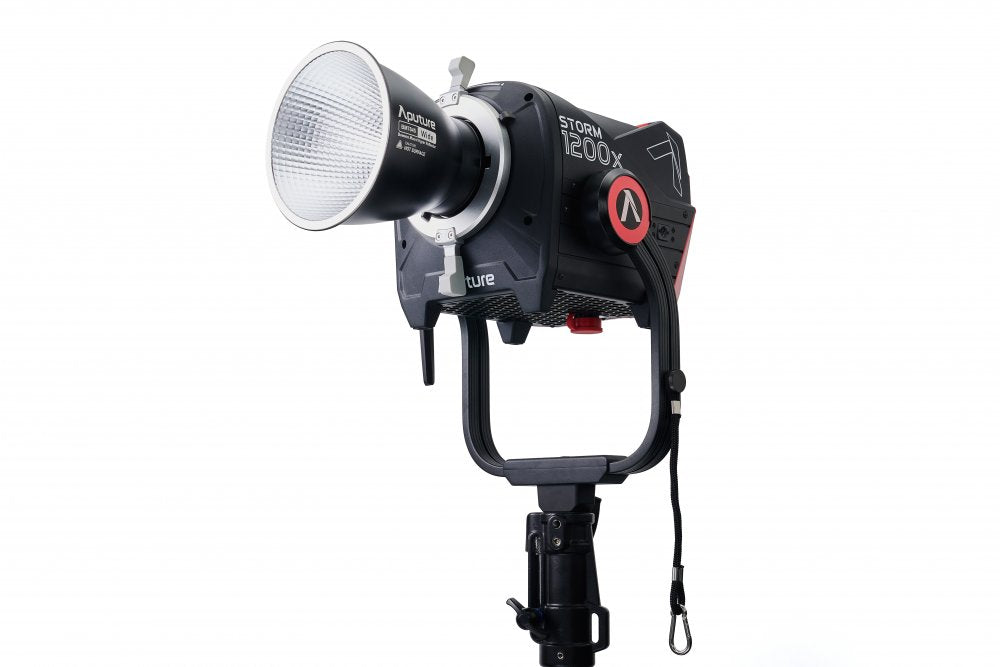

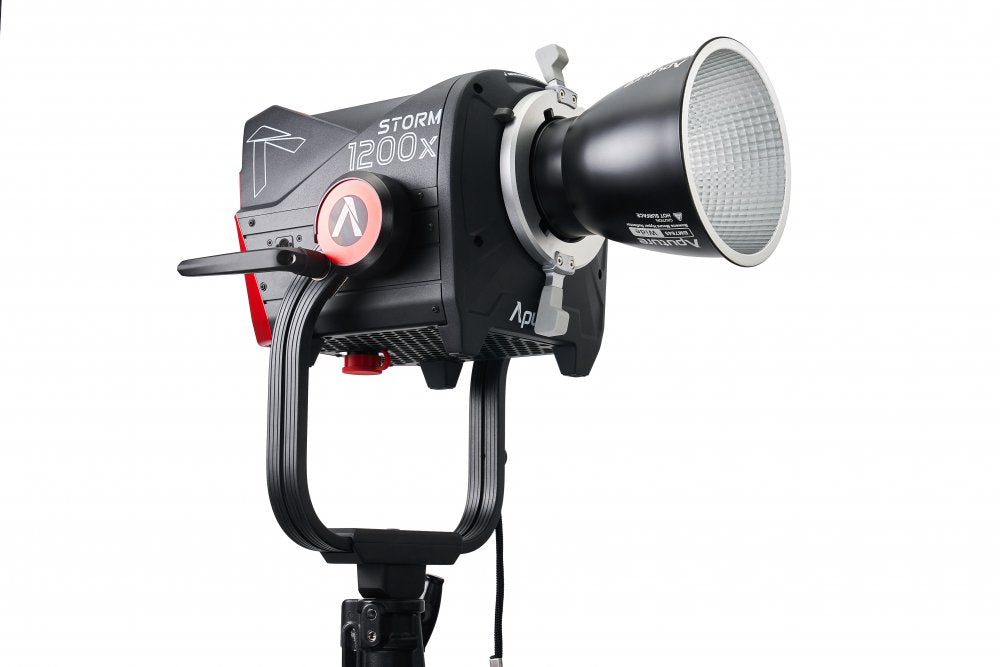

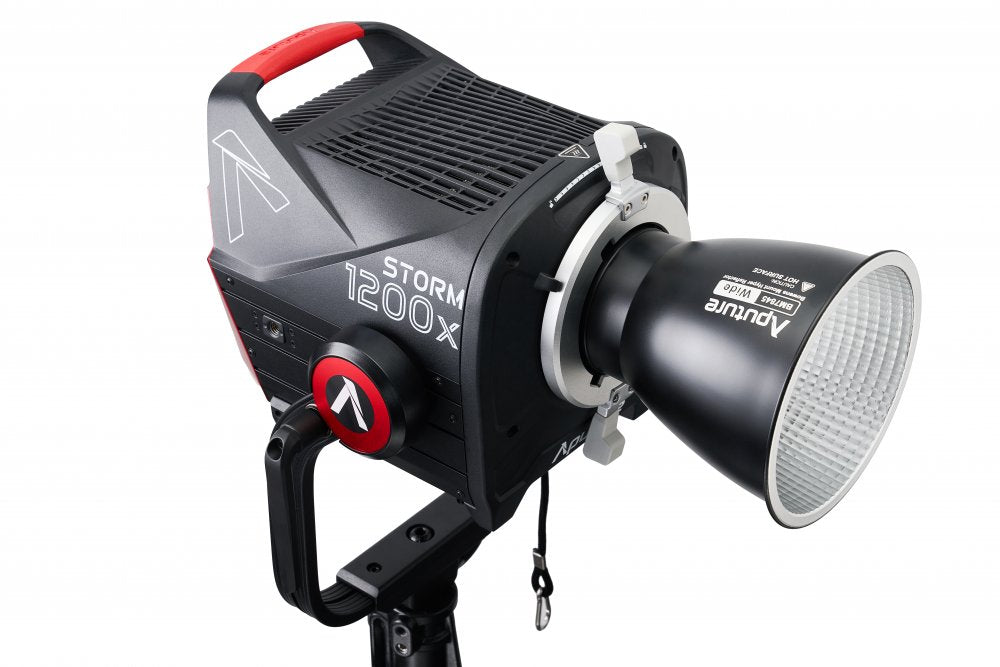

Aputure Storm 1200x with Wide Reflector

The Aputure STORM 1200x is a versatile, high-output lighting fixture designed for professionals in the film, photography, and video production industries. As the first in Aputure's STORM series, it offers a powerful 1,200W tunable-white LED with a broad color temperature range of 2,500K to 10,000K. This dual-color point-source light is built around Aputure's proprietary BLAIR chipset, which ensures highly efficient color blending and exceptional brightness. It is capable of producing up to 22,500 lux at 3 meters, providing accurate color rendering for daylight and tungsten lighting conditions.

The STORM 1200x is equipped with multiple control options, including DMX512, LumenRadio CRMX, and Sidus Link app compatibility, making it easy to integrate into professional lighting setups. It features advanced dimming technology for flicker-free performance and offers 0.1% to 100% stepless brightness control. Its rugged, weather-resistant IP65 rating makes it reliable for use in challenging shooting environments. The Bowens Mount allows compatibility with a wide range of industry-standard light modifiers, further enhancing its adaptability across various lighting needs.

• High output lighting

• Tunable white light

• Advanced LED chipset

• Multiple control options

• IP65 dust and weather resistance

• Stepless dimming

• ProLock Bowens mount

• 9 Lighting Effects

• Portable and durable

GENERAL SPECIFICATIONS:

• 1200W Tunable-White Point Source Fixture

• BLAIR LED Chipset (Blue, Lime, Amber, Indigo, Red)

• 1440W max power draw

• IP65 dust and water resistance

• Operating voltage: 100-240V AC, 50/60Hz

• Operating temperature: -20C to 45C (-4F to 113F)

• Storage temperature: -40C to 80C (-40F to 176F)

PHOTOMETRICS:

• 22,500 lux @ 3m with 45º reflector (5,600K)

• <60 lux @ 1m minimum output (5,600K)

• Beam angles: 15º (narrow), 30º (medium), 45º (wide)

COLOR SPECIFICATIONS:

• CCT range: 2,500K to 10,000K

• ±G 100% Green/Magenta adjustment (Full ASC MITC Range)

• CRI ≥95 at 3,000K

• TLCI ≥95 at 3,200K

• CQS ≥94

• SSI: 87 (Tungsten, P3200) and 87 (D56, CIE D5600)

• TM-30 RF average: 95

• TM-30 RG average: 100

DIMMING & CONTROL:

• 0.1%-100% stepless dimming range

• Control methods: On-board, Sidus Link/Sidus Link Pro App, 16-bit DMX512 (5-pin In/Out), CRMX, Art-net & sACN via etherCON

• Firmware upgradeable via USB, Sidus Link

FAN & NOISE LEVELS:

• Fan modes: Auto/Smart, High, Medium, Low, Delayed, Silent

• Lamp head noise: 52 dBA (Smart), 43 dBA (High), 34.4 dBA (Medium), 31 dBA (Low), 0 dBA (Silent)

• Control box noise: 28.5 dBA in all modes

DIMENSIONS & WEIGHT:

• Lamp head (with yoke): 33.4 x 33.6 x 55.7 cm (13.2 x 13.2 x 21.9 in)

• Control box: 13.6 x 18.9 x 34.4 cm (5.4 x 7.4 x 13.5 in)

• Lamp head (with yoke) weight: 9.50kg (20.94lbs)

• Control box weight: 5.92kg (13.05lbs)

• Head cable weight: 1.81kg (3.99lbs)

• AC power cable weight: 0.65kg (1.43lbs)

WIRELESS RANGE:

• Sidus Bluetooth range: ≤100m (262.5ft)

• CRMX (TimoTwo) range: ≤100m (262.5ft)

SPECIAL MODES:

• High-Speed Photography Mode

• Lead-Follow Mode

• Studio Mode

LIGHTING EFFECTS:

• 9 lighting effects: Paparazzi, Fireworks, Flickering Bulb, Cannon, Lightning, TV, Pulse, Flash, Explosion, Flame

• 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped

• 12 DMX profiles

• 10 savable presets

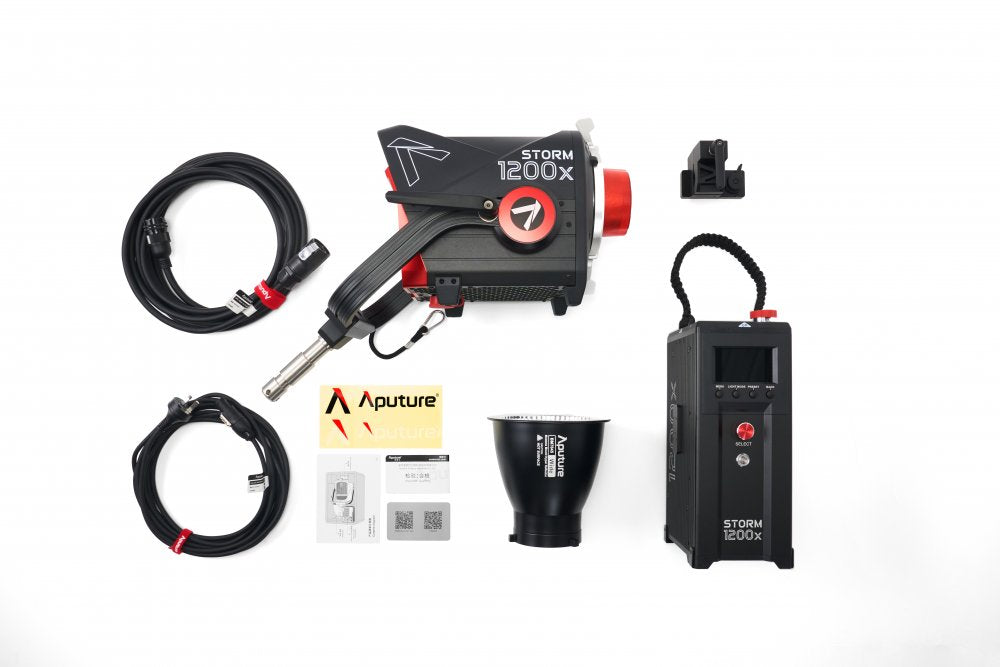

INCLUDED ACCESSORIES:

• STORM 1200x Lamp Head

• STORM 1200x Control Box

• Lightning Clamp

• 45º Wide Reflector

• 8-pin Weatherproof Head Cable (7.5m)

• AC Power Cable (6m)

• Bowens Mount Protection Cover

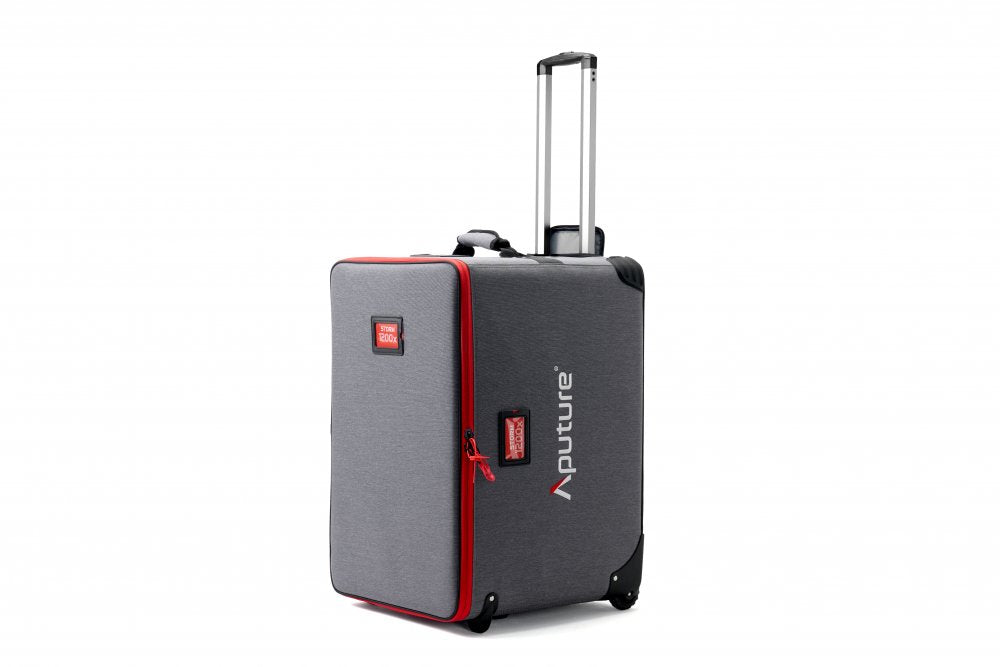

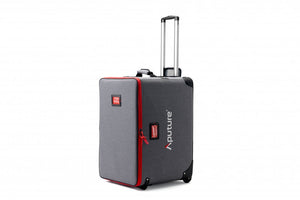

• Rolling Soft Case
