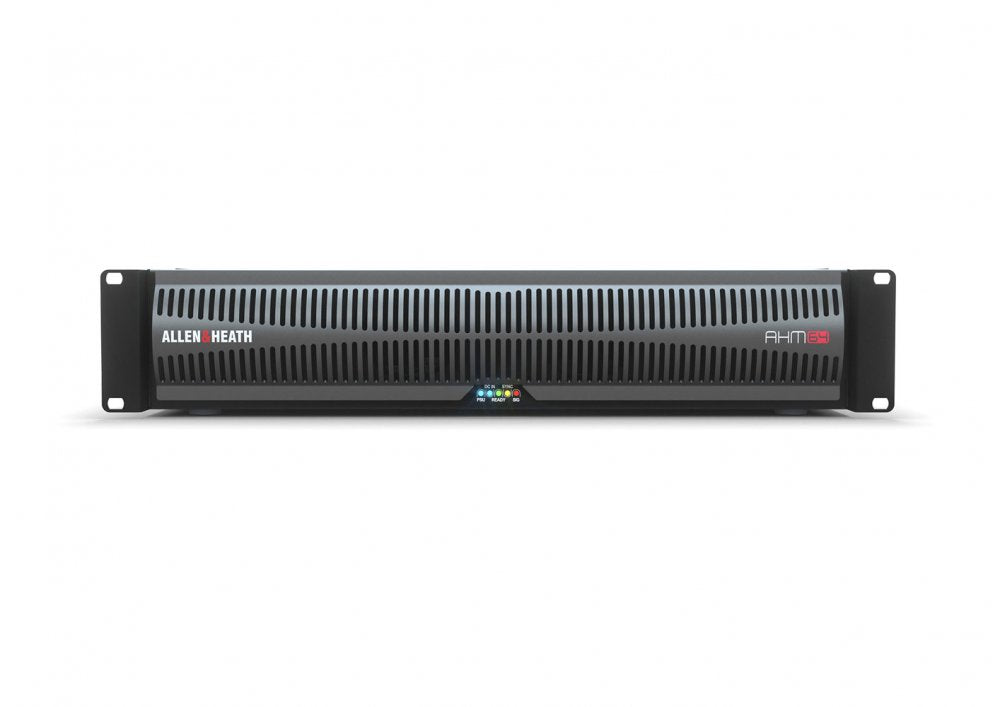

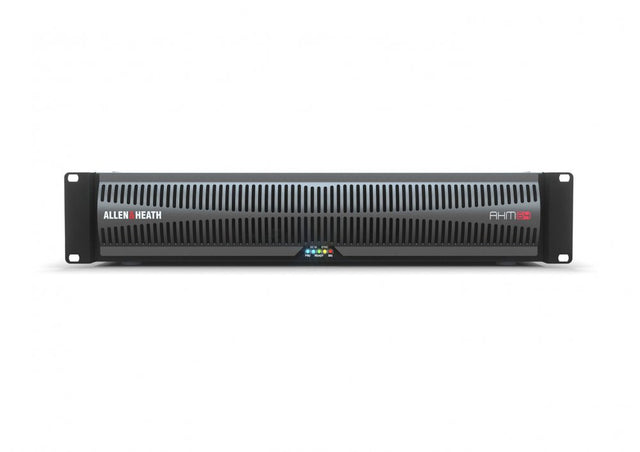

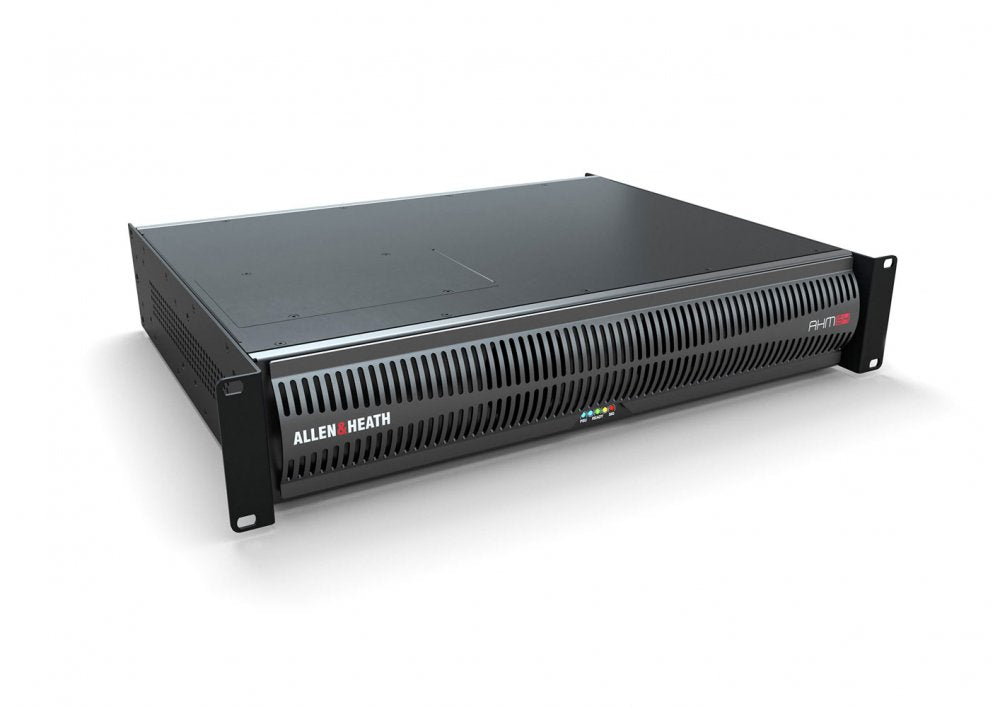

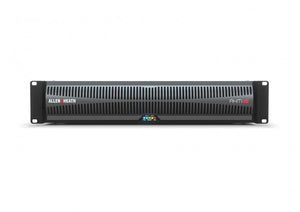

Allen & Heath AHM-64

Designed for the most demanding and expansive installations, the Allen & Heath AHM-64 stands at the top of the AHM series with a powerful 64-64 processing matrix. Capable of managing up to 64 zones and integrating with up to 96 remote controllers, it's a perfect fit for large venues, multi-room facilities, campuses, and enterprise-scale projects.

Equipped with 12 analog mic/line inputs and 12 relay-protected outputs, the AHM-64 also supports advanced audio networking via an I/O port that accepts Dante, MADI, Waves, or SLink cards. A built-in 128x128 SLink port offers further system expansion potential, allowing seamless integration of remote I/O and mixing components.

Its comprehensive DSP toolkit includes 8 automatic mic mixers, ambient noise compensation (ANC), priority ducking, extensive EQ, dynamics, delay, and speaker-specific processing. It's also AEC-ready for professional teleconferencing, with an optional module that provides multiple channels of acoustic echo cancellation.

The AHM-64 runs on a 96kHz FPGA core for ultra-low latency performance and supports extensive system customization. It features TCP/IP integration for third-party control (Crestron, AMX, Extron), a range of remote controller compatibility, 32 user profiles, and front-end user control via Custom Control apps. A DC backup power supply option ensures uninterrupted operation, making the AHM-64 an incredibly robust solution for mission-critical AV environments.

• Scalable 64-64 Matrix: Full routing and processing across 64 inputs and 64 outputs, ideal for expansive installations.

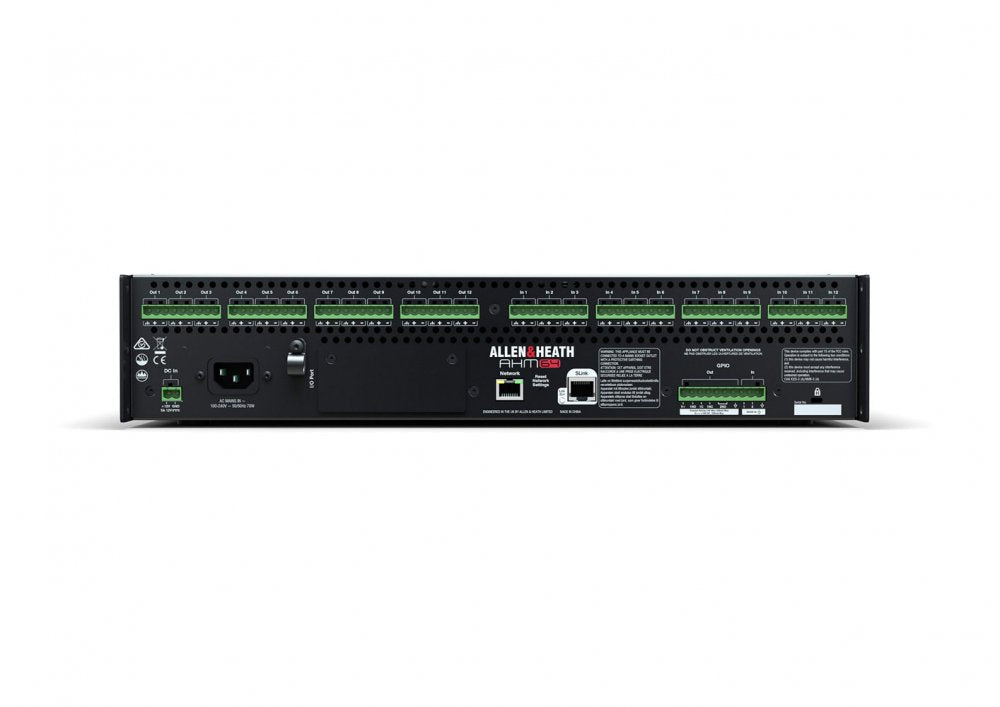

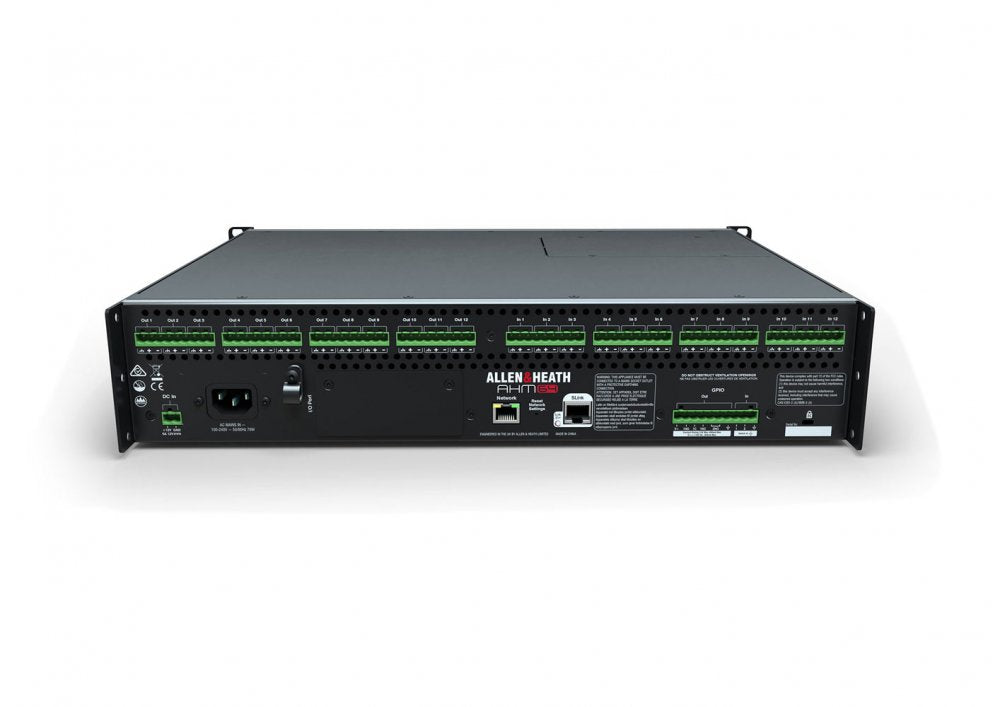

• 12-12 Local Analog I/O: Includes 12 mic/line inputs and 12 relay-protected line outputs via Phoenix connectors.

• Advanced Networking Options: Supports Dante, MADI, Waves, and includes built-in 128-128 SLink expansion port.

• Comprehensive Zone Processing: Each input and output offers 8-band PEQ, dynamics, delay, crossover, limiter, and all-pass filters.

• Powerful DSP Tools: Includes 8 automatic mic mixers, ambient noise compensation, ducking, and EQ ganging.

• Acoustic Echo Cancellation (AEC): Optional multi-channel AEC module tailored for conferencing and communication applications.

• System Control & Integration: Works with IP1, IP6, and IP8 controllers, and integrates with third-party systems (Crestron, AMX, Extron).

• 32 User Profiles & Event Scheduler: Customizable access and automation for large teams or complex schedules.

• Front-End Software & BYOD: Manage with Mac/Windows software or control via Custom Control app on user devices.

• Reliable Performance Core: 96kHz FPGA engine delivers ultra-low latency and stable audio performance.

• Backup Power Ready: Includes DC backup input for uninterrupted operation.

SIGNAL PROCESSING:

• 64-64 processing matrix

• Configurable mono/stereo zones or speaker processing

• 8x automatic mic mixers

• Acoustic Echo Cancellation (AEC) module for multiple channels

• Ambient Noise Compensation (ANC)

• Priority ducking

• 8-band PEQ, dynamics, and delay on all inputs and zones

• Output speaker processing: crossover filters, delay, limiter, PEQ, and all-pass filters

• EQ ganging: Relative, Absolute, and Mirrored controls

• Processing expansion module

INPUTS & OUTPUTS:

• 12x mic/line inputs (Phoenix connectors)

• 12x relay-protected line outputs (Phoenix connectors)

• 2-2 local GPIO

• Built-in 128-128 SLink port for expansion

• Audio networking I/O port (up to 128-128 channels)

• Optional networking cards: Dante (96kHz, AES67, DDM ready), MADI, Waves, SLink

HARDWARE FEATURES:

• 96kHz FPGA core with ultra-low latency

• Integrated stereo playback

• Event scheduler

• 32 user profiles

• DC backup power supply support

REMOTE CONTROL & INTEGRATION:

• Compatible with IP1, IP6, IP8 remote controllers

• TCP/IP protocol for third-party integration

• Networkable GPIO interface

• Crestron, AMX, and Extron control drivers

• Custom Control app and editor for BYOD

• Mac and Windows AHM System Manager software

APPLICATION SCOPE:

• Ideal for large-scale multi-zone, multi-room installations

• Suitable for campus-wide AV integration, corporate buildings, large hospitality venues, and educational institutions

• Tailored for AV conferencing environments with extensive AEC support
