DBX DBXAFS2-V

The dbx AFS2 is a standalone feedback suppression processor designed for both live and installed sound systems. It features a completely re-engineered Advanced Feedback Suppression (AFS) module and an intuitive full LCD display for setup and real-time monitoring. With its Wizard Setup function, the AFS2 eliminates the complexity of tuning for room acoustics, making feedback control both easy and precise.

Equipped with up to 24 programmable filters per channel, the AFS2 provides extensive feedback elimination capability with ultra-narrow Q values as tight as 1/80 of an octave. Whether used in stereo or dual mono mode, it delivers flexibility with live and fixed filter options, user-adjustable filter lift times, and application-specific filtering tailored for speech or music. It supports XLR and TRS inputs/outputs, making it a robust, user-friendly solution for virtually any sound reinforcement scenario.

• Automatic Feedback Elimination: Uses patented AFS technology to detect and remove feedback in real time without affecting sound quality.

• Up to 24 Filters per Channel: Offers powerful feedback control with both fixed and live filters for precision suppression.

• Easy Wizard Setup: Step-by-step setup wizard makes configuration fast and foolproof, even in unfamiliar spaces.

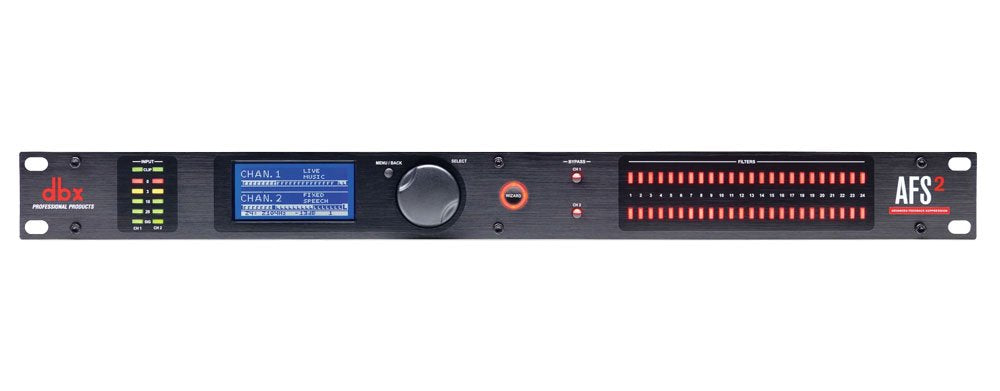

• Full LCD Display: Provides visual feedback and control for filter activity, metering, and setup status.

• Multiple Filter Modes and Types: Includes filter lift options and optimized settings for speech or music in various environments.

• Dual Channel Processing: Operates in stereo or as two independent channels, perfect for versatile applications.

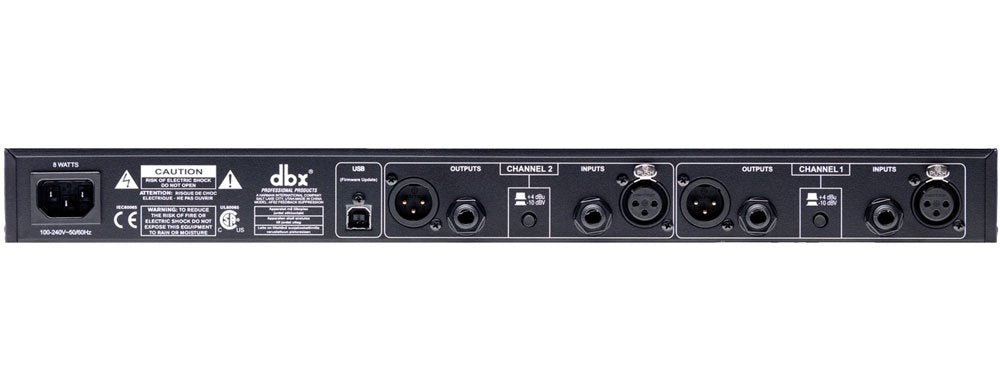

• Flexible Connections: Includes both XLR and 1/4'' TRS inputs and outputs to suit most audio setups.

• Metering and Status LEDs: Visual metering for input signal and active filters helps monitor and manage performance at a glance.

GENERAL SPECIFICATIONS:

• Feedback Suppression: Advanced Feedback Suppression (AFS) processor

• Use Cases: Installed sound, live sound reinforcement

• Display: Full LCD for setup and monitoring

• Setup Wizard: Intuitive configuration wizard included

• Filter Capacity: Up to 24 programmable filters per channel

• Filter Q: Up to 1/80 octave

• Modes: Fixed and Live filter modes

• Application-Specific Filters: Speech and Music (Low, Medium, High)

• Filter Lift: Selectable lift times

INPUT SECTION:

• Inputs: 2

• Connectors: Female XLR and 1/4" TRS

• Type: Electronically balanced/unbalanced, RF filtered

• Impedance: Balanced 50k ohm, Unbalanced 25k ohm

• Max Input Level: +20 dBu

• CMRR: >40 dB, typically >55 dB @ 1 kHz

OUTPUT SECTION:

• Outputs: 2

• Connectors: Male XLR and 1/4" TRS

• Type: Electronically balanced/unbalanced, RF filtered

• Impedance: Balanced >120 ohm, Unbalanced >60 ohm

• Max Output Level: +20 dBu

AUDIO PERFORMANCE:

• A/D Converter: dbx Type IV

• A/D Dynamic Range: >113 dB A-weighted, >110 dB unweighted

• Type IV Dynamic Range: >119 dB A-weighted, 22 kHz BW

• D/A Dynamic Range: 112 dB A-weighted, 109 dB unweighted

• Overall Dynamic Range: 109 dB A-weighted, 106 dB unweighted

• THD+Noise: 0.003% typical at +4 dBu, 1 kHz

• Frequency Response: 20 Hz - 20 kHz, +/-0.5 dB

• Interchannel Crosstalk: >80 dB typical

• Crosstalk Input to Output: >80 dB

• Sample Rate: 48 kHz

• Conversion: 24-bit A/D and D/A

INDICATORS AND MONITORING:

• Input Metering: Per-channel level monitoring

• Filter Status: 24 LED indicators per channel

POWER AND PHYSICAL:

• Operating Voltage: 100-120 VAC 50/60 Hz (EU: 220-240 VAC 50/60 Hz)

• Power Consumption: 9 W

• Dimensions: 1.75 in H x 19 in W x 5.75 in D (4.4 cm x 48.26 cm x 14.6 cm)

• Unit Weight: 4.5 lbs (2.04 kg)
