Mackie DLM8

The Mackie DLM8 is a compact yet exceptionally powerful 2000W powered loudspeaker that redefines what's possible in portable sound systems. Designed for maximum portability without sacrificing performance, the DLM8 integrates Mackie's proprietary TruSource technology, combining an 8-inch low-frequency driver and a 1.75-inch high-frequency compression driver into a unique common-magnet design. This results in outstanding clarity, seamless frequency response, and highly consistent dispersion. The cabinet is not only rugged and road-ready, but it's also about one-third smaller than traditional 2-way designs-making it incredibly easy to transport, store, and mount in a variety of settings including on tripods, walls, or flown in rigs.

Beyond its powerhouse sound capabilities, the DLM8 stands out with the integrated DL2 digital mixer, offering two versatile input channels complete with a bright OLED screen, 3-band EQ, and access to 16 professional effects like reverb and delay. Whether you're a solo performer, DJ, or sound technician, this speaker is tailored to adapt on the fly with features like multi-band feedback suppression, speaker mode presets, and memory recall for different venues. The DLM8 is an all-in-one solution for compact PA needs, equally at home on the stage, in a coffeehouse, or part of a larger modular sound system.

• Compact and Powerful Design: Delivers 2000W of power in a lightweight, ultra-compact form.

• TruSource Technology: Integrated 8" woofer and 1.75" compression driver for clear, consistent sound.

• Built-In DL2 Digital Mixer: Includes two input channels with EQ and effects control directly on the speaker.

• Versatile Inputs: Accepts mic, line, instrument, and RCA stereo sources.

• Built-In Effects: Offers 16 effects like reverb, delay, and chorus for enhanced sound.

• Custom Speaker Modes: Six selectable modes optimize output for various setups like PA, DJ, or monitor use.

• Feedback Elimination: Built-in multi-band feedback destroyer to reduce unwanted noise during performance.

• Smart Protect System: Automatically protects components from overload or overheating.

• Flexible Mounting Options: Pole mountable, flyable, or wall-mountable for various setups.

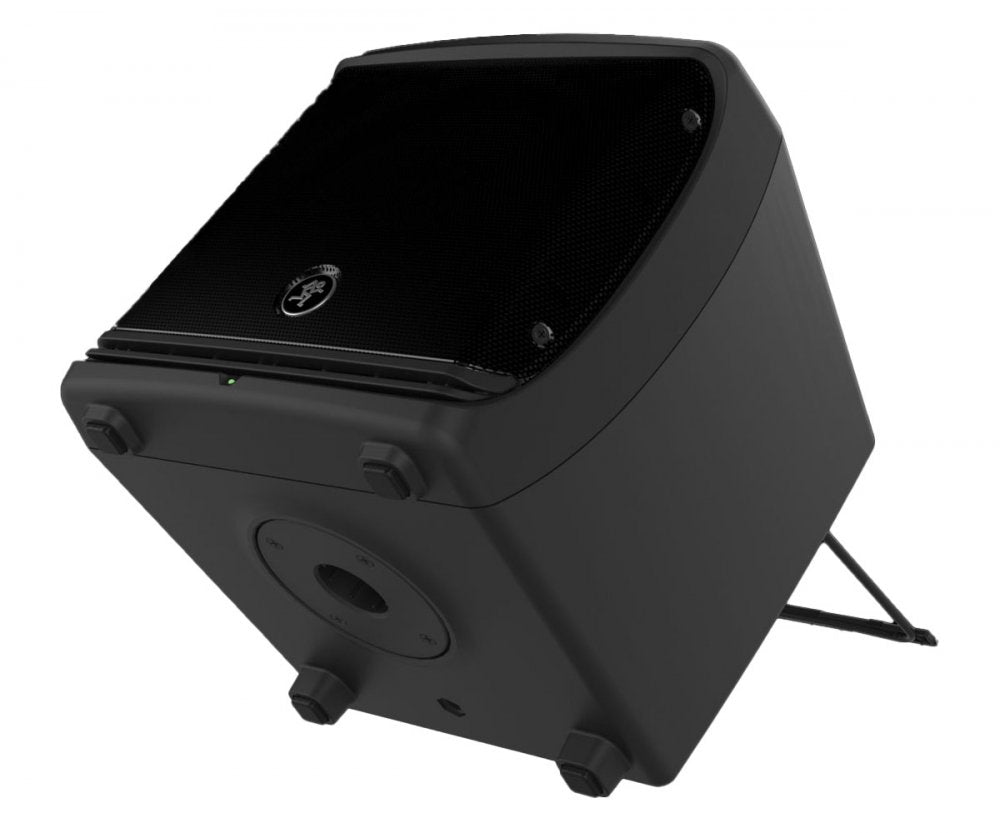

• Personal Monitor Ready: Includes a kickstand for easy stage monitoring.

• Portable and Rugged: Road-ready cabinet with carry handle and steel grille, easy to transport and store.

GENERAL SPECIFICATIONS:

• 2000W peak system power via ultra-efficient Class-D amplifier

• Compact, ultra-portable powered loudspeaker

• Roadworthy PC-ABS cabinet with professional black finish

• Rugged, powder-coated 20-gauge steel grille

• Integrated top carry handle

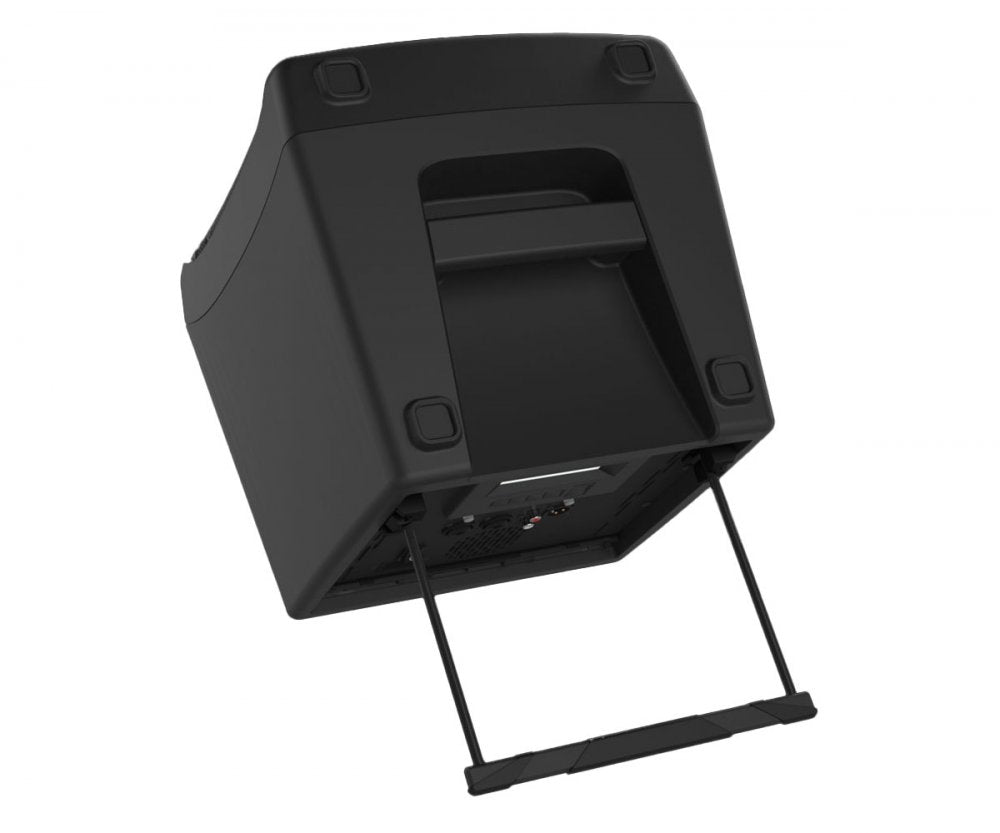

• Integrated kickstand for personal monitor use

• Dimensions: 11.7 in x 11.7 in x 11.2 in (HxWxD)

• Weight: 21.4 lbs / 9.7 kg

DRIVERS:

• 8" LF woofer

• 1.75" HF compression driver

• TruSource vertically-aligned common-magnet design

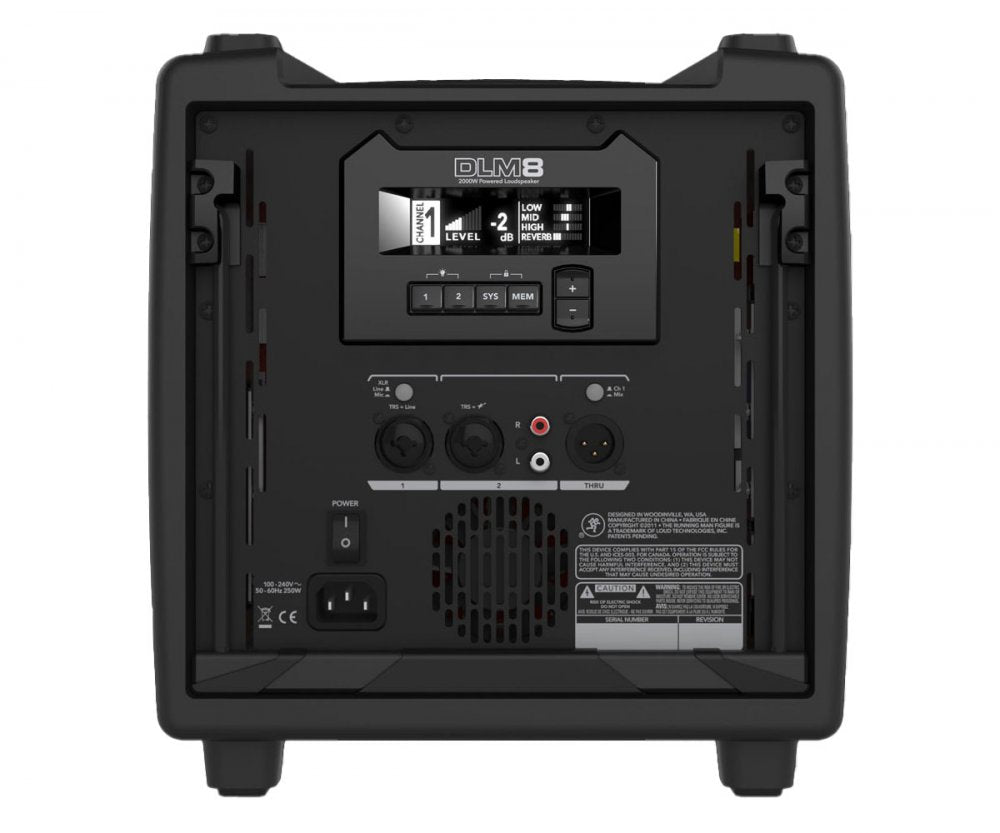

INPUTS/OUTPUTS:

• CH1: XLR/TRS combo jack (mic/line switchable)

• CH2: XLR/TRS combo jack + dual RCA inputs

• Thru output: Male XLR with Ch 1 or Mix switch

MIXER & CONTROLS:

• DL2 integrated digital mixer

• Dual-channel input mixer with OLED display

• Independent channel level, 3-band EQ, FX send

• 16 onboard FX: reverb, chorus, delay, combinations

• Front LED mode: On / Off / Limit

SYSTEM DSP & PROCESSING:

• Smart Protect DSP for amp and driver protection

• Multi-band Feedback Destroyer with 4 modes: Off, On, Hold, Clear

• 6 Speaker Modes: PA, DJ, Soloist, Monitor, EQ K, EQ Y, EQ J

• Alignment delay: 0"300 ms (up to 337.8 ft / 102.9 m)

• Memory: 3 user presets

MOUNTING OPTIONS:

• Pole-mountable (tripod or DLM12S with SPM300 speaker pole)

• Flyable via standard M10 rigging points

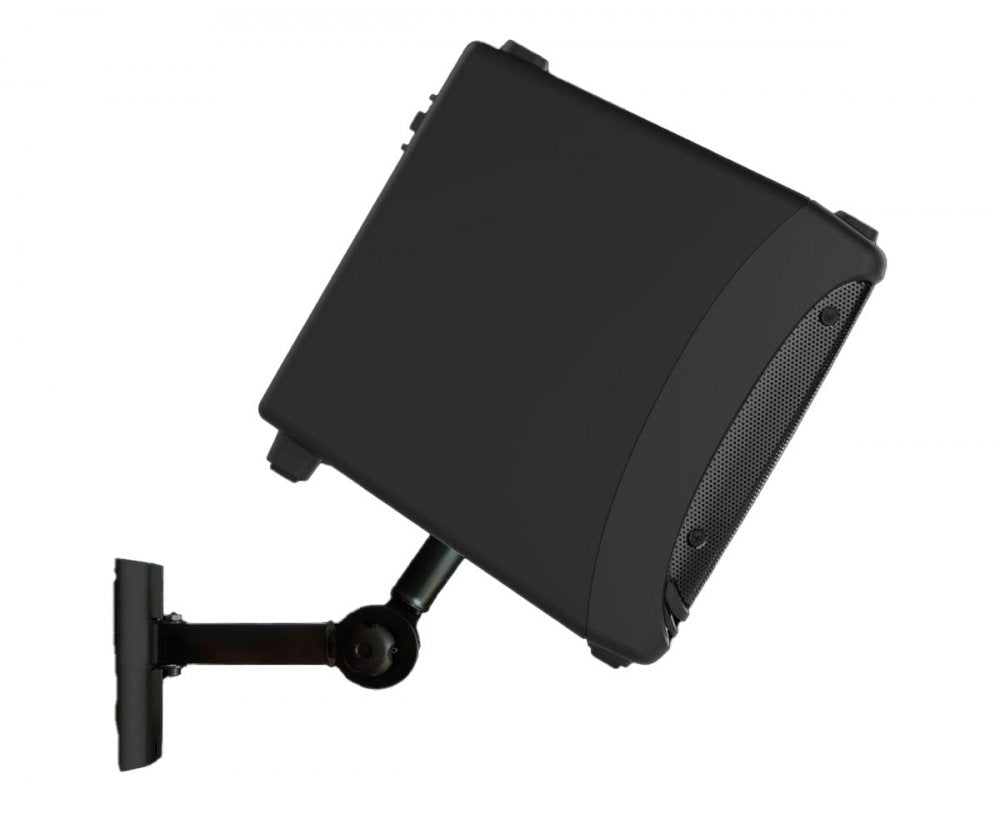

• Wall-mountable using SWM300 articulated arm

POWER:

• Universal power supply: 100"240V AC, 50/60 Hz

• Max power consumption: 250W

• Rocker-style power switch (rear panel)
