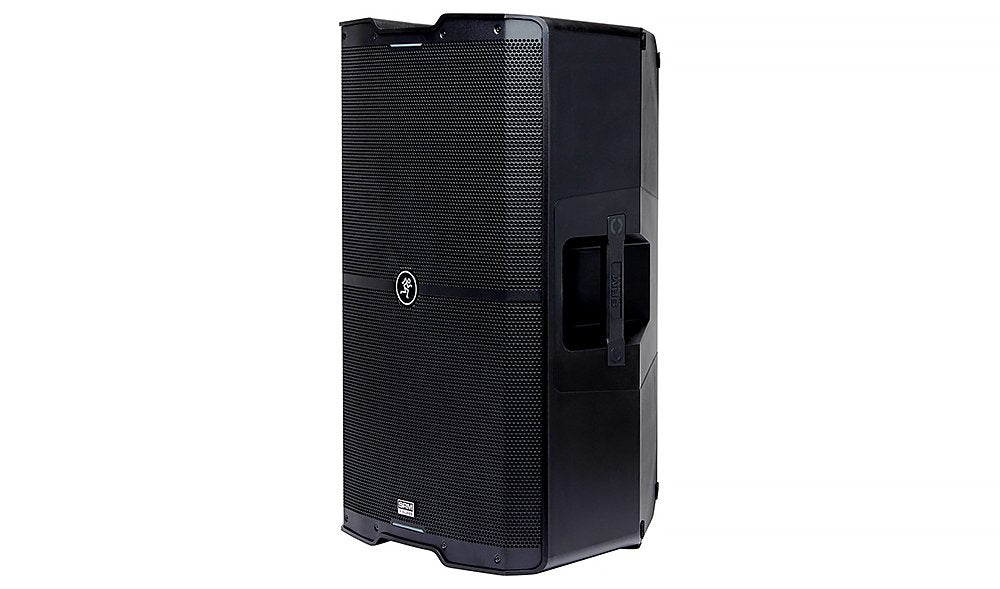

Mackie SRM215 V-Class

ADVANCED IMPULSE DSP MODULE

Mackie's filtering technology is not your typical speaker processing. The goal of our Advanced Impulse™ DSP is to remove all the anomalies that loudspeakers and horns contribute to a signal, from "honkiness" or "squelch" to "mushy" low end, effectively making the drivers "invisible" and output nothing but perfect, clean sound. By more intelligently (and more thoroughly) employing the benefits of FIR filtering, Advanced Impulse DSP eliminates undesired acoustic anomalies across the entire dispersion zone (horizontal and vertical), as well as frequency range and time domain.Mackie Advanced Impulse DSP

SYM-X HORN The custom horn within each loudspeaker was designed with the goal to bring out the very best from the HF transducer while maintaining the flattest response possible at the crossover point. Surprise surprise... we nailed it. The special design of this horn allows the compression driver to operate at near maximum efficiency. This means it gets louder and sounds better with less effort. The transition between the LF and HF is a symmetrical, flat response which is what helps make the incredibly smooth midrange possible.

TRANSPARENT SYSTEM PROTECTION Other loudspeakers feature some sort of protection and limiting to help them squeeze a dB or two out of the speaker. This is almost always at the expense of sound quality and is commonly experienced as diminished bass response and the "pumping" sound of the internal limiter having a bad day.

When operating at very high levels (ears beware), the processor-controlled system monitoring analyzes the audio signal and identifies the problem areas, then dynamically applies multi-band compression to those specific frequencies rather than lowering the overall output. This keeps your levels where you want them and maintains the sound quality you expect.

WIRELESS CONTROL & STREAMING With the SRM Connect™ app available for iOS and Android devices, you get complete control over everything and then some for up to 2 speakers simultaneously. Quickly access levels, EQ, meters, and configuration. Plus, you can save memory presets to streamline setup at your next gig.

When you link to another SRM | V-Class speaker, you get control over the entire system in the app, all in one view. No additional pairing or swapping back and forth on your device is required.

For an incredibly simple music playback system, you can stream music directly from any Bluetooth enabled device.

Industry-leading 2000W Class-D amplifier

Our most advanced amplifier platform ever, delivering incredible stability, headroom, and audio fidelity

Highest SPL in its class

Unrivaled reliability and rock-solid operation can withstand the most demanding applications

Universal power supply (100-240VAC) with Power Factor Correction for stable operation even with unstable AC power

Advanced Impulse™ DSP " Proprietary Acoustic Tuning

Crystal clear sound across the entire dispersion zone means the whole room is the sweet spot

Precision crossover and transducer time-alignment ensures balanced and accurate sound

Intelligent Bass Management™

Our proprietary LF management technology maintains tonal balance and output level when operating at very high volumes while keeping the bass tight and punchy

Custom Sym-X™ Horn

Allows for total efficiency from the HF transducer minimizing distortion and increasing output

Creates a perfectly symmetrical, flat response at the crossover point for exceptionally smooth midrange

The horn-loading frequency is set below the drivers' LF capability allowing for maximum efficiency and optimal performance at the crossover point

High-Performance Custom Transducers

Large, powerful magnets partner with robust motors, voice coils and spiders to provide the highest possible efficiency and transient accuracy

Additional cooling vents surrounding the specially designed voice coil plus directional cabinet porting ensures maximum heat dispersion and reliability

Premium polymer high-frequency driver provides the flattest possible response for incredibly smooth highs that sound natural and balanced

Transparent System Limiting and Protection

Dedicated processing module monitors and protects the amplifier in real time

Sound quality and tonal balance is maintained even under heavy limiting

Utilizing powerful multi-band compression, the amplifier can target specific frequency ranges to prevent the system from being overloaded rather than turn everything down at the expense of overall output

Input limiting keeps your source signal in check so if your sending audio that's a bit too hot, the speaker will cool it down

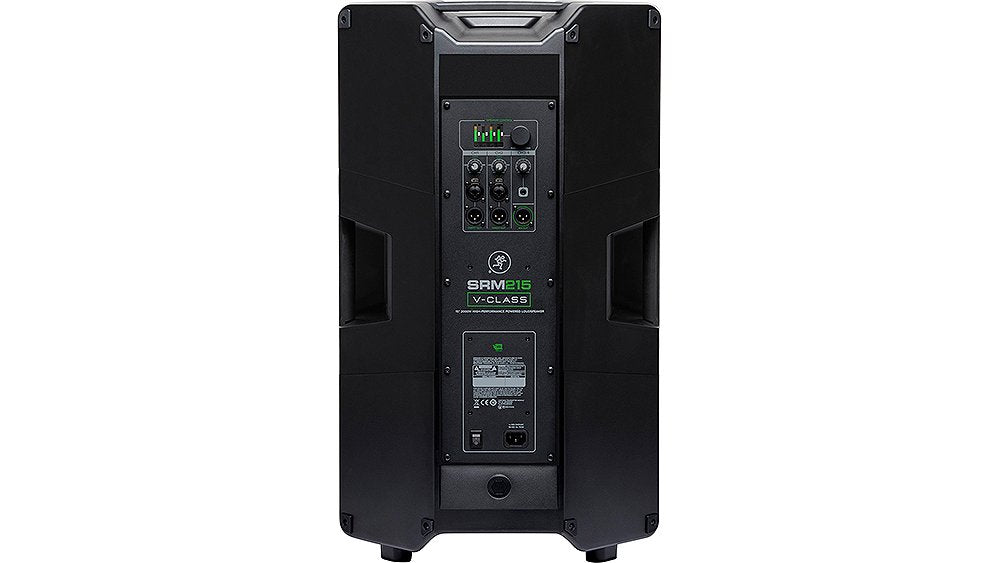

SRM Mix Control™ Built-in 4-Channel Digital Mixer with Bluetooth

Dual independent channels that support mic, line, and instrument signals

Dedicated 1/8" stereo aux channel

Stream music from any Bluetooth enabled device

Direct Outs on Ch.1/2 plus Mix Out

High-contrast full color display for easy single-knob access to mixer and processing

Adjust channel levels and EQ

Application and venue specific voicing modes

Variable crossover

Alignment delay " up to 100 feet

Save and recall up to 10 user presets

Screensaver plus dimmer and contrast control

System lock with 4-digit passcode

Change front LED function: Green, white, off, signal present, multi (cycle through colors)

Complete Wireless Control via the SRM Connect™ App

The SRM Connect™ app gives you access to all adjustments and settings including EQ, levels, and presets

Wirelessly link two SRM | V-Class speakers together for music streaming applications plus complete control over both speakers

The latest Bluetooth technology allows up to 100 meters of range between linked speakers

Stereo or dual zone linking modes allows discrete control over the inputs and outputs of the entire system across two rooms or zones

Creates an incredibly clean setup in minutes

Versatile configuration options

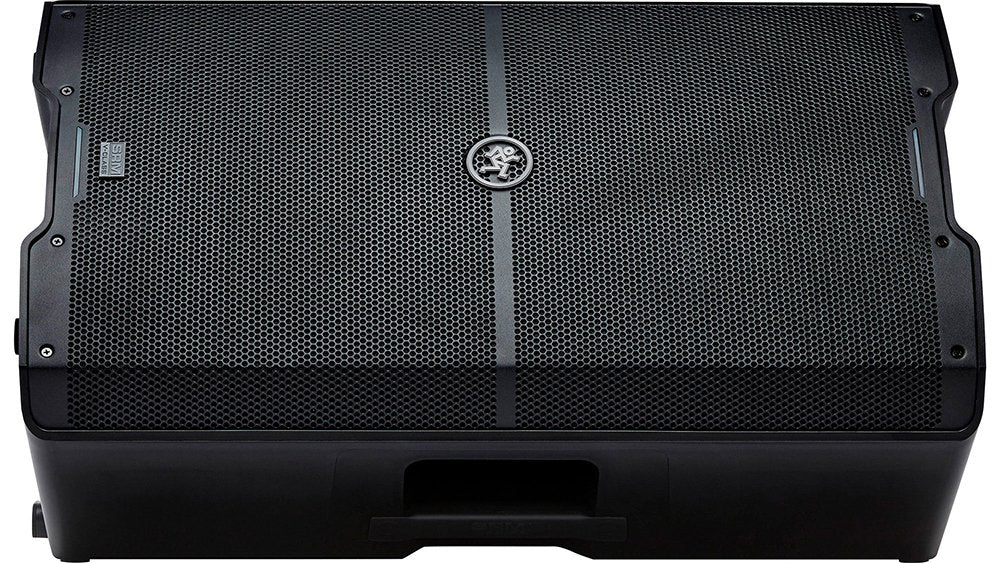

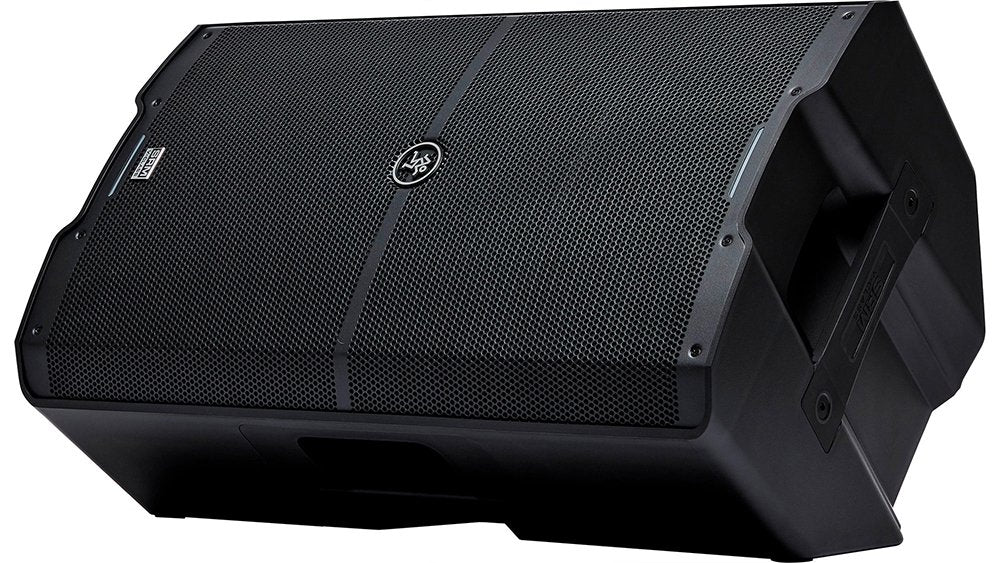

Dual-angled cabinet design allows for use as a high-performance floor monitor

Dual angle pole-mount provides optimal coverage and minimal reflections in most venues. The 7-degree downward tilt is perfect for when the speakers are on elevated stages.

M10 flypoints for installation (vertical orientation)

Power 2000W

Max SPL: 136dB

Frequency Response: 40Hz " 20kHz

Coverage: 90(H) x 60(V)

Weight: 48.9 lb / 22.2 kg

Dimensions: 28.8 x 15.4 x 17.6 in / 732 x 391 x 447 mm

App Control: Yes

Outputs: XLR Direct Out per channel + Mix Out

Aux Inputs: Stereo 1/8"

Inputs: Dual XLR/TRs
