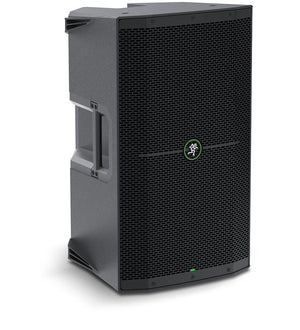

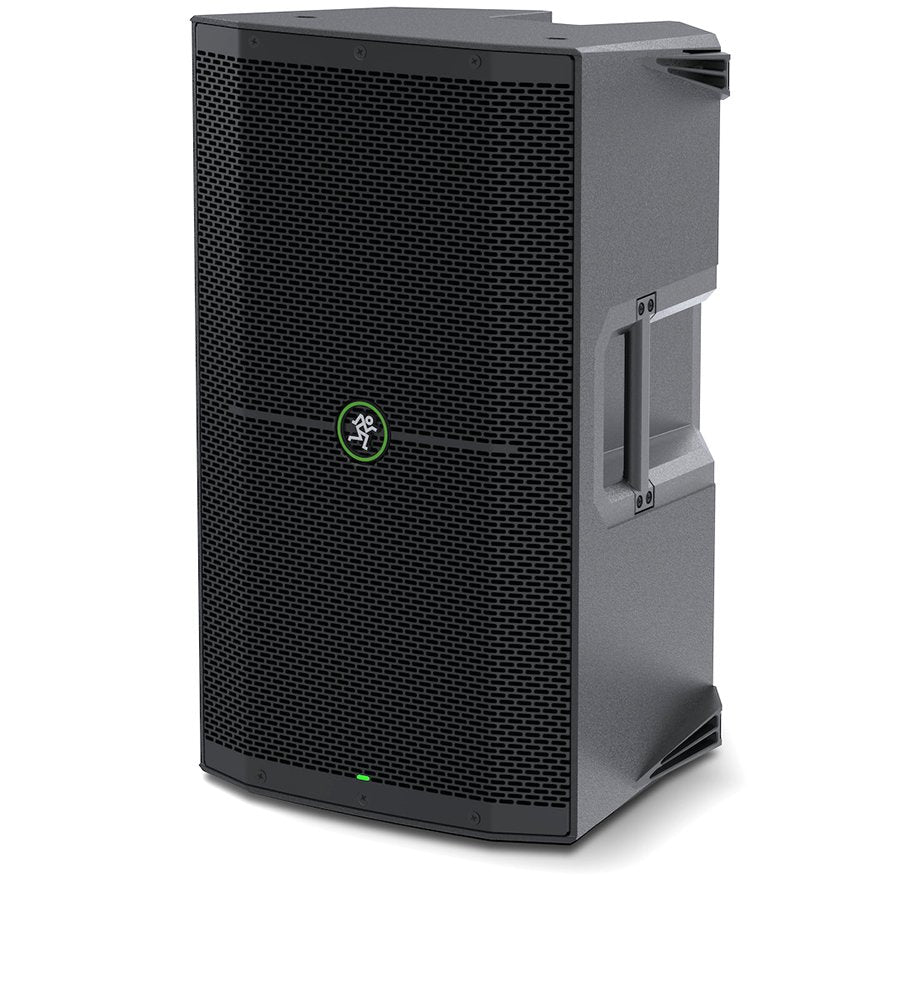

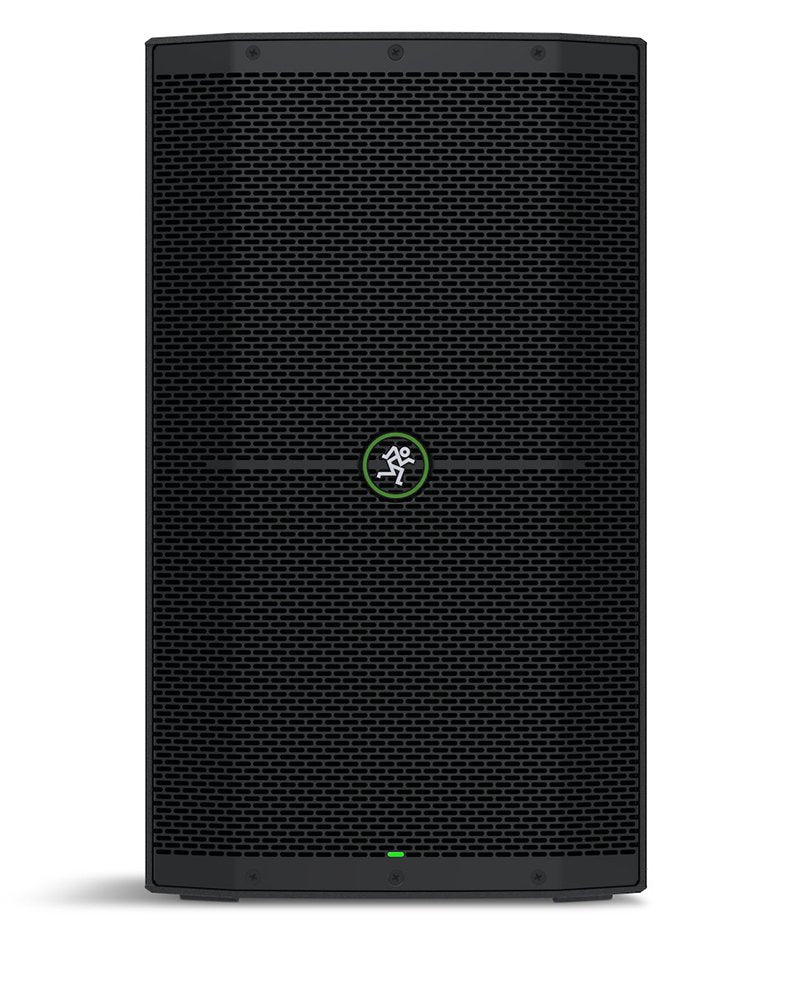

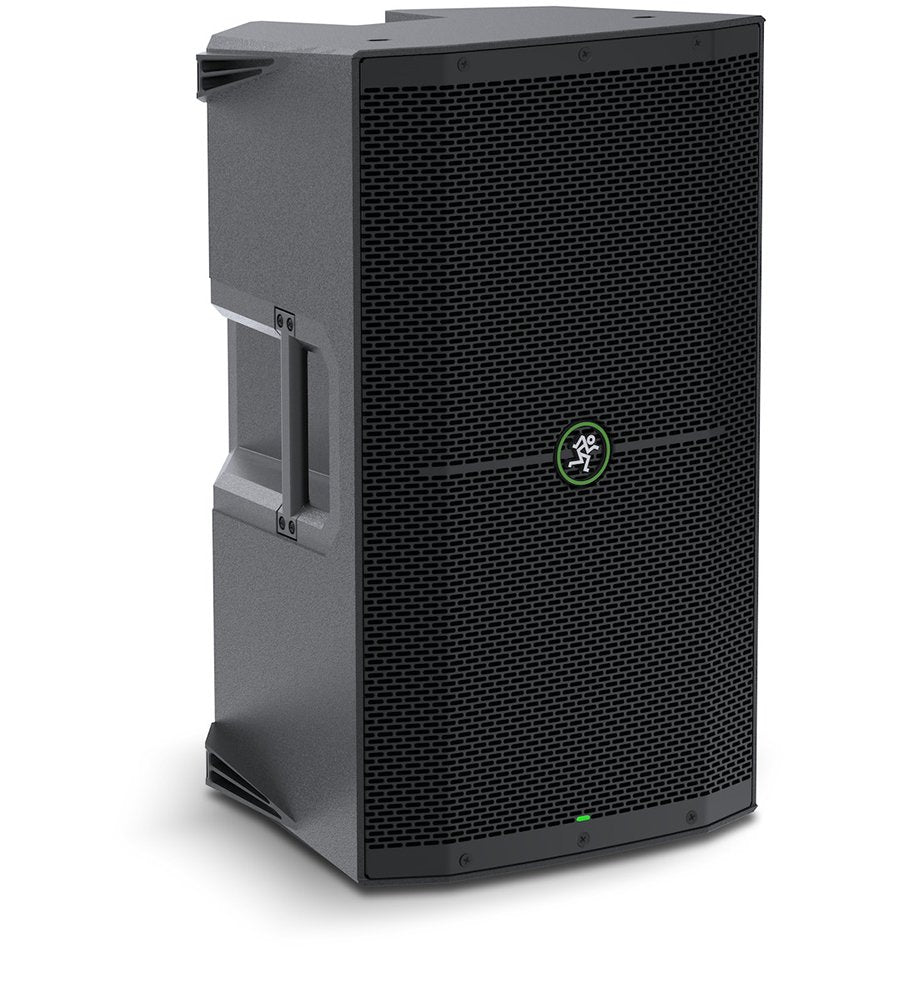

Mackie Thump212XT

The Mackie Thump212XT is a versatile and powerful 12-inch, 1400W powered loudspeaker designed for a wide range of live sound applications. It's part of the ThumpXT series, known for its robust build quality and advanced features. The Thump212XT is equipped with a high-performance 12-inch woofer and a 1-inch compression driver, delivering a frequency response of 47 Hz to 20 kHz and a maximum SPL of 128 dB. This makes it ideal for venues where clarity and power are essential, such as clubs, cafés, schools, and outdoor events.

One of the standout features of the Thump212XT is its adaptability, with four application-specific voicing modes (Music, Live, Club, and Monitor) and an Outdoor mode for optimized performance in open-air venues. It also includes Bluetooth connectivity for easy streaming and speaker linking, and you can control all its functions via the Thump Connect 2 app. Additional features like the built-in Feedback Eliminator and Music Ducking mode ensure smooth operation, making the Thump212XT not just powerful but also user-friendly and reliable for any live sound scenario.

• 1400W Class-D Amplifier

• 15" High-Performance Woofer

• 1" Compression Driver

• Four Application-Specific Voicing Modes

• Bluetooth Streaming and Control

• Versatile I/O

• Feedback Eliminator

• Music Ducking Mode

• Wireless Linking

• Built-Like-A-Tank™

AMPLIFICATION:

System Power: 1400 watts peak

Low Frequency Power: 1200 watts peak, Class D, convection cooling

High Frequency Power: 200 watts peak, Class D, convection cooling

Total Harmonic Distortion (THD): <1%

ACOUSTIC PERFORMANCE:

Frequency Response:(-10 dB): 47 Hz - 23 kHz, (-3 dB): 54 Hz - 20 kHz

Maximum SPL: 128 dB peak

Coverage: 90 (Horizontal), 60 (Vertical)

Crossover Frequency: 2.1 kHz

TRANSDUCERS:

Low Frequency Driver: 12 in / 305 mm woofer with ferrite magnet

High Frequency Driver: 1.0 in / 25 mm polymer compression driver

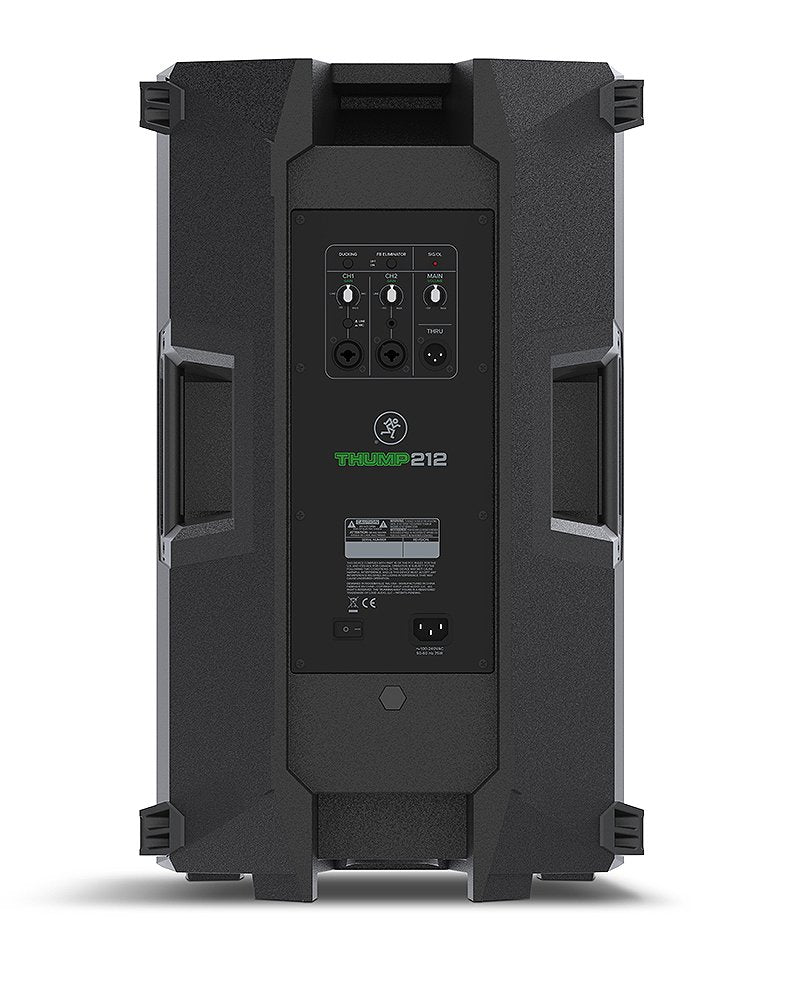

INPUT/OUTPUT:

Input: 2x Female XLR/1/4 Balanced TRS combo jacks

Input: 1x 1/8" TRS stereo input

Output: 1x Male XLR Balanced Thru Out (300 Ω impedance)

Mic/Line Input Impedance: 10 kΩ Balanced

SYSTEM PROCESSING:

Voicing Modes: 4 presets (Music, Live, Club, Monitor)

Outdoor Mode: Optimizes voicing for open-air venues

Built-in Feedback Eliminator

Music Ducking Mode: Automatically reduces the level of Ch. 2 when Ch. 1 receives signal

CONNECTIVITY AND CONTROL:

Bluetooth streaming and control via the Thump Connect 2 app

Wireless speaker linking for stereo and dual-zone configurations

Front LED On/Off switch

POWER SUPPLY:

Universal Power Supply: 100-240VAC, 50-60 Hz, 75W

AC Connector: 3-pin IEC 250 VAC, 10 A male

Power Supply Type: Switchmode

Detachable line cord

MOUNTING OPTIONS:

Pole mount via the built-in socket

M10 flypoints for permanent installation

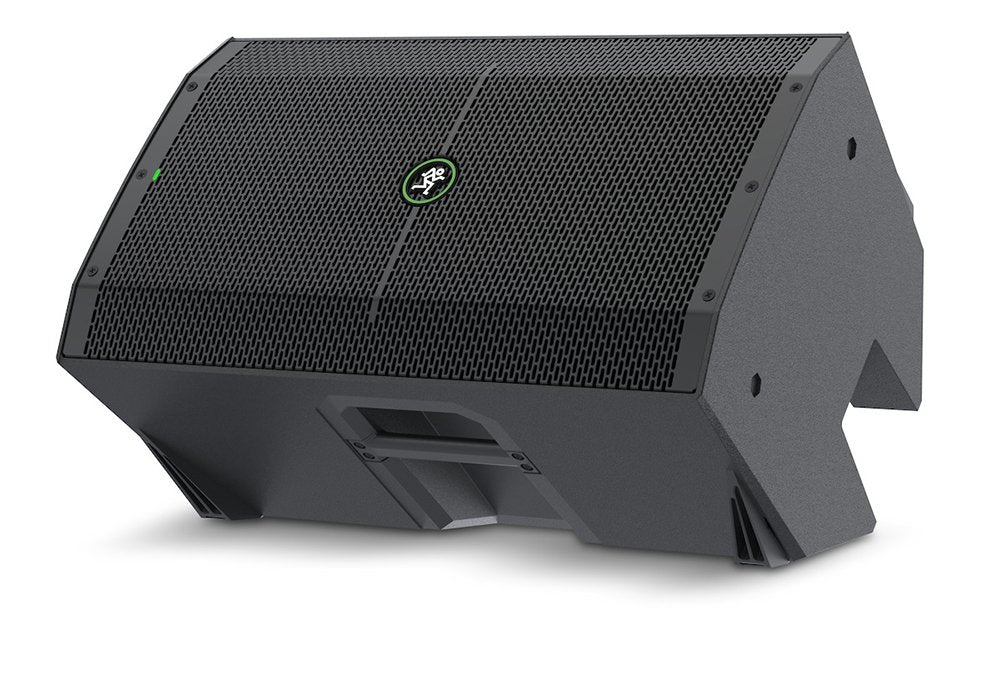

Monitor wedge for use as a floor monitor

SAFETY FEATURES:

Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection

Display LEDs for: Voicing Mode, Outdoor Mode, Music Ducking, Feedback Eliminator, Bluetooth Status, Link Status, Overload

PHYSICAL DIMENSIONS:

Height: 24.4 in / 620 mm

Width: 14.0 in / 356 mm

Depth: 14.0 in / 356 mm

Weight: 27.6 lb / 12.5 kg
