Presonus CDL-10P

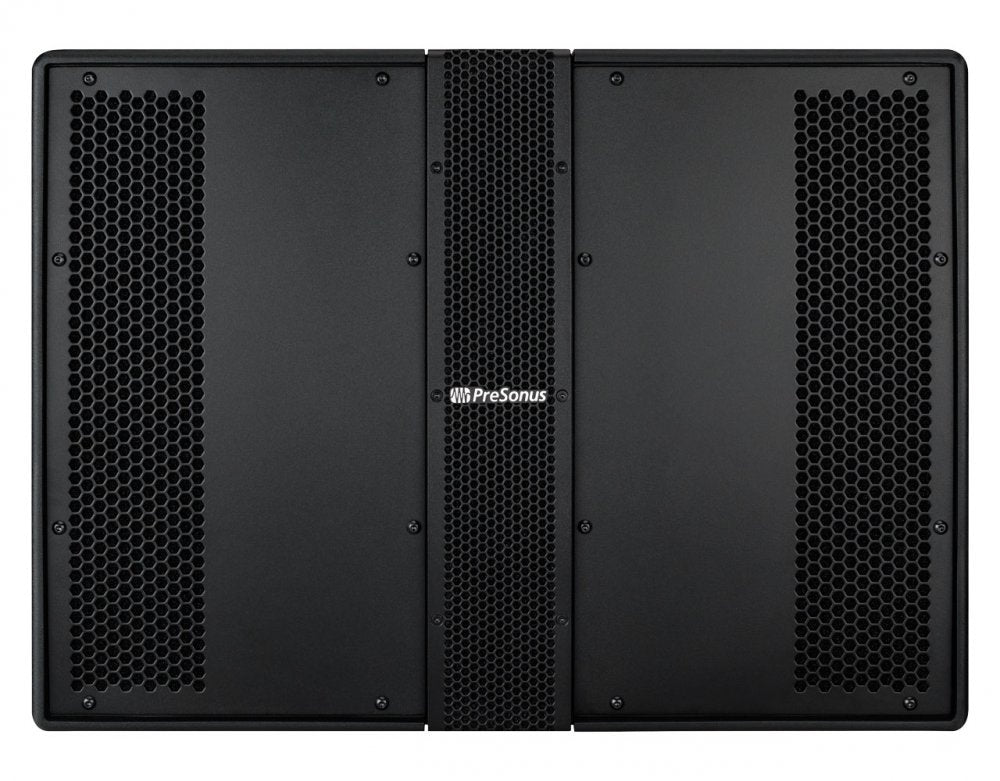

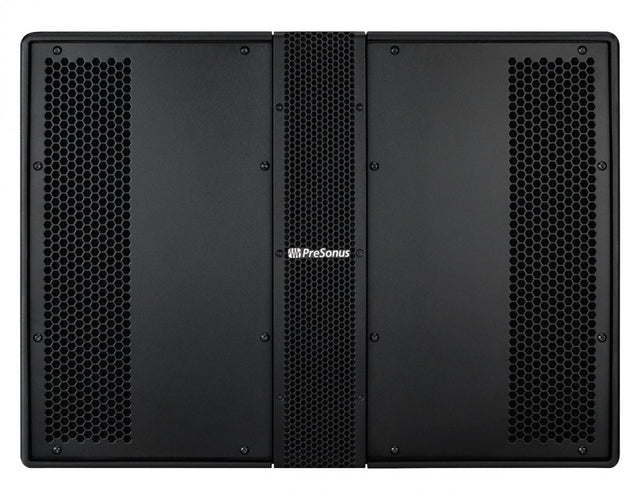

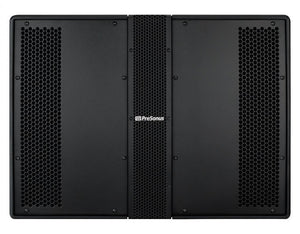

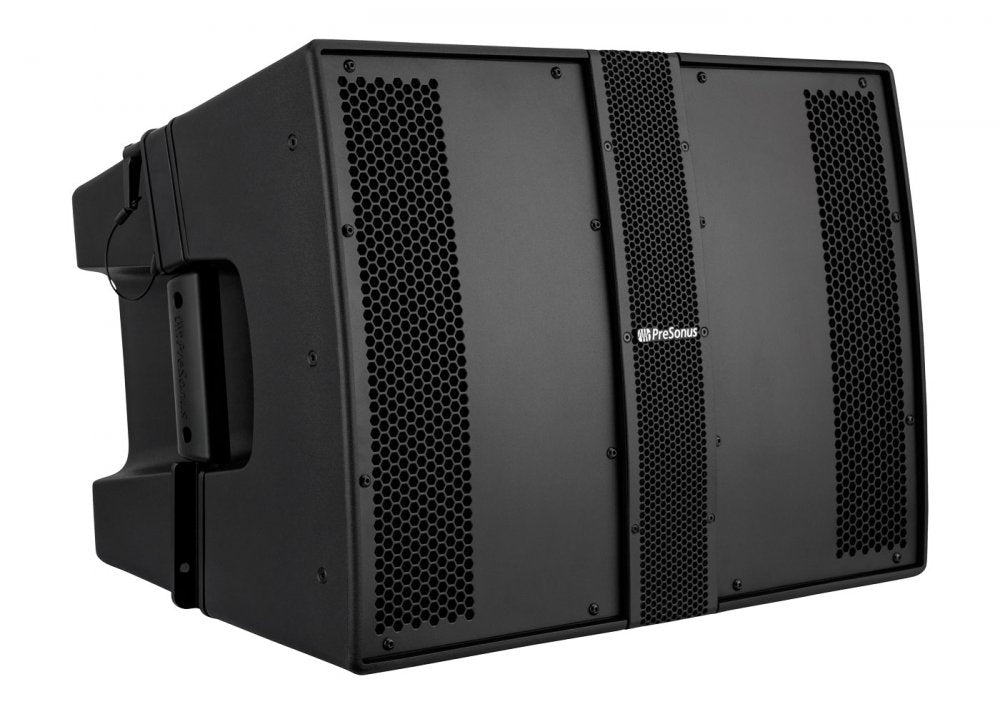

The PreSonus CDL10P Constant Directivity Loudspeaker is a portable, high-performance sound reinforcement solution designed for musicians, DJs, and audio professionals who need consistent coverage, high output, and scalable configuration options. Engineered with a hybrid point-source/line-array design, the CDL10P offers the clarity of a point source with the wide horizontal dispersion and vertical control of a line array. Its innovative constant-directivity driver configuration ensures uniform SPL and precise audio reproduction across any venue.

At its core, the CDL10P houses a 10-inch long-throw woofer paired with six 2-inch high-frequency drivers arranged in a unique circular arc. This design projects a 120 degree horizontal by 15 degree vertical coverage pattern, which can be extended up to 90 degree vertically by arraying multiple CDL10Ps. Dual 500W Class D amplifiers power both the LF and HF sections, providing up to 130 dB peak SPL, while onboard DSP with array, high-pass, and subwoofer presets makes setup straightforward. Whether used as a single unit or in a vertical array of up to six boxes, it delivers articulate speech, clear vocals, and punchy music with remarkable precision.

The CDL10P is built for mobility and ease of deployment with integrated rigging hardware, a dual-angle pole socket, and a lightweight molded enclosure with a steel grille for road-ready durability. It's ideal for mobile systems and fixed installations alike, offering flexibility, scalable performance, and refined sound quality in one cohesive design.

• Hybrid point-source and line-array design for even sound coverage

• Consistent 120 horizontal and scalable 15 degree vertical dispersion

• 10" woofer and six 2" HF drivers deliver clear, focused audio

• Built-in 500W x 500W Class D amplification with DSP presets

• Integrated rigging for arrays of up to six units

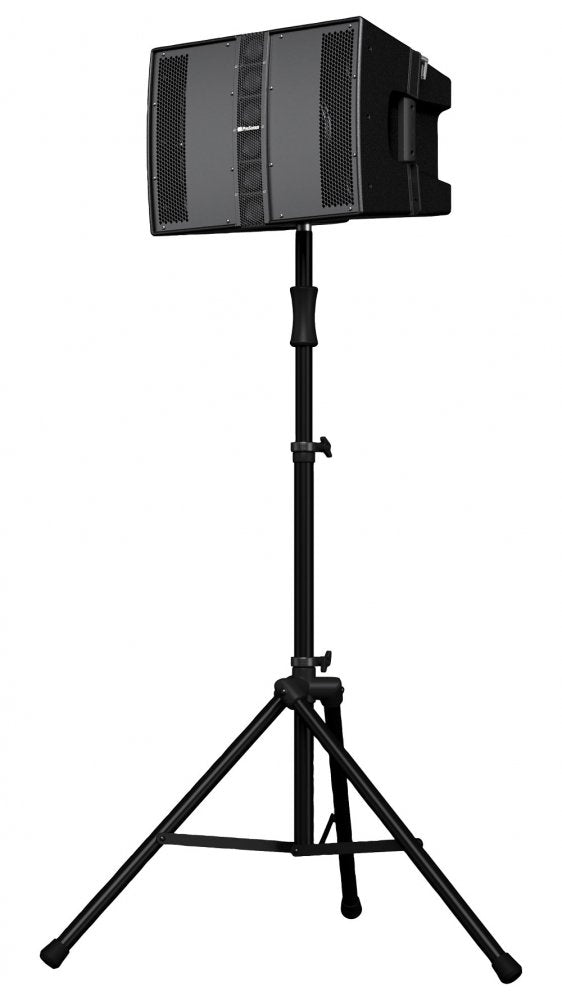

• Dual-angle pole mount for flexible setup on stands or subs

• Durable, lightweight enclosure ideal for portable use

• Ideal for touring, mobile DJs, and fixed installations

GENERAL SPECIFICATIONS:

• Product Name: CDL10P Constant Directivity Sound Reinforcement Loudspeaker

• SKU: Not provided

• Series: CDL

• Product Type: Powered 2 Way Full Range Loudspeaker

• Color: Black

• Speaker Type: Hybrid Point Source Line Array

• Power Cable: powerCON In and Out

POWER AND AMPLIFICATION:

• Amplifier Type: Class D

• Total Power Output: 2000W Peak 1000W Program 500W RMS

• LF Power: 1000W Peak 500W Program 250W RMS

• HF Power: 1000W Peak 500W Program 250W RMS

• Voltage Requirements: 100 to 240 VAC 50 to 60 Hz

• Power Consumption: 4.2A

• Cooling: Free Air Convection

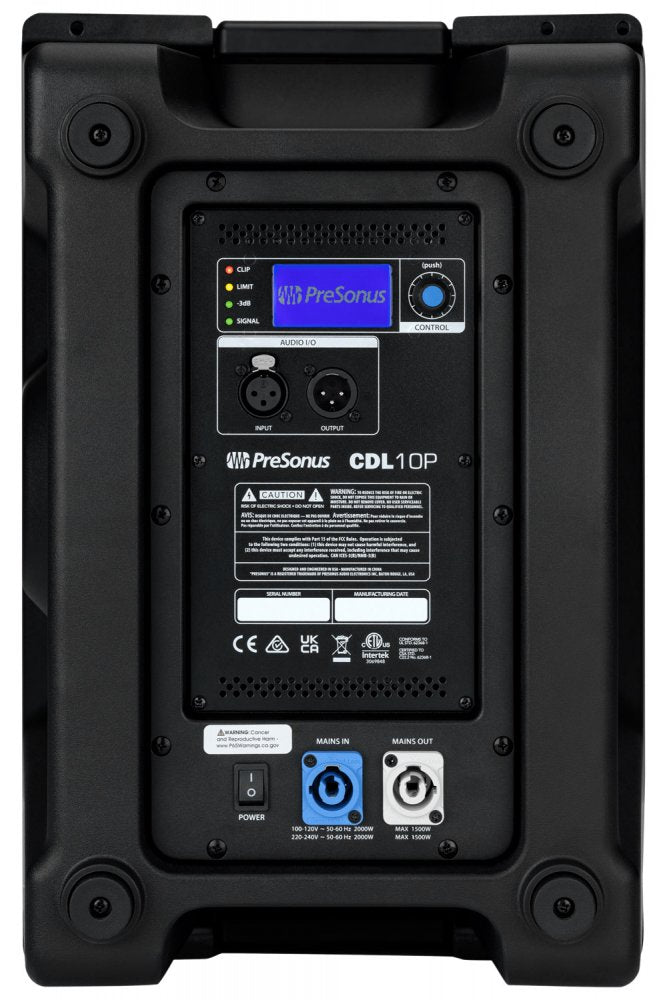

INPUT OUTPUT CONNECTIONS:

• Inputs: 1 XLR

• Line Out: 1 Direct Line Out XLR

DRIVER SPECIFICATIONS:

• LF Transducer: 10 inch with 2 inch Voice Coil

• HF Transducers: 6 x 2 inch Cone Drivers with 1 inch Voice Coils

PERFORMANCE:

• Peak SPL: 130 dB

• Coverage Pattern: 120 degrees Horizontal x 15 degrees Vertical

• Crossover Frequency: 420 Hz

DSP AND CONTROLS:

• Onboard DSP Presets: High Pass Filter On Off Array Mode 1 to 6 Boxes Sub Mode Off CDL18s ULT18 AIR18s

• Audio Controls: Preset Select for Array Count and Sub Configuration

CABINET AND CONSTRUCTION:

• Cabinet Material: Molded Plastic

• Grille Material: Powder Coated Steel

• Handles: 2 Side

• Suspension: Integrated Rigging 10 to 1 Load Rated

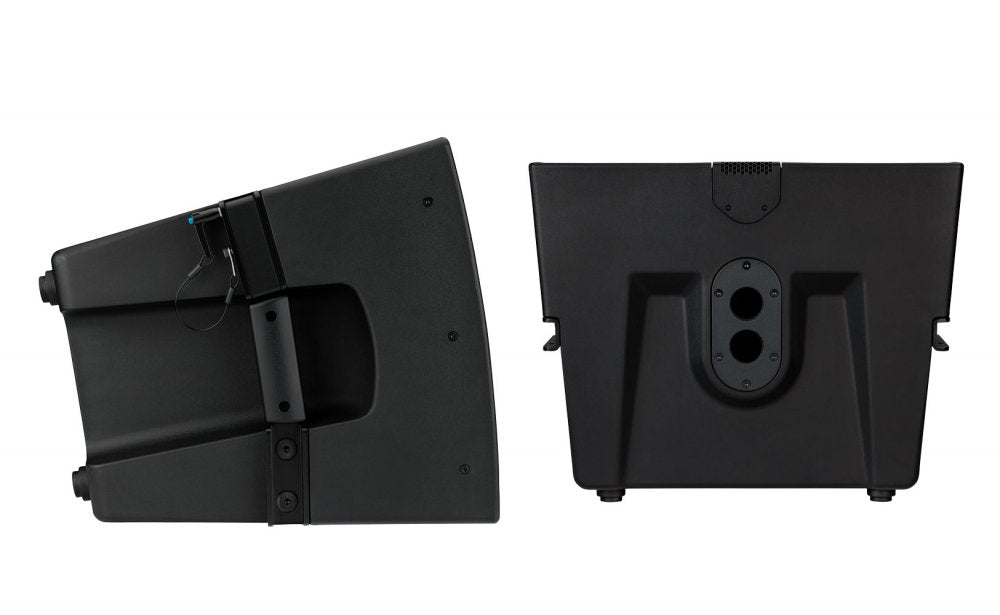

• Pole Socket: Dual Position 0 degrees and 7.5 degrees

PROTECTION FEATURES:

• Amplifier Protection: Over Current DC Over Under Voltage Over Temperature High Frequency

• Transducer Protection: Limiter

DIMENSIONS:

• Width: 19.6 inches

• Height: 14.3 inches

• Depth: 16 inches
