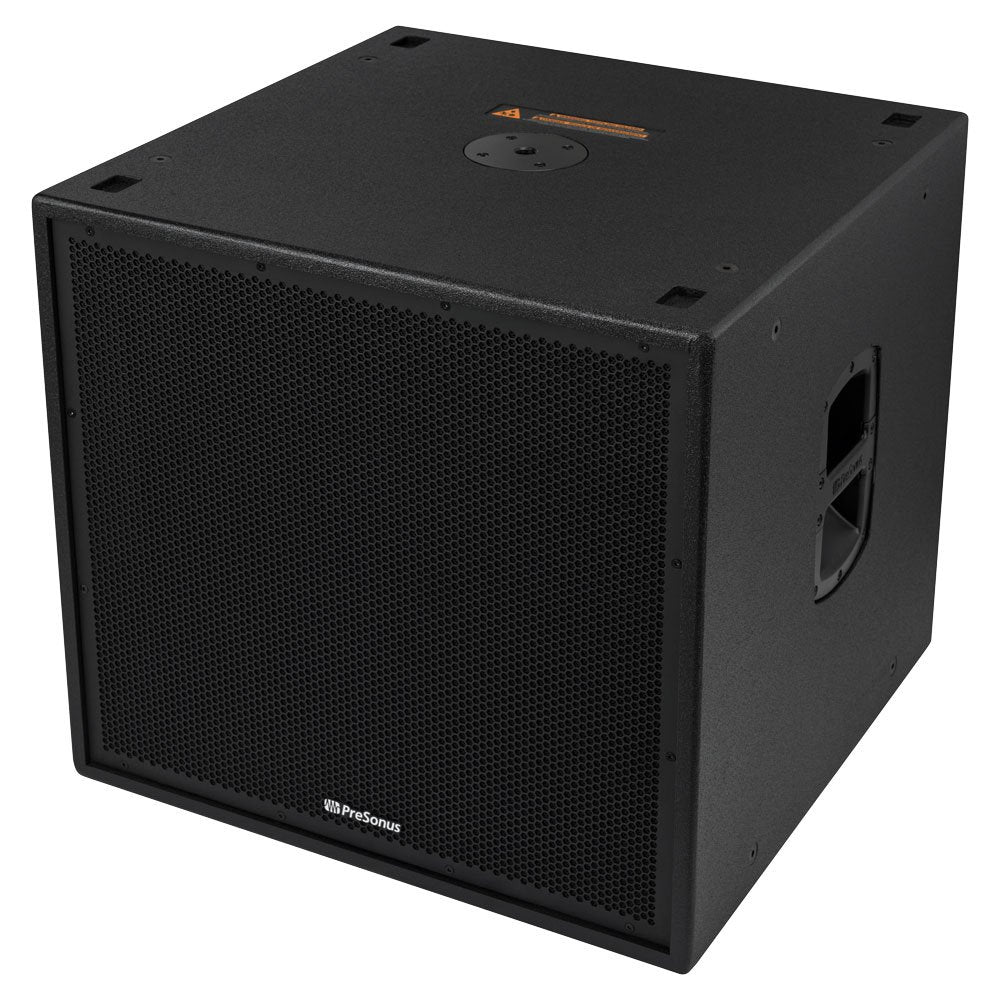

Presonus CDL-SUB18

The PreSonus CDL Sub18 is a powerful, Dante-enabled active subwoofer designed to deliver deep, controlled low-end performance for both mobile and installed sound systems. Equipped with a high-efficiency 18-inch driver and a massive 2,000W Class D amplifier, this subwoofer produces up to 135 dB of peak SPL, ensuring bass that you can both hear and feel. Its innovative ported enclosure design and robust build make it the ideal low-frequency foundation for CDL-series loudspeakers like the CDL12P and CDL10P.

Built for versatility, the CDL Sub18 features a rugged 15mm eucalyptus plywood enclosure with a Chemline Polyurea coating and integrated M10 fly points for suspended configurations. An M20 threaded pole mount supports ground-stacked setups with one or two CDL loudspeakers on top, while dual CDL Sub18s can be stacked for even more low-end power. Onboard DSP controls allow for easy configuration, including a variable low-pass filter, power output presets, and polarity inversion to fine-tune your system for any acoustic environment.

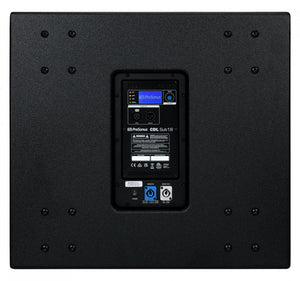

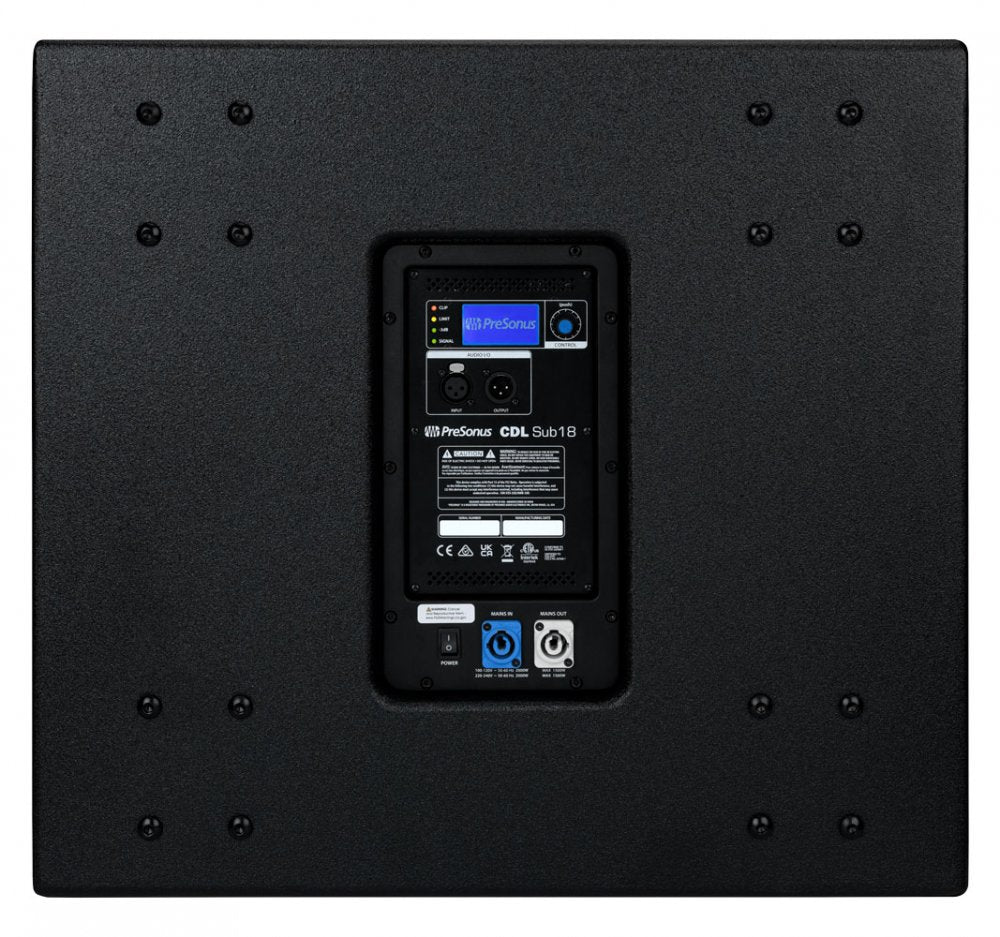

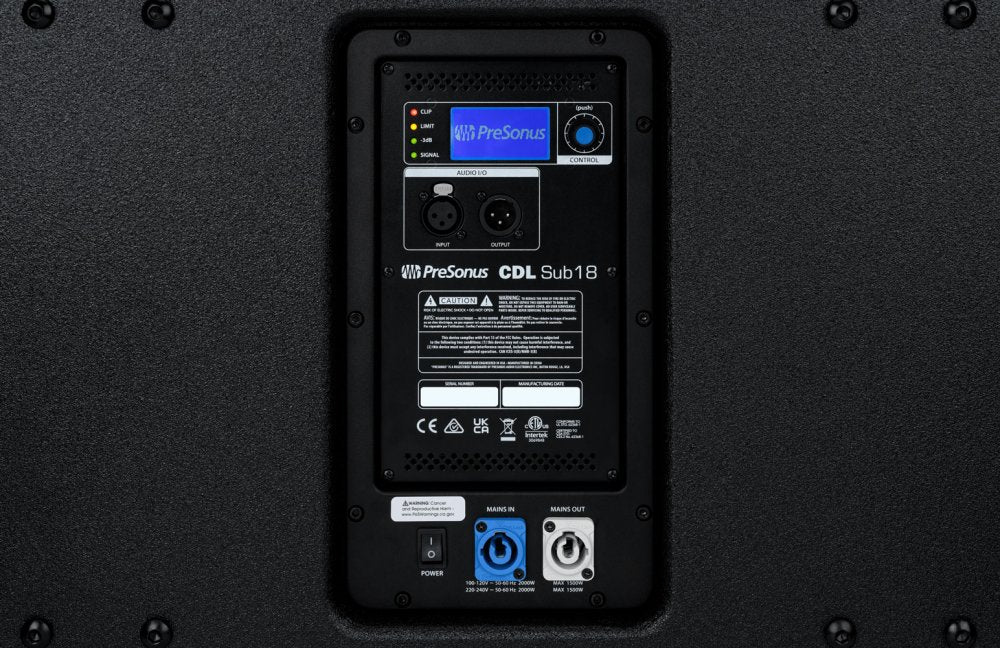

With XLR input and direct out connections, as well as locking powerCON in/out, the CDL Sub18 is built for seamless integration into professional audio rigs. Whether you're outfitting a permanent venue or hitting the road, it offers tight, articulate bass and system flexibility that make it a go-to choice for sound professionals.

• 18" woofer with 4" voice coil delivers deep, punchy bass

• 2,000W peak Class D amp ensures powerful low-end performance

• Variable low-pass filter for seamless integration with full-range speakers

• Unique port design enhances efficiency and reduces distortion

• XLR input and direct output for easy system expansion

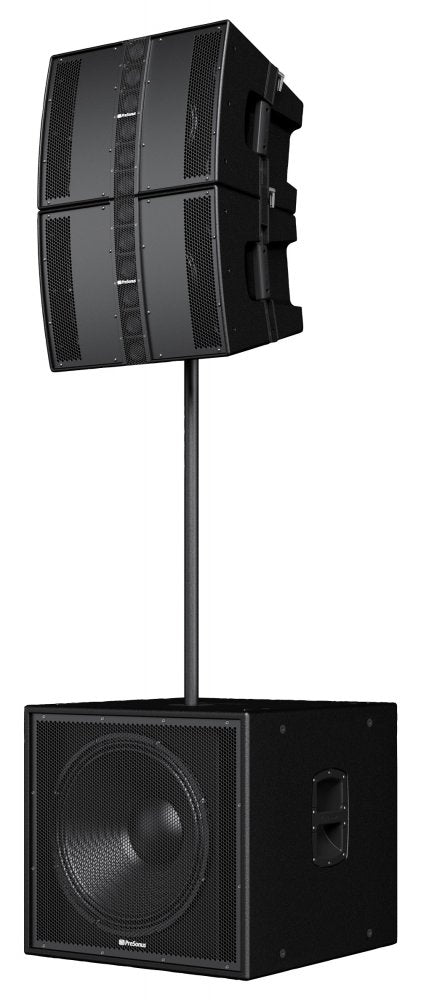

• M20 pole mount and M10 fly points for flexible setup options

• Durable, road-ready plywood enclosure with steel grille

• Ideal match for CDL12P and CDL10P loudspeakers in mobile or installed systems

GENERAL SPECIFICATIONS:

• Product Name: CDL Sub18 Active Subwoofer

• Series: CDL

• Product Type: Powered Subwoofer

• Color: Black

• Speaker Type: Active Subwoofer

• Power Cable: powerCON In and Out

• Voltage Requirements: 100 to 240 VAC 50 to 60 Hz

POWER AND AMPLIFICATION:

• Amplifier Type: Class D

• Total Power Output: 2000W Peak 1000W RMS

• LF Power: 2 x 500W Bridged

• Power Consumption: 2000 Watts

• Cooling: Free Air Convection

• Amplifier Dynamic Range: 119 dB A Weighted

INPUT OUTPUT CONNECTIONS:

• Inputs: 1 XLR

• Line Out: 1 Direct Line Out XLR

• Line Input Impedance: 10 kOhms

• Line Input Maximum Level: +22 dBu

DRIVER SPECIFICATIONS:

• LF Transducer: 18 inch with 4 inch Voice Coil

PERFORMANCE:

• Maximum Output Level: 135 dB

• Frequency Response: 36 Hz to 144 Hz

DSP AND CONTROLS:

• Onboard Controls: Variable Low Pass Filter Power Preset Select Polarity Invert

• Menu System: Integrated with LED Monitoring

CABINET AND CONSTRUCTION:

• Cabinet Material: 15 mm Eucalyptus Plywood with Chemline Polyurea Finish

• Grille Material: Tour Grade Steel

• Handles: 2 Side

• Pole Socket: M20 Threaded Mount

• Suspension: Integrated M10 Fly Points

DIMENSIONS:

• Width: 24.5 inches

• Height: 22.75 inches

• Depth: 25 inches
