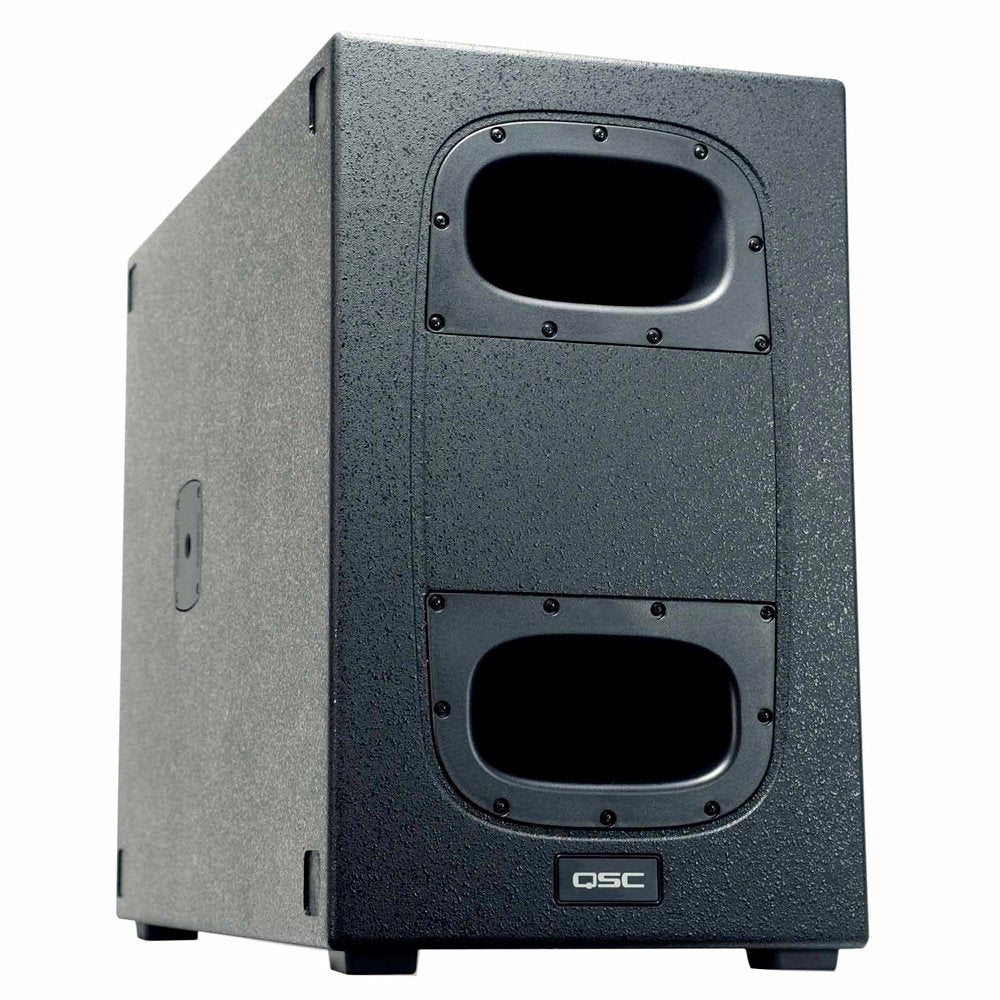

QSC KS212C

The KS212C subwoofer represents the world's first-in-class single-box active cardioid subwoofer solution for highly portable entertainment and installation applications.

A breakthrough in innovation and design, the 3,600 Watt KS212C subwoofer uniquely provides all the benefits of cardioid deployment in a single, compact enclosure. "Keeping bass in its place" for mobile entertainers, AV production and rental professionals, as well as modestly-sized performance venues, the KS212C subwoofer is unparalleled in its ability to manage low frequencies on the stage, or any application where undesirable low frequency energy needs to be minimized.

• 3600 Watt Class D power module

• Dual 12-inch long excursion drivers; Dual 6th order band-pass design

• 15 dB SPL attenuation front-to-rear

• Two M20 threaded sockets (one on top, one on side) accept 35 mm speaker pole

• Four low-noise, heavy-duty casters

• HxWxD = 24.5-inch x 15.5-inch x 33.5-inch (622 x 394 x 851 mm)

• Net Weight: 40.1 kg (88.5 lbs)

Configuration: Dual 6th-order bandpass cardioid subwoofer

LF Transducer: 2 - 305 mm (12 in), cone

Frequency Response (-6 dB): 44 Hz - 104 Hz

Frequency Range (-10 dB): 39 Hz - 118 Hz

Nominal Coverage Angle: 180˚ Cardioid (15dB rear rejection @ 70Hz)

Maximum Rated SPL: 132dB @1m, peak

Amplifier: Class D, 2 - 1800W (peak)

Cooling: Low-noise, variable speed fan

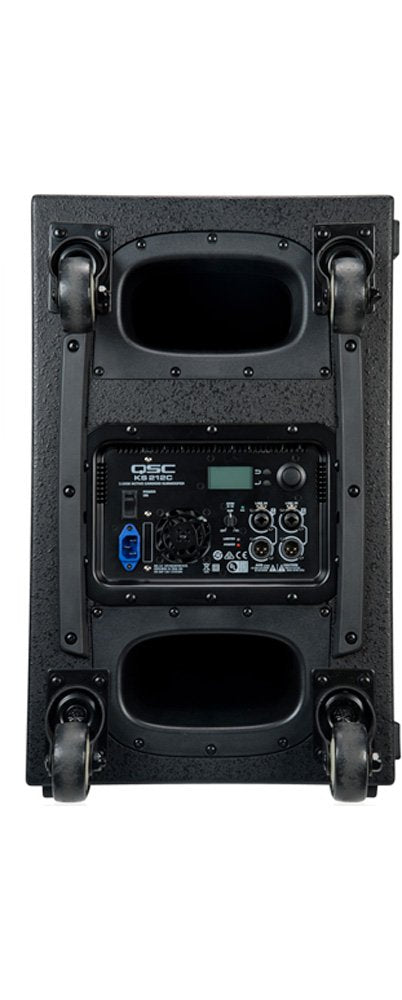

Controls: Power, Gain, Rotary encoder, 2 - selection buttons

Indicators: 2 - Power LED (front and rear), Input Signal LED, Limiter active LED

Connectors: 2 - locking XLR/F ¼⁻ᶦⁿᶜʰ combo, 2 - XLR/M (Loop-thru Output), 1 - locking IEC power connector

AC Power Input: Universal power supply 100 " 240 VAC, 50 " 60 Hz

AC Power Consumption: 1/8th power

ENCLOSURE DETAILS:

Enclosure: 15mm birch plywood

Color: Black (RAL 9011)

Grille: Internal woofer cover

Speaker Dimensions (H-W-D): 622 - 394 - 851 mm, 24.5 - 15.5 - 33.5 in

Carton Dimensions (H-W-D) 970 - 500- 670 mm, 38.2 - 19.7 - 26.4 in

Net Weight: 40.1 kg / 88.5 lb

Shipping Weight: 50 kg / 110.3 lb

Regulatory: CE, WEEE, UL, CHina RoHS, RoHS II, FCC Class B

Optional Accessories: KS212C CVR Transport Cover, KS-LOC Lock-Out Cover, SP-26 and SP-36 Loudspeaker Poles, SP-16X Extension Pole
