Tascam MX-8A

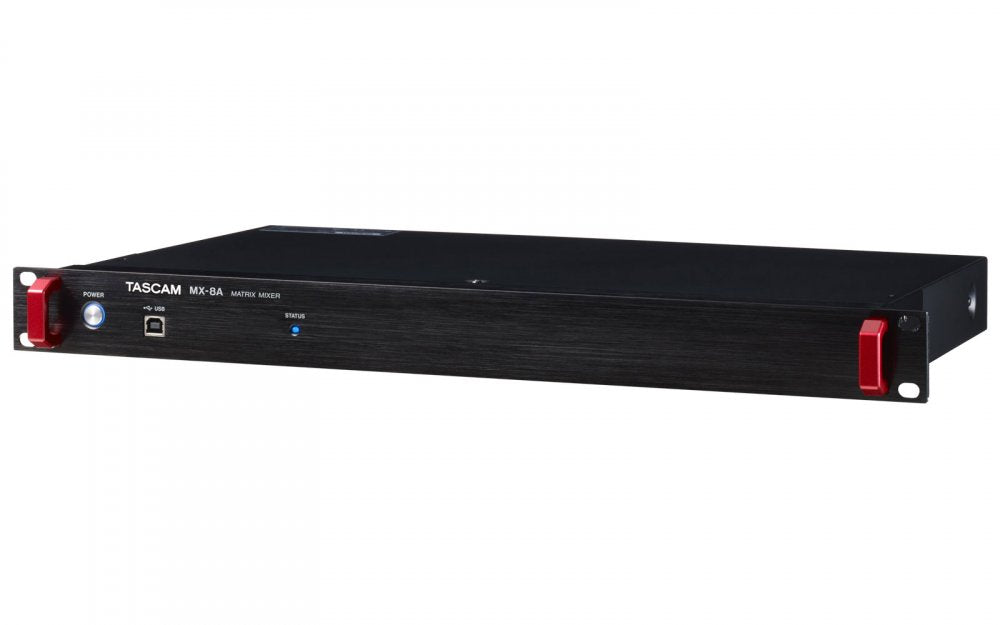

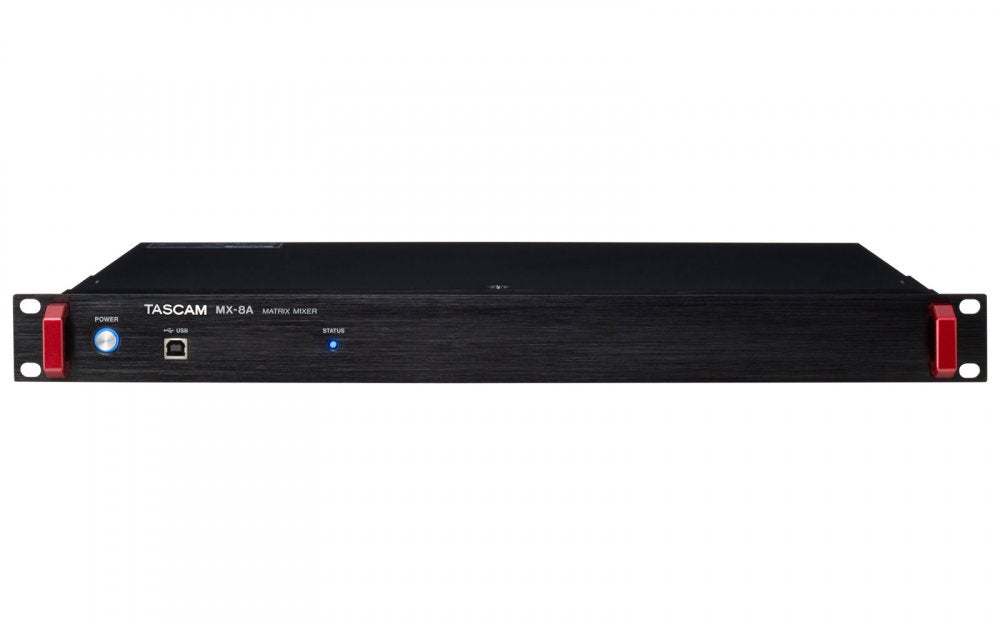

The TASCAM MX-8A is a versatile 8-input, 8-output matrix mixer designed for professional audio installations in environments like restaurants, conference rooms, and retail spaces. With built-in DSP processing and a compact 1U rackmount design, it offers precise control over signal routing, mixing, and optimization across multiple zones. The MX-8A supports both mic and line level inputs with phantom power, and includes a USB audio interface for seamless integration with computers and mobile devices.

Tailored for flexible system setups, the MX-8A comes equipped with advanced features such as scene presets, ducking, ambient noise compensation, and full control via dedicated software for both integrators and end-users. With network and serial connectivity options, plus compatibility with wall-mounted controllers, this mixer delivers reliable, high-quality performance for any installed audio system.

• 8 Mic/Line Inputs + 8 Line Outputs: Supports a variety of audio sources with phantom power and Euroblock connectors.

• Built-in DSP Processing: Offers EQ, compression, ducking, auto level control, delay, limiter, and more for input/output optimization.

• 10x10 Matrix Mixer: Route and mix any input to any output zone with full flexibility, including USB audio paths.

• Custom Scene Presets: Save and recall up to 50 configurations with tailored DSP and routing settings.

• Remote Control Ready: Compatible with MX CONNECT (integrators) and EZ CONNECT (end users) for complete system management.

• USB Audio Interface: Functions as a 2-in/2-out USB audio interface for playback or recording on Windows, macOS, iOS, or Android.

• Clear Audio in Real-Time: Features ducking and ambient noise compensation for automatic volume clarity in dynamic environments.

• Wall Controller Compatibility: Connect up to 8 RC-W100 wall controllers for hands-on control of volume and source selection.

• Versatile External Control Options: Supports Ethernet, RS-232C, and RS-485 for integration with control systems.

• 1U Rackmount Design: Fits easily into standard AV installations and includes all mounting accessories.

GENERAL SPECIFICATIONS:

• Matrix mixer with integrated DSP

• 8 mic line inputs with phantom power support

• 8 line outputs

• USB 2.0 audio interface with 2 in 2 out channels

• Compatible with Windows macOS Android iOS

• 1U rack mountable design

• Power consumption 21W

• Dimensions 483 x 45 x 304.1 mm

• Weight 3.0 kg

AUDIO INPUTS:

• Connectors Euroblock Balanced 3.81 mm pitch

• Mic input max level plus 26 dBu

• Line input max level plus 24 dBu

• Minimum input level minus 77.5 dBu

• Input impedance 2.2 kiloohms or higher

AUDIO OUTPUTS:

• Connectors Euroblock Balanced 3.81 mm pitch

• Nominal output level plus 4 dBu or plus 6 dBu depending on reference level

• Max output level selectable from plus 15 dBu to plus 24 dBu

• Output impedance 200 ohms or lower

DSP PROCESSING INPUT MODULES:

• Mic line switching

• Phantom power on off

• Pad mic input

• Mic gain

• Compressor

• 4 band EQ

• 2 band parametric EQ

• Low shelving EQ or high pass filter

• High shelving EQ

• Auto level control

• Mute

• Fader

• Fader and mute grouping

DSP PROCESSING MATRIX MIXER:

• 10 by 10 matrix

• Mute

• Fader

• Fader and mute grouping

• Ducking

• Ambient noise compensator

DSP PROCESSING OUTPUT MODULES:

• 10 band EQ

• 8 band parametric EQ

• Low shelving EQ or high pass filter

• High shelving EQ or low pass filter

• Delay

• Limiter

• Phase switching

• Test tone

• Mute

• Fader

• Fader and mute grouping

AUDIO PERFORMANCE:

• EIN minus 126 dBu or less with 150 ohm input

• Frequency response 20 Hz to 20 kHz plus or minus 0.5 dB

• THD plus N 0.005 percent or less

• Signal to noise ratio 106 dB or higher

• Crosstalk 106 dB or higher

• Dynamic range 106 dB or higher

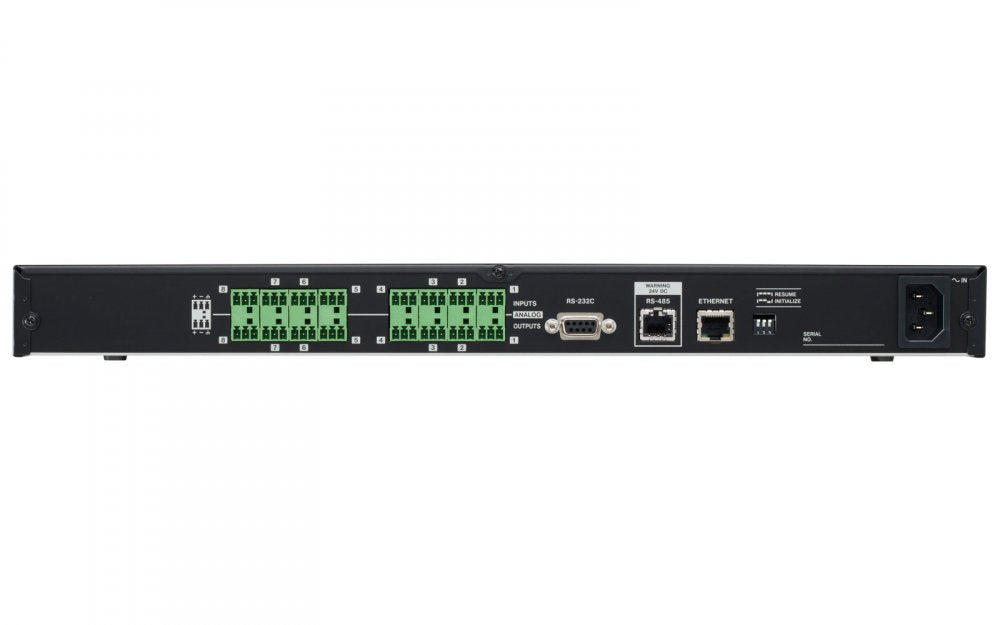

CONNECTIVITY AND CONTROL:

• RS 232C D sub 9 pin female

• RS 485 RJ 45

• Ethernet RJ 45 TCP IP 100BASE TX

• Supports up to 8 daisy chained RC W100 wall controllers

SOFTWARE COMPATIBILITY:

• TASCAM MX CONNECT for integrators

• TASCAM EZ CONNECT for end users

SUPPORTED AUDIO DRIVERS:

• Windows UAC 2.0 WDM

• macOS iOS UAC 2.0

• Android UAC 2.0

INCLUDED ITEMS:

• Main unit

• Power cord

• 16 Euroblock plugs

• Cable band kit

• Rackmount screw kit

• Owners manual with warranty
