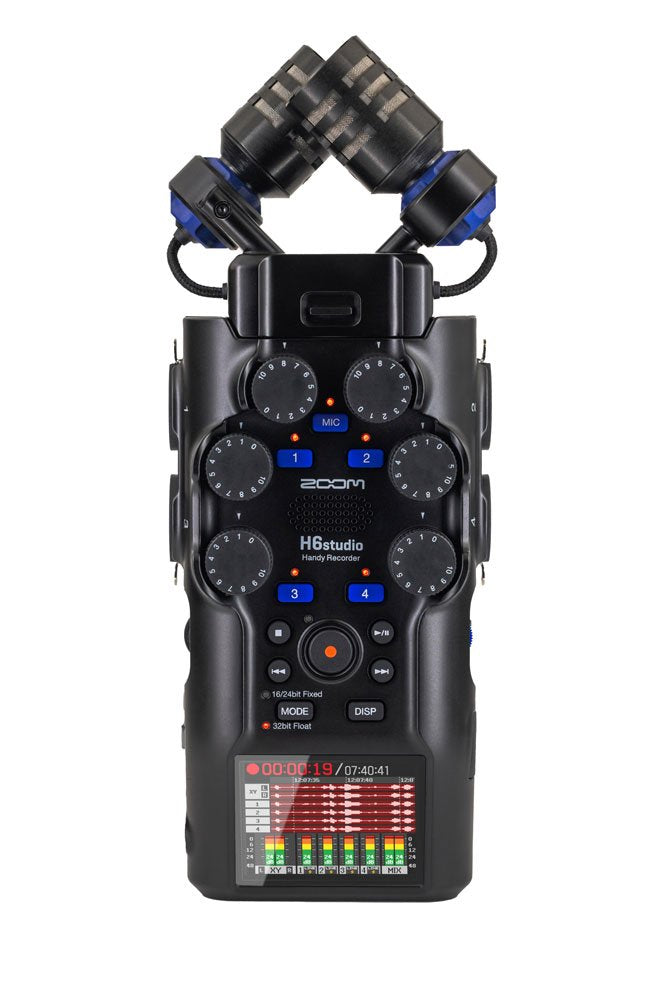

Zoom H6studio

The Zoom H6studio brings studio-grade audio recording to any environment, whether you're capturing podcasts, field recordings, music sessions, or live performances. Engineered with F-Series preamps and 32-bit float recording, it ensures every detail is preserved with clarity and depth"without the risk of clipping. Its large-diaphragm XY microphones offer an expansive 123 dB dynamic range and can handle sound pressure levels up to 140 dB, making it a reliable companion for both delicate and high-impact audio sources. With dedicated gain knobs and a format switch, you can seamlessly adapt your workflow without compromising sound quality.

Designed for serious creators, the H6studio supports up to eight simultaneous tracks and comes equipped with advanced features like real-time waveform monitoring, intelligent limiters, and RF shielding for clean, interference-free recording. Its next-gen capsule system expands your mic options, while USB interface capabilities and mobile device support offer flexibility for live streaming and backup recording. Whether you're in the studio or on location, the H6studio delivers professional sound with intuitive controls, premium build quality, and accessibility features that make it inclusive for all users.

• Studio-Quality Audio Anywhere: 32-bit float recording, large-diaphragm XY mics, and F-Series preamps for unmatched clarity

• Wide Dynamic Range: Handles up to 140 dB SPL with 132 dB of dynamic range

• Flexible Recording Formats: Switch easily between 32-bit float and 16/24-bit formats

• Multi-Track Capability: Capture up to 8 tracks at once (6 inputs + 2 stereo mixes)

• Minimized Interference: RF shielding and shock-mounted mics reduce noise

• Smart Limiters: "Look-ahead" technology prevents distortion before it happens

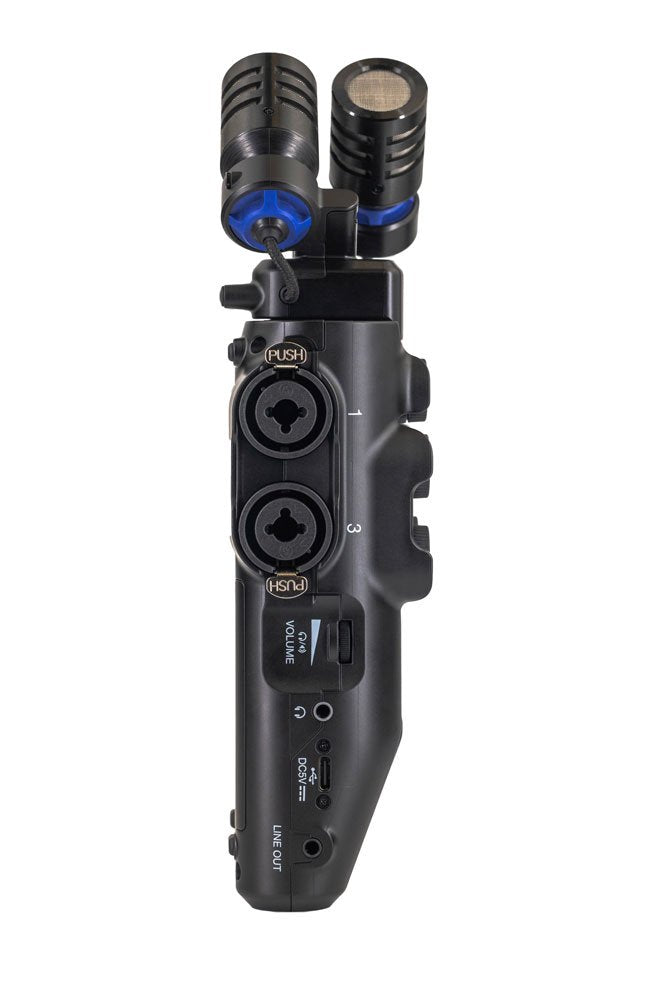

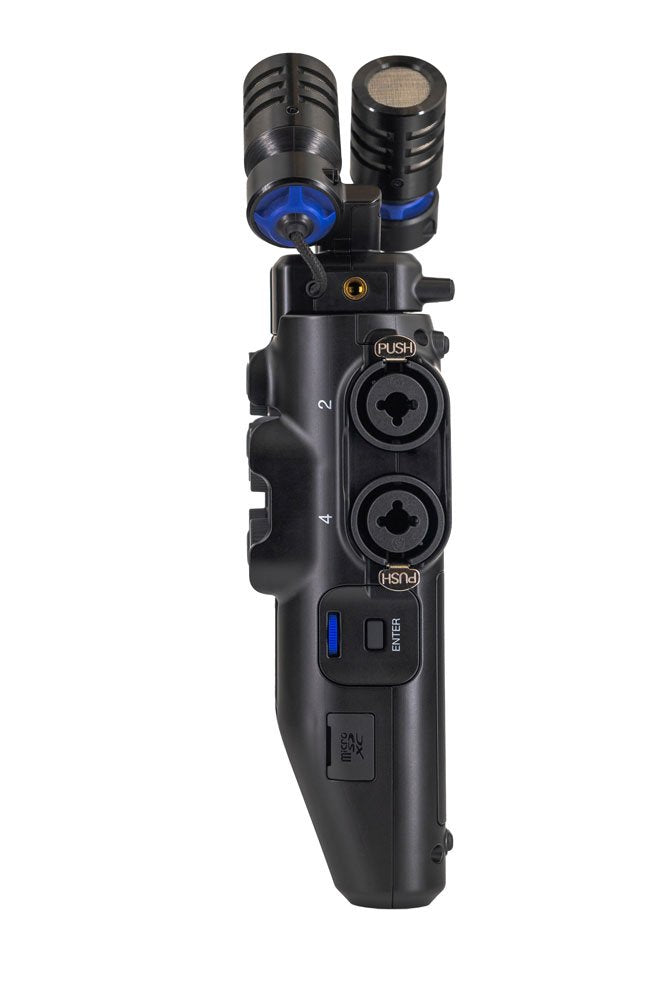

• Robust Connectivity: Four XLR/TRS inputs with phantom power + stereo mini jack

• Capsule System 3.0: Expandable mic options including wireless support (WLM-1)

• Visual Feedback: Switchable display for input levels and waveform monitoring

• Versatile Outputs: Headphone out, line out for cameras, and onboard speaker

• USB Audio Interface: 6-in/2-out support for Mac, Windows, iOS, and Android

• Timecode Sync: Precise sync via optional TCA-1 or wireless with UltraSync BLUE

• Remote Control: iOS app for managing and syncing multiple recorders

• Pro Tools Built-In: Low-cut filter, mono mode, WAV export, and playback tools

• Long Battery Life: Up to 15 hours with AA batteries or USB power

• Accessible Design: Audible menu navigation and multiple language options

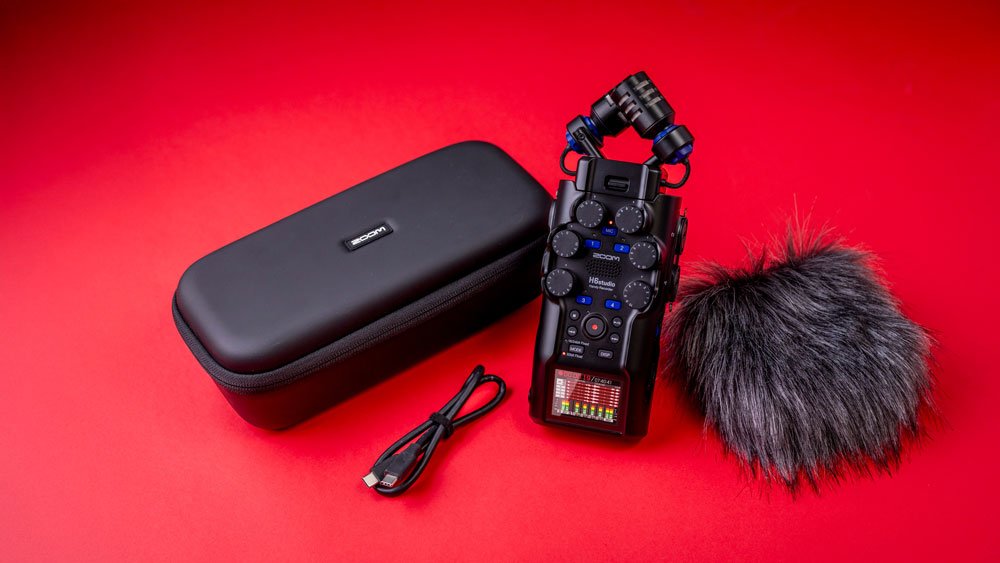

• Optional Accessory Pack: Includes case, windscreen, USB-C cable, and AC adapter

GENERAL SPECIFICATIONS:

• Portable audio recorder with interchangeable mic capsules

• 8-track simultaneous recording

• 6-track simultaneous playback

INPUTS AND OUTPUTS:

• Mic Capsule Input: 1

• MIC/LINE Inputs (Mono): 4 (XLR/TRS combo jacks: XLR 2 HOT, TRS TIP HOT)

• LINE OUT: 1 stereo mini jack

• Headphone Output: 1 stereo mini jack

• Built-in Speaker: 1 mono speaker

XY MIC (XYH-5S) SPECIFICATIONS:

• Stereo Format: 90 XY

• Pickup Pattern: Unidirectional

• Sensitivity: "41 dB/Pa at 1 kHz

• Maximum SPL: 140 dB SPL

• Connector: 1 stereo mini jack

• Input Gain: '∞ " +60 dB

• Input Impedance: 2 kΩ or more

MIC/LINE (MONO) INPUT SPECIFICATIONS:

• Connector: 4 XLR/TRS combo jacks

• Input Gain: '∞ " +60 dB

• Input Impedance MIC: 3 kΩ or more

• Input Impedance LINE: 3 kΩ or more

• Maximum Input Level MIC: +4 dBu

• Maximum Input Level LINE: +24 dBu

• Phantom Power: +48 V

• Equivalent Input Noise: '127 dBu or less (IHF-A) at 150Ω input

OUTPUT SPECIFICATIONS:

• LINE OUT Connector: 1 stereo mini jack

• Maximum Output Level (LINE OUT): +1 dBu

• Output Impedance (LINE OUT): 110 Ω or less

• Headphone Connector: 1 stereo mini jack

• Maximum Output Level (Headphone): 20 mW + 20 mW (at 32 Ω load)

• Output Impedance (Headphone): 10 Ω or less

• Built-in Speaker Type: 20 mm - 30 mm elliptical dynamic speaker

• Effective Maximum Output: 250 mW

RECORDING SPECIFICATIONS:

• Formats: WAV 44.1/48/96/192 kHz, 16-bit/24-bit/32-bit float, mono/stereo

• Supported Formats: BWF, iXML

• Recording Media: microSDHC, microSDXC memory cards

PLAYBACK SPECIFICATIONS:

• Maximum Simultaneous Playback Tracks: 6

DISPLAY:

• Size: 2.00" full-color LCD

• Resolution: 320 - 240

USB INTERFACE:

• Connector: USB Type-C (USB 2.0 High Speed)

• Audio Interface Input/Output Channels: 6 in / 2 out (Multi), 2 in / 2 out (Stereo)

• Sampling Frequencies: 44.1/48/96 kHz (audio interface), 44.1/48 kHz (audio + onboard recording)

• Bit Depths: 24-bit, 32-bit float

• USB Bus Power: Supported

• File Transfer: USB 2.0 High Speed

REMOTE CONTROL:

• Compatible with ZOOM BTA-1 Wireless Adapter

POWER SUPPLY:

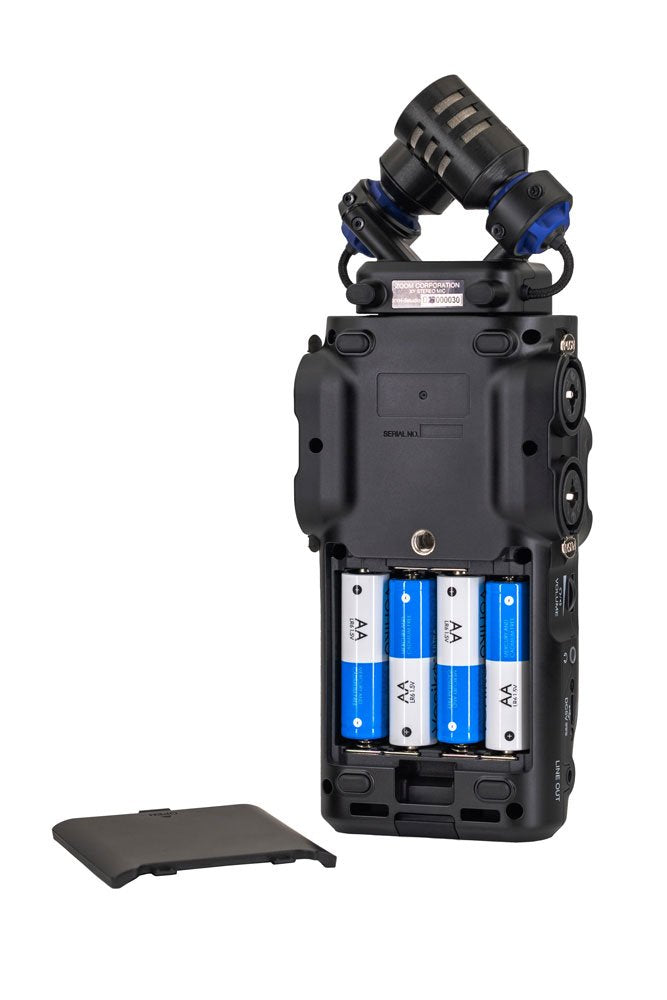

• 4 - AA Batteries (alkaline, lithium, or NiMH)

• AC Adapter: ZOOM AD-17, DC 5V/1A

• USB Bus Power: Supported

BATTERY LIFE (ESTIMATED, VARIES BY USE CASE):

• 2-Track Recording @ 48 kHz/32-bit float, No Phantom Power: Alkaline: ~15 hrs, NiMH (1900 mAh): ~12 hrs, Lithium: ~26 hrs

• 6-Track Recording (XYH-5s + Inputs 1"4), No Phantom Power: Alkaline: ~4.5 hrs, NiMH: ~5 hrs, Lithium: ~11 hrs

• 6-Track Recording @ 192 kHz/32-bit float, Phantom Power On: Alkaline: ~2 hrs, NiMH: ~3 hrs, Lithium: ~6.5 hrs

POWER CONSUMPTION:

• 5 W maximum

DIMENSIONS AND WEIGHT:

• Dimensions: 83.0 mm (W) - 221.0 mm (D) - 54.5 mm (H)

• Weight (including batteries): 477 g

REFERENCE:

• 0 dBu = 0.775 Vrms
